Sensor Configuration and Numbering
SMART MATRIX MTC 2 - 9
Sensor Configuration and Numbering

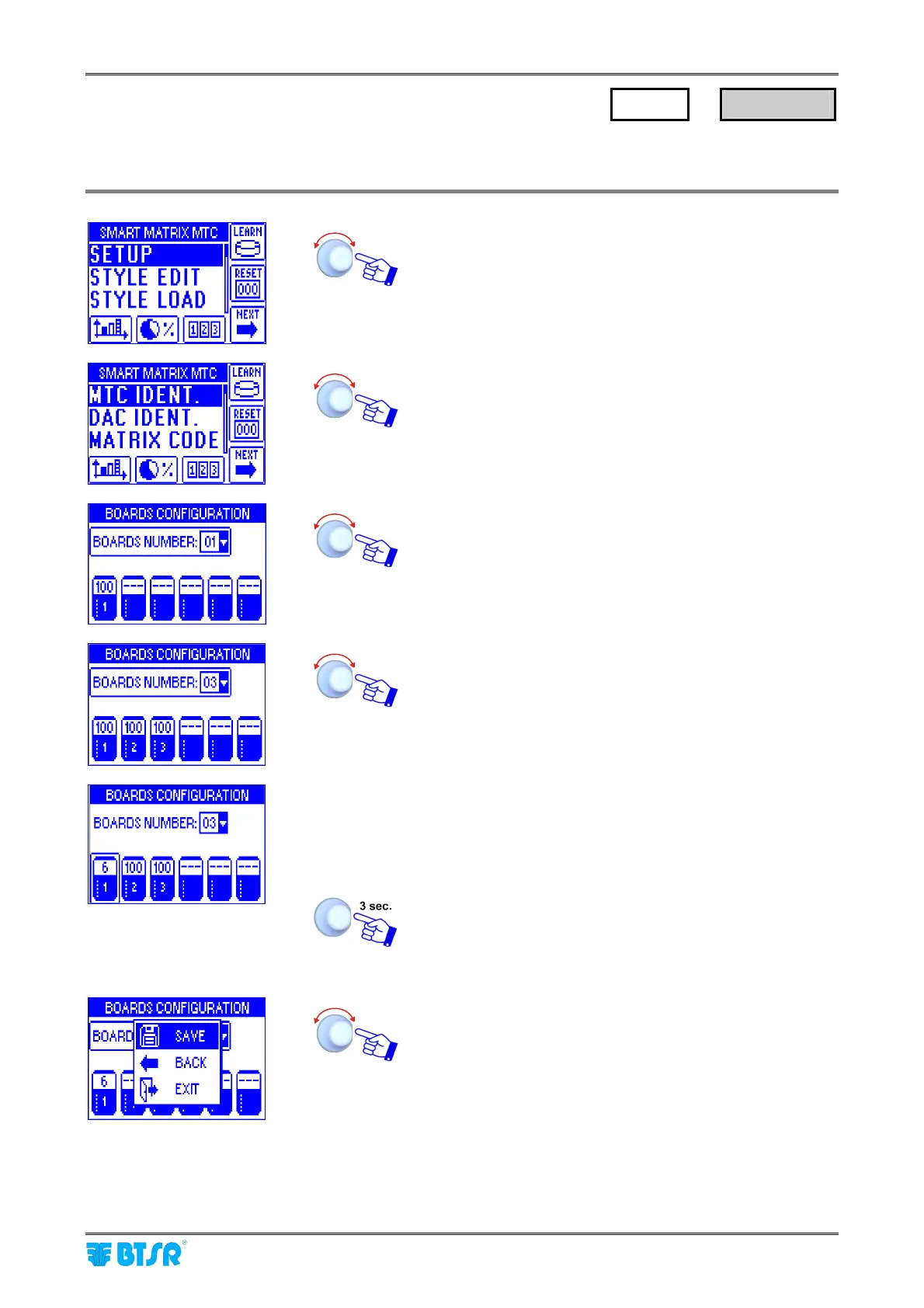

This function allows you to univocally identify each MTC sensor connected to SM-DIN MTC Boards.
Enter the SETUP menu. Entrare nel
Select MTC IDENT.
• Point and select BOARDS NUMBER:
• Set the number of SM-DIN MTC Boards used [1..10] (3
in this example).
• Point the symbol of 1
st
Board.
Select the field indicating the number of sensors connected
to Board 1 (default 100).
• Set the number of sensors actually connected to Board
1 (e.g. 6) and confirm.
• Point the symbol of 2
nd
Board and so on for all the
Boards used.
Once you have configured all the Boards.
For instance, let suppose now to configure an application comprising 6 IS3W sensors only,
SAVE to save the settings.
SETUP
→
MTC IDENT.
