Input/Output Configuration on SM-DIN/Smart Matrix
SMART MATRIX MTC 2 - 14
Input/Output Configuration on
SM-DIN/Smart Matrix
This function allows you to configure the input/output signals of all the SM-DIN Boards (BOARDS option) as
normally open (NO) or normally closed (NC) contacts.
It also allows you to configure the output relay (MATRIX option) of SMART MATRIX terminal as normally
open (NO) or normally closed (NC) contact.

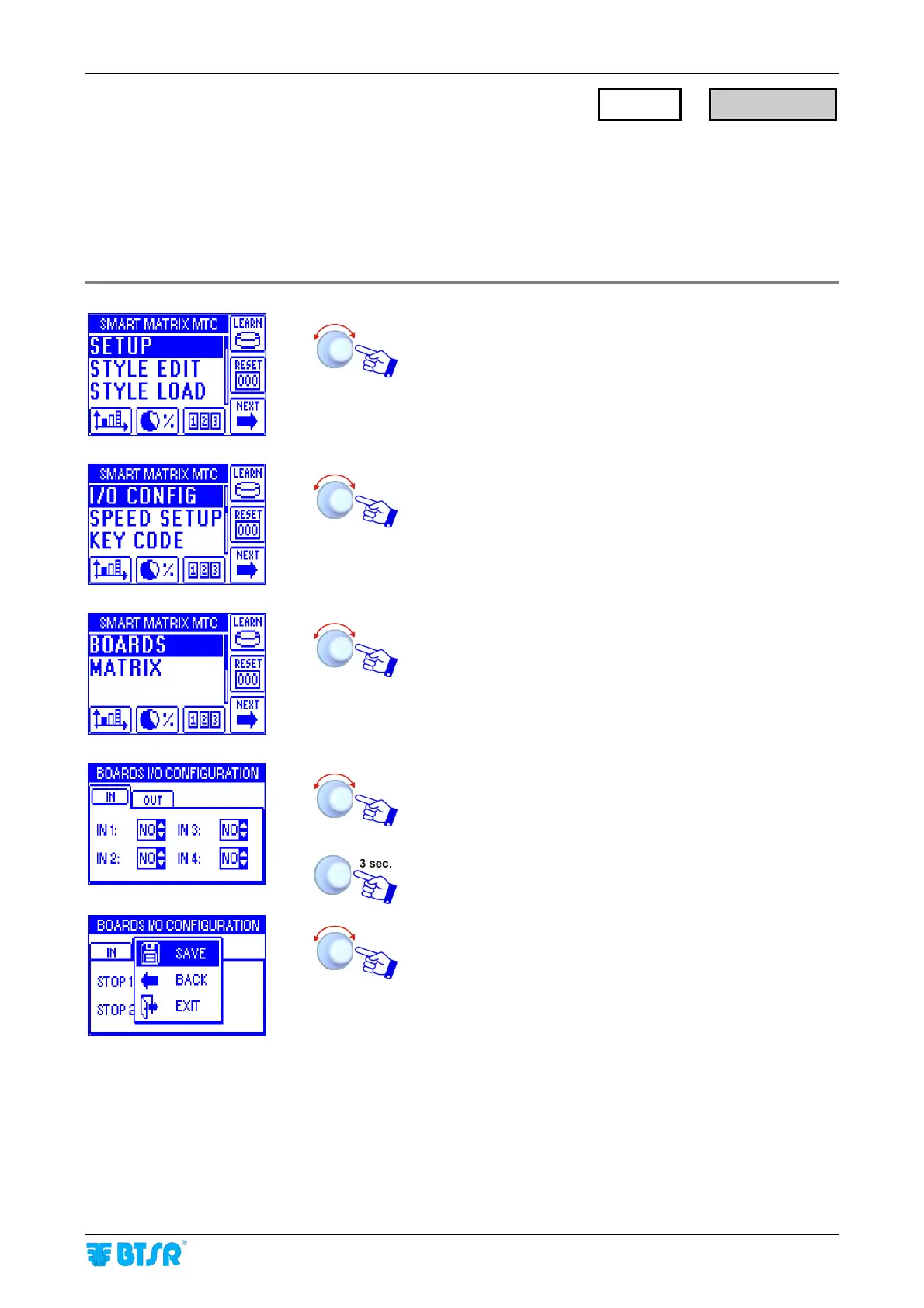

Enter the SETUP menu
Select I/O CONFIG.
Select BOARDS.
Configure the input signals (IN 1, IN 2, IN 3, IN 4) within the
IN window and the output signals (STOP1, STOP2) within
the OUT window, as NO or NC.
To activate the save function.
SAVE to save the choice, BACK to return to the previous
screen without saving, EXIT to return to menu.
SETUP
→
I/O CONFIG
