SMART MATRIX QUILT Operation
SMART MATRIX QUILT 2 - 3

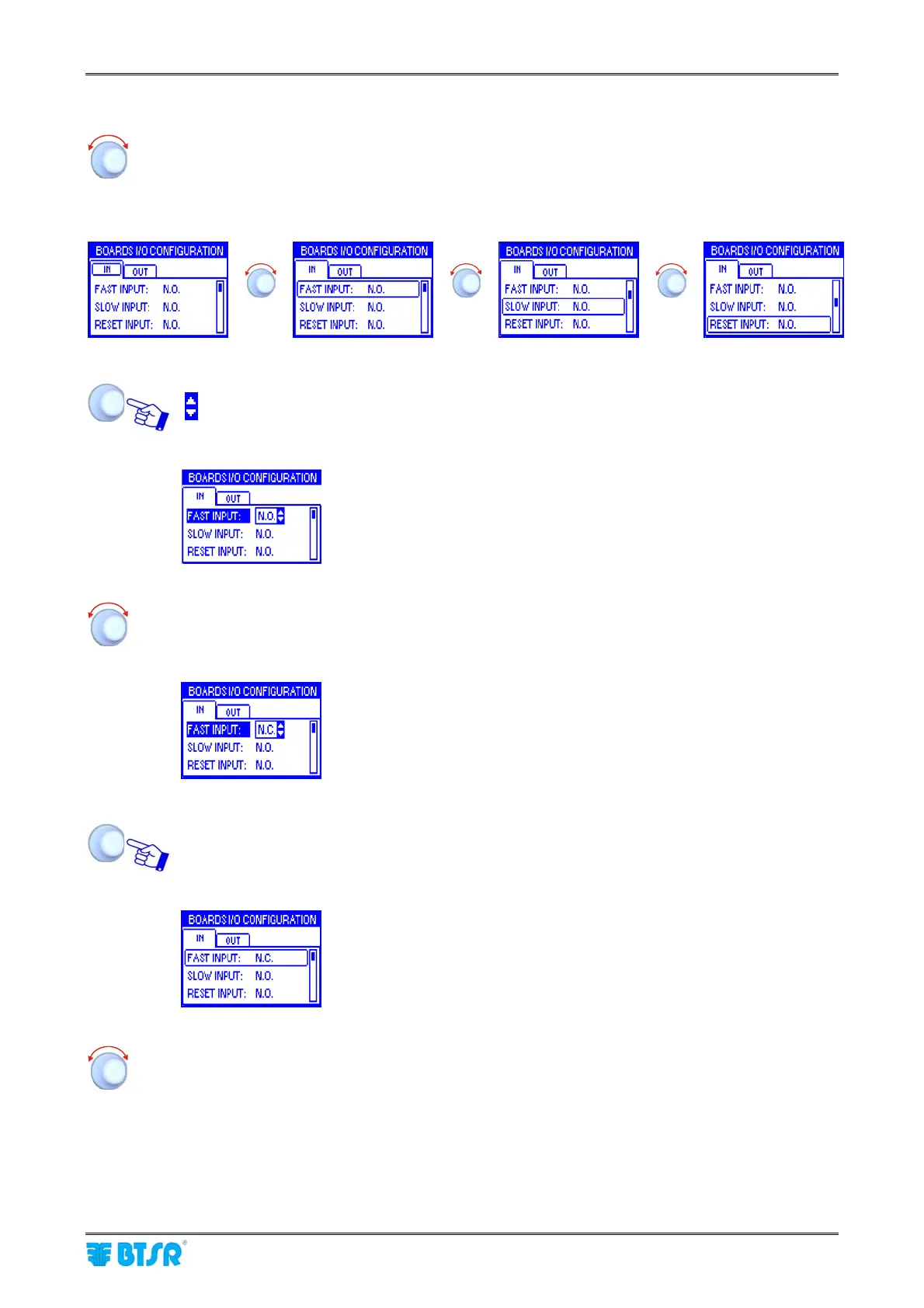

1 – Navigation inside the Selected Window (IN)
Turn the selector to “Point” in sequence the various items of the window
(IN → FAST INPUT → SLOW INPUT → RESET INPUT→ LEARN INPUT→ ZPX INPUT
→ PRX INPUT).
The frame indicates the “Pointed” field.
! !
!
Click to “Select” the pointed item. The field name will be shown in reverse and the symbols:
appear to the right of the field value.
Example:
FAST INPUT field selected (reverse)
Turn the selector either to Clockwise or to Counter-clockwise direction to select the desired
option (NO= Normally Open contact or NC= Normally Closed contact).
Example:
New value of FAST INPUT = N.C.
Once you have set the desired value (e.g. N.C.), click to confirm.
Example:
FAST INPUT field no more selected
Turn the selector to select a new field and so on……
