SMART MATRIX QUILT Operation
SMART MATRIX QUILT 2 - 4

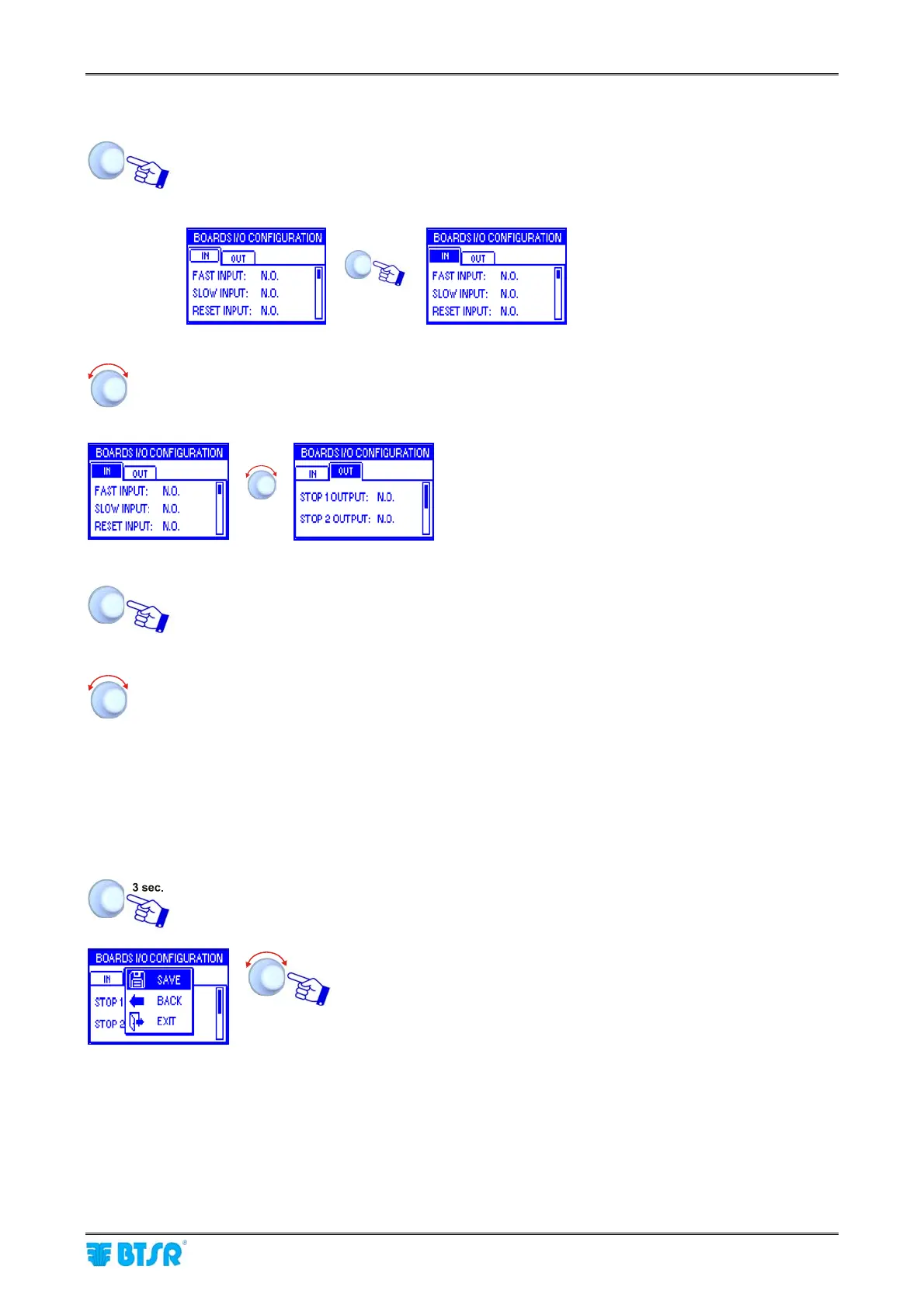

2 – Windows Swap
Turn the selector to “Point” the label of the current window (IN) and click to select it.
Example:
!
Label IN highlighted
Turn the selector to “Point” the OUT window
(IN → OUT).
!
Label OUT highlighted
Click to select the OUT window and enable the access to its parameters.
Select the desired parameter as explained on previous paragraph:
1 – Navigation inside the Selected Window (IN)
3 – Parameters Saving
Once you have setup all the desired parameters, within a determined function, press and
hold down 3 seconds the rotary selector.
SAVE to save the settings
BACK to return to previous screen without saving
EXIT to return to menu without saving
