Style Programming (TS5/TS7)
SMART MATRIX QUILT 2 - 29

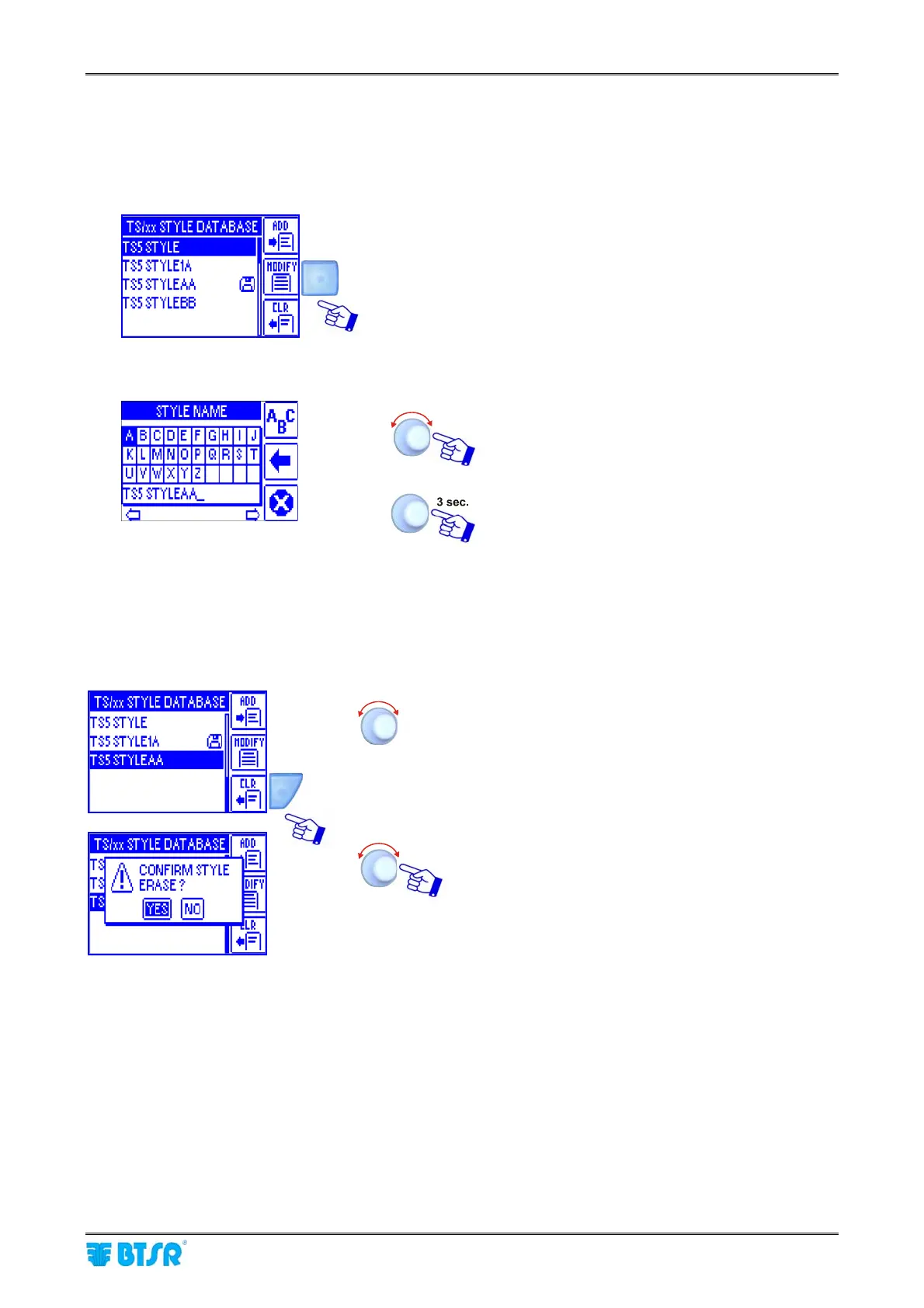

Style Modify
The Style Modify function is basically identical to the Programming a New Style function.
The main differences are the following:
1) once you have activated the STYLE EDIT window from Main menu, choose from the database the style
you want to modify (e.g. TS5 STYLEAA and press MODIFY
Program all the steps described on Programming a New Style
sequence, to bring all the desired changes with respect to the
reference style: TS5 STYLE.
2) the bottom line of STYLE NAME screen that contains the style name setting keyboard shows the name
of the selected style, to be modified (TS5 STYLEAA).
Type the Name you want to assign to the
modified style.
To save the new style.
! If you change the style currently loaded on specific TS5/TS7 devices (indicated by the diskette
symbol) the changes will be automatically loaded on the relevant TS5/TS7 devices.
Style Clearing
This function allows you to remove a style from the database
Once you have activated the STYLE EDIT
function from main menu, choose the style you
want to remove (e.g. TS5 STYLEAA)
Press CLR button
Confirm the operation.
TS5 STYLEAA will be removed from the
database.
! The style currently loaded on sensors cannot be erased !
If you try to erase it, then a warning message “CAN’T ERASE LOADED STYLE!” will appear
