36. See Figure 3-53. Install muffler. See 2.28 EXHAUST
SYSTEM.
37. See Figure 3-54. Connect throttle cables (5) to induction
module/throttle body. See 1.16 THROTTLE CABLE AND
IDLE SPEED ADJUSTMENT.
38. Connect the following sensors:
a. Temperature sensor [90] (3).
b. Oxygen sensor [137] (Install cable strap on harness)
(4).
39. See Figure 3-54. Install the ignition coil (1) and spark
plug wires and connect [83] (2). Tighten ignition coil fas-
teners to 120-144 in-lbs (13.6-16.3 Nm).

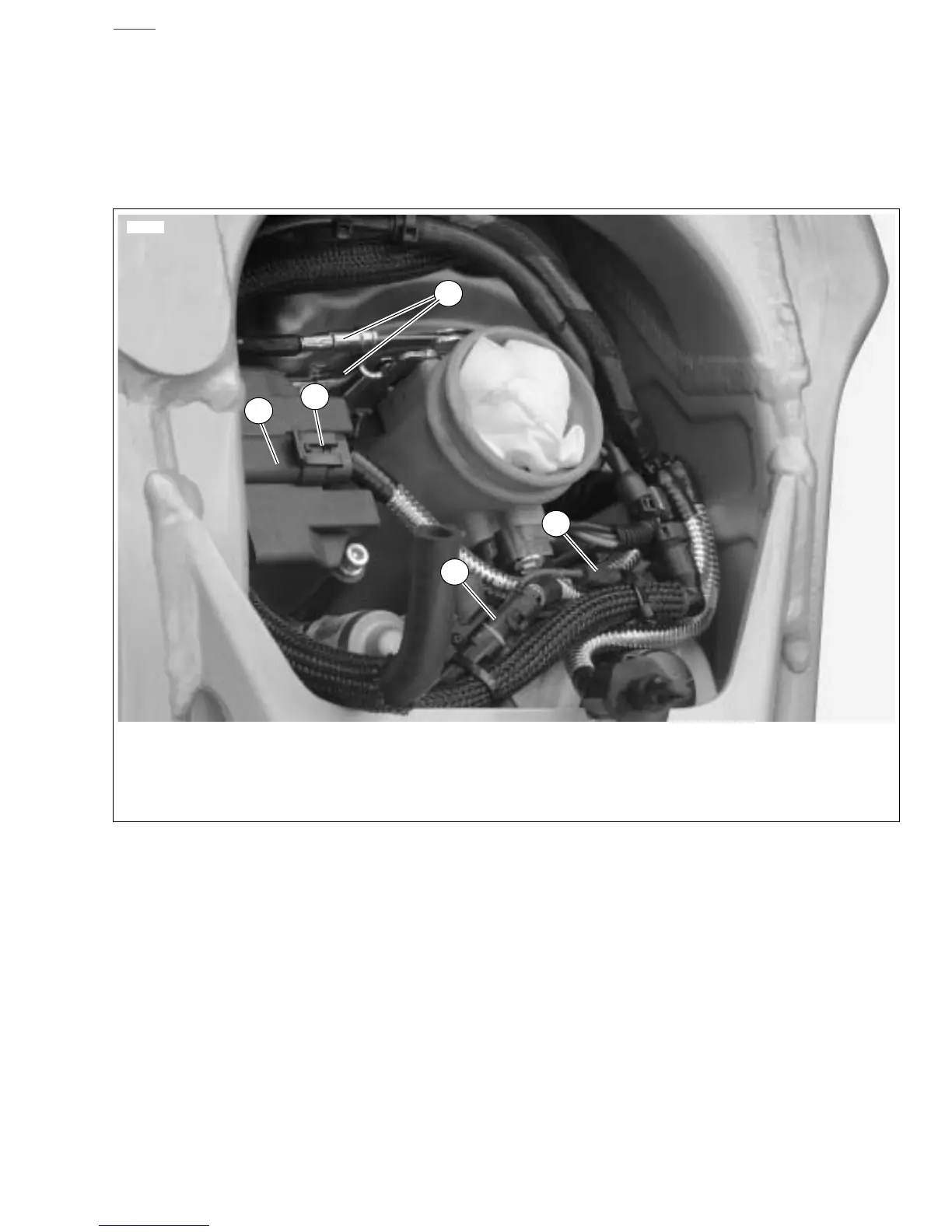

Figure 3-54. Electrical Connections and Throttle Cables (Typical)
1. Ignition coil
2. Coil connection [83]
3. Cylinder head temperature sensor connection [90]
4. Oxygen sensor connection [137]
5. Throttle cables
5
3
2
1
10647a
4
To Next Page
