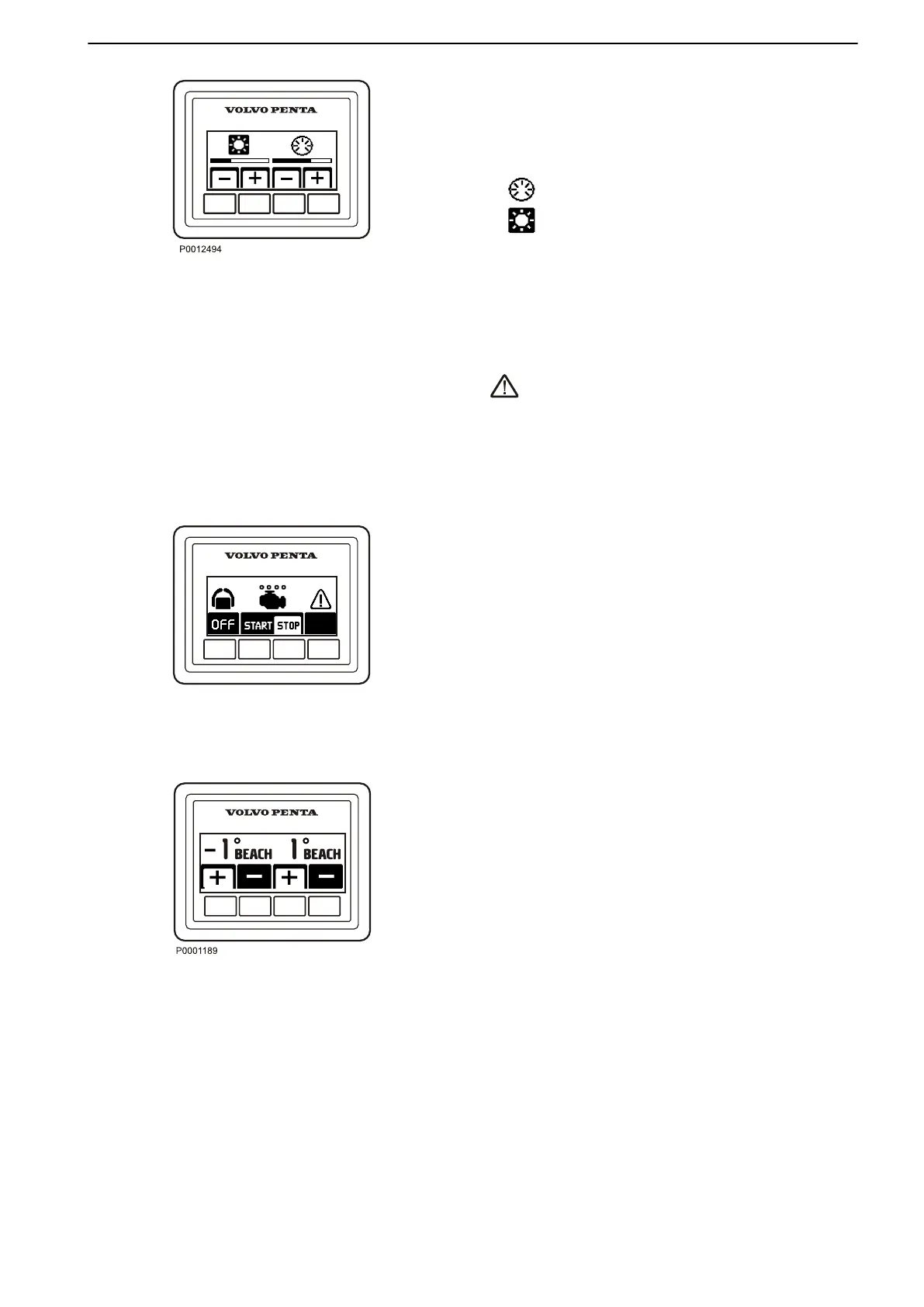

Contrast and backlighting
The button on the far right is used to adjust contrast
and panel backlighting. The button is also used to
confirm fault messages.
Backlighting
Contrast
Press the button to adjust the contrast and the
backlighting.
Use + and – to increase or reduce the contrast or
backlighting.
Adjustments affect all screens in the system.
Fault message
is displayed on the screen when the system
discovers a fault.
All fault messages must be acknowledged.
Acknowledge by pressing the button; if the fault is
accompanied by an audible signal, the signal will be
silenced. Go to the information display to obtain
information regarding the alarm.
Contact a Bukh workshop for a complete readout of
all fault messages.
For further information on how to handle fault
messages and recommended actions, refer to the
Fault Handling, page 67 and Fault Code
Register, page 71 chapters.
Power Trim panel
The Power Trim panel allows you to adjust the angle
of the drive with respect to the transom.
For twin engine installations, the control panel can be
used to make individual or simultaneous adjustments
to the drives.
By trimming out the drive away from the transom, the
bow will be ”raised” in relation to the horizontal axis and
trimming in the drive will ”lower” the bow of the boat
+ Will trim the drive away from the transom, the bow
will be ”raised” in relation to the horizontal axis.
– Will trim the drive away towards the transom, ”lower”
the bow of the boat.
For further information on Power Trim refer to
Instruments and Controls, page 30.
