3.5.1 To Insert/Remove

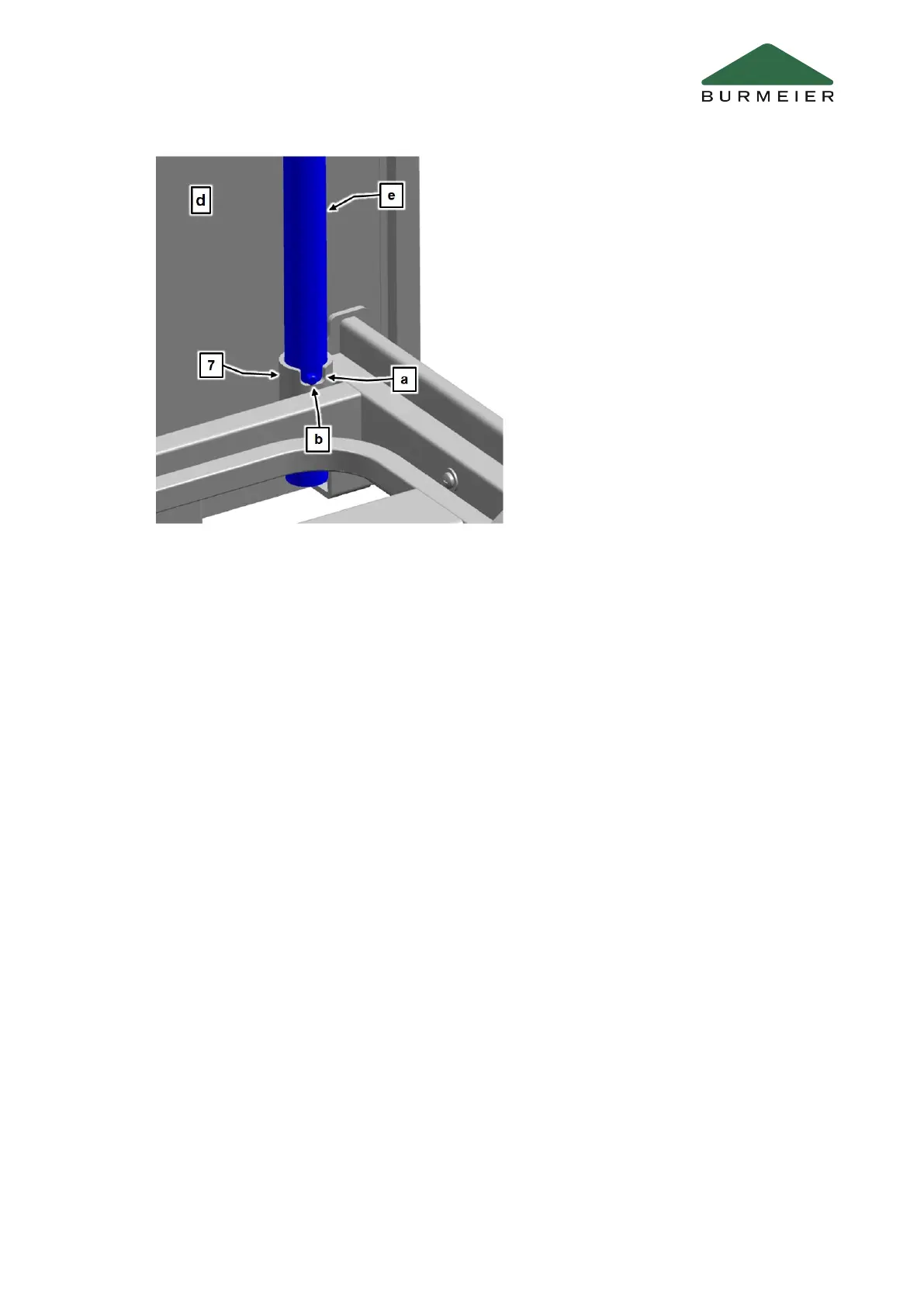

There are two round lifting pole adapter sleeves at each corner of the head end [d] of the
mattress base frame. There is a notch [a] on the top surface of the lifting pole adapter sleeve
that, together with the pin [b], restricts the slewing range [c] of the patient lifting pole. The
lifting pole should be fitted to the side of the bed that the resident uses to get in and out of
bed.
To Insert
•
Insert the lifting pole in the sleeve. The metal pin [b] on the pole must be located in the
sleeve notch [a].
To Remove
•
Pull the lifting pole up and out of the sleeve.
Operation
Part C: Care staff and residents 19
