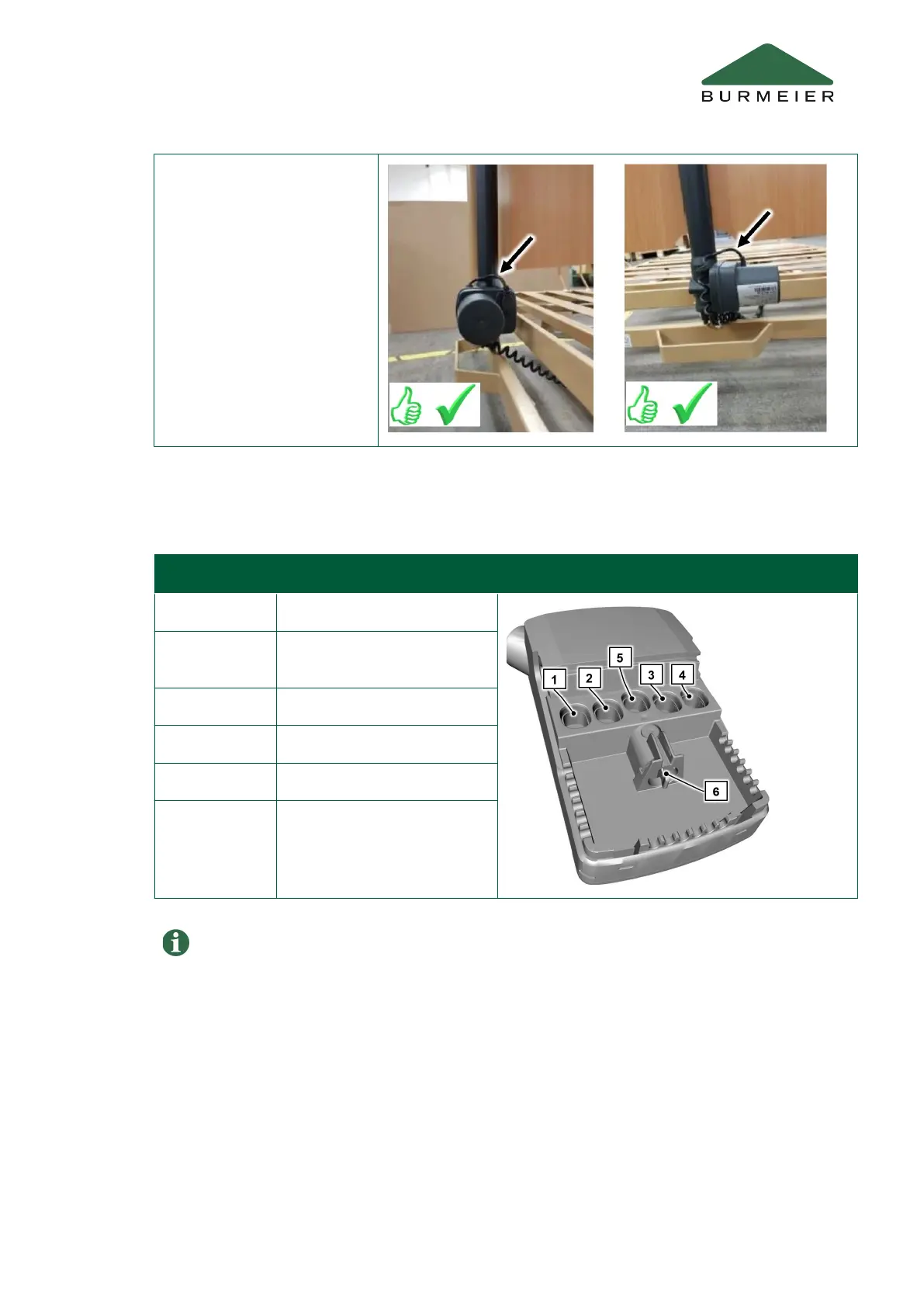

3.7.1 Plug assignment (CBSTI01-V2 and CBSTI01-V3)
Please note: To avoid an incorrect connection of the lifting motors, the cables of the head-
end and foot-end lifting motors are each provided with a number (2 for the head-end lift-
ing motor and 4 for the foot-end lifting motor). These numbers can be found on the con-
necting lines of the lifting motors accordingly. Be sure to compare the numbers on the ca-
bles with the numbers on the lifting motors before connecting them.
Correct cable routing!
The connecting cable is rout-
ed from below over the “rear”
side of the housing and then
plugged in. The plug must be
secured in place with the pull-
out protection.
Plug assignment for drive system with Bluetooth/cabled handset
1 Backrest motor
2 Head end chassis lifting mo-
tor
3 Thigh rest
4 Foot-end chassis lifting motor
5 Power supply
6 Cabled handset
Assembling the Care Bed
Part B: Operator and Technical Personnel 21
