3.6 Safety side

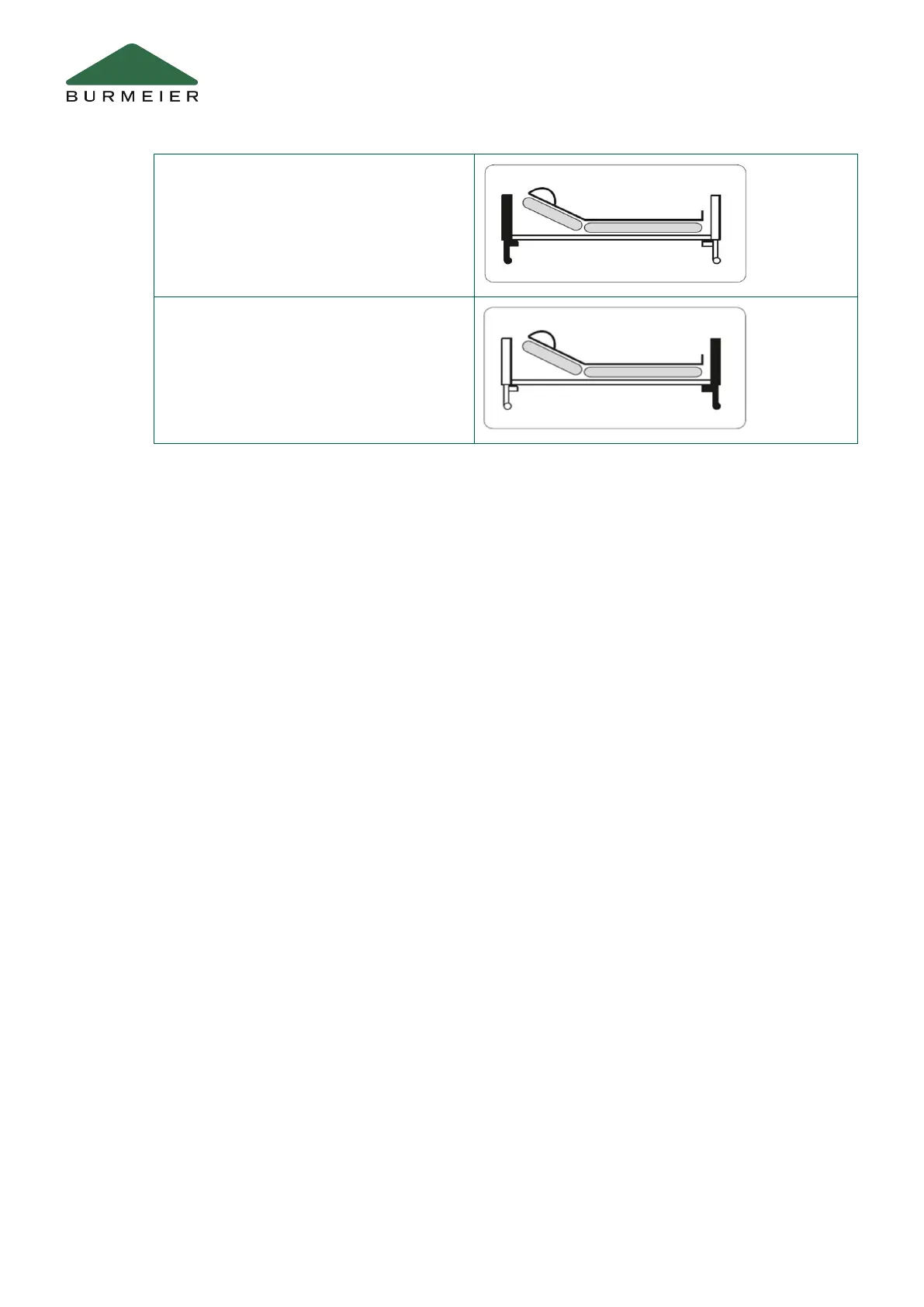

Adhesive label on the head end chassis
Adhesive label on the foot end chassis
Proceed as follows to attach the chassis to the mattress base frame:
1. Loosen both knurled-head bolts which are located adjacent to the two lifting pole adapt-
er sleeves lower down in the mattress base frame. Do not completely remove the
screws.
2.
Connect the head end chassis to the mattress base frame. Make sure that the adhe-
sive labels match!
•
To do so, lift up the mattress base frame at the head end and slide the two con-
nection pieces of the head-end chassis, as far as they will go, into the tubes of
the mattress base frame.
Please note: There must not be more than 5 mm clearance between the mattress
base frame and the corner posts of the chassis.
3.
Tighten the 4 knurled-head bolts by hand. Do not use pliers to tighten them!
4.
Repeat this procedure analogously with the foot-end chassis.
The bed is equipped with either wooden or metal safety sides to prevent the resident from
accidentally falling out of bed. The safety sides are made of bars (wooden or metal) with
plastic end caps and are attached to the bed with a simple click-on system. If necessary, they
can be manually raised or lowered by the carer.
On each chassis (at the head end or foot end) there is one guide rail on the left and one on
the right. A safety side guide runs in each of these guide rails. Each guide has two holding
devices for the bars. The safety side guides are pre-assembled at the factory. The safety side
bars can be attached to the holding devices quickly and with little effort thanks to the simple
click-on system.
Assembling the wooden safety sides
Assembling the Care Bed
14 Part B: Operator and Technical Personnel
