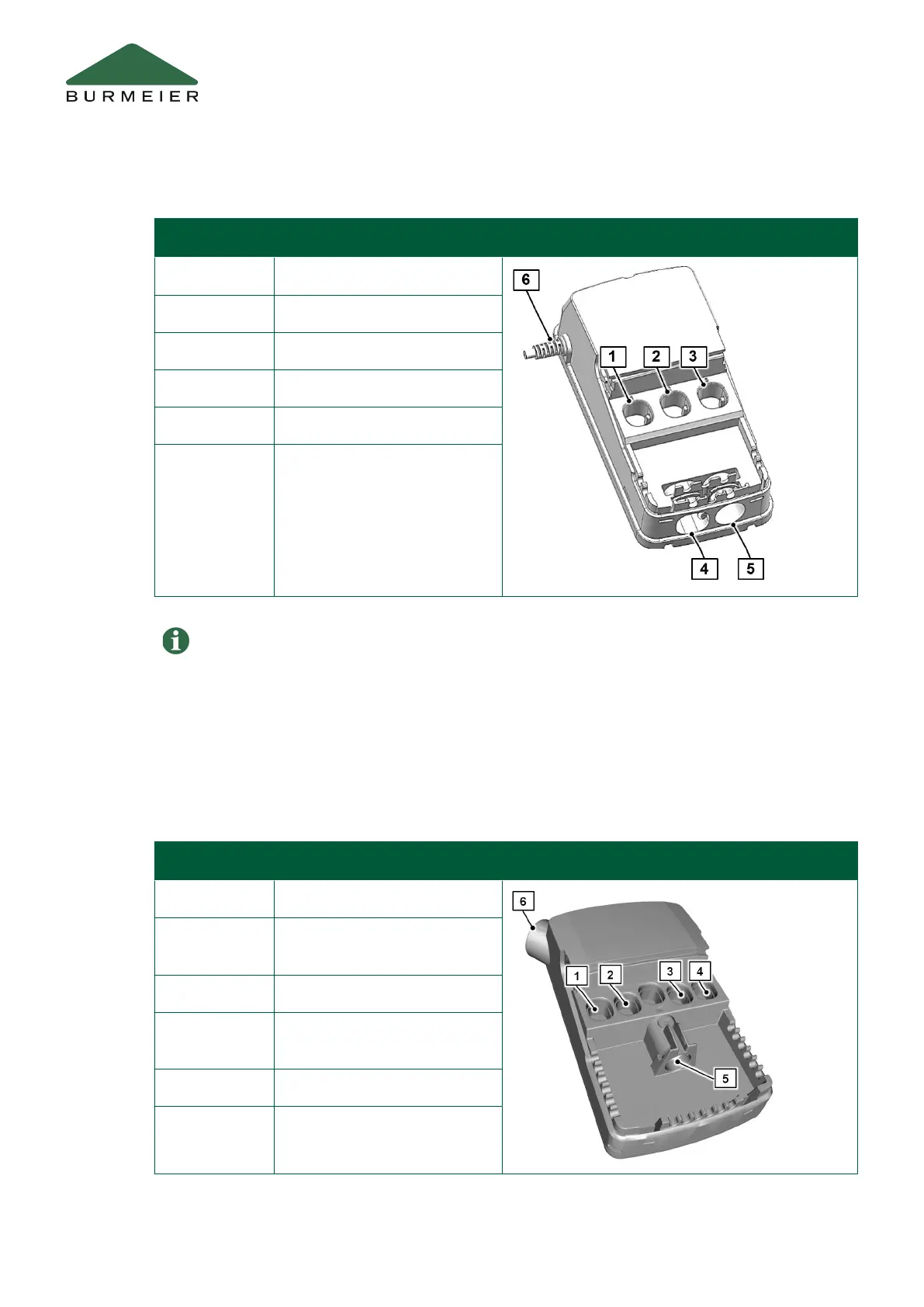

3.7.2 Plug assignment (CA 20)
3.7.3 Connector Assignment (Dali econ/CA 40)
Please note: To avoid incorrect connection of the lifting motors, the cables of the head-
end and foot-end lifting motors are each provided with a number (2 for the head-end lift-
ing motor and 4 for the foot-end lifting motor). These numbers can be found on the con-
necting lines of the lifting motors accordingly. Be sure to compare the numbers on the ca-
bles with the numbers on the lifting motors before connecting them.
Plug assignment for drive system with cabled handset
1 Backrest motor
2 Head-end chassis lifting motor
3 Thigh rest
4 Foot-end chassis lifting motor
5 Cabled handset
6 Power supply (permanently
connected)
Connector assignment for drive system with cable handset
1 Backrest motor
2 Lifting motor chassis head-
board
3 Thigh rest
4 Lifting motor chassis foot-
board
5 Cable handset
6 Power supply
