YAK 130
BVM ©2016 13 Mar. 23, 2016

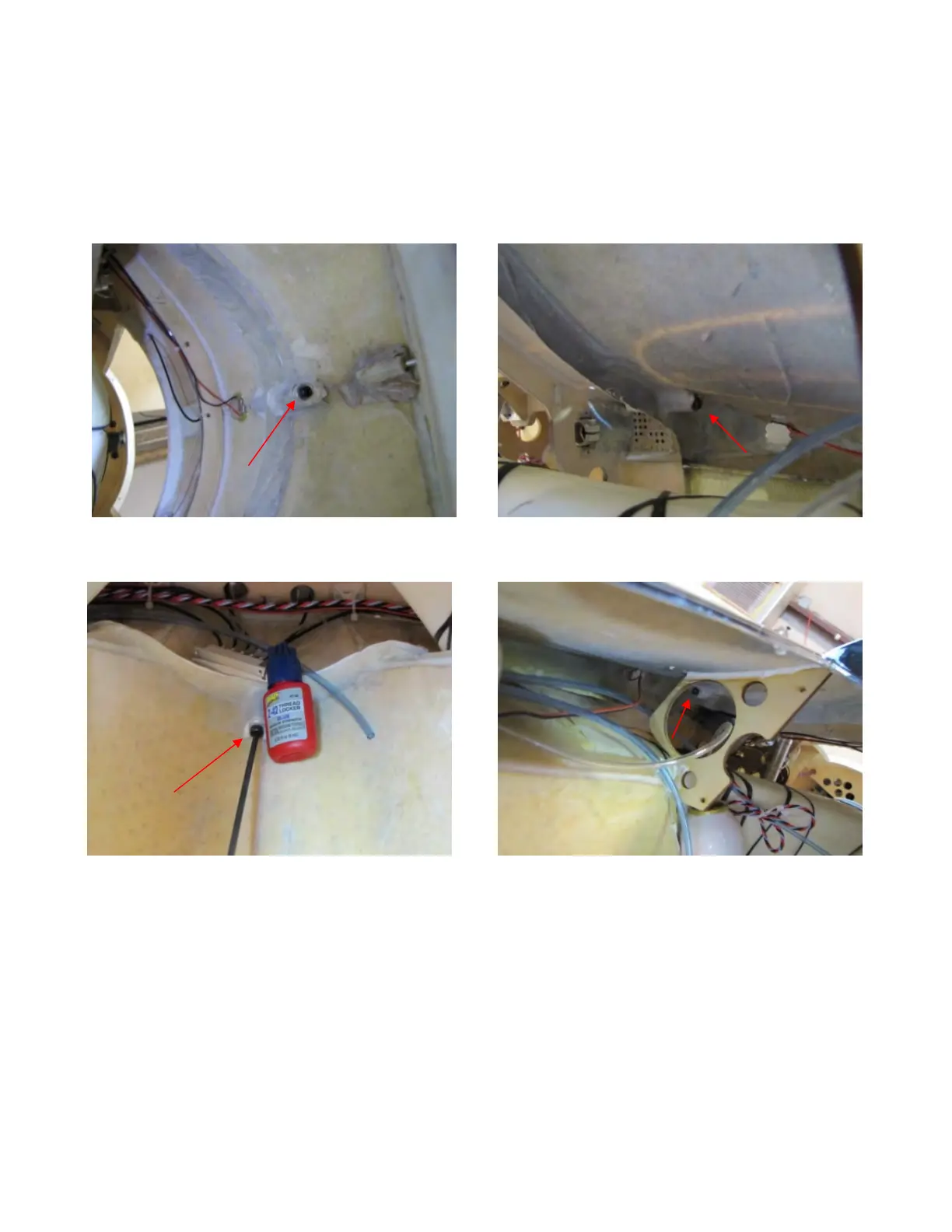

Install the (4) 3mm x 14mm SHCS from the forward side of the fuse half. Access is
through the Cockpit opening. Use a drop of Z-42 on each SHCS.
NOTE: Both air storage tanks have been pushed aft at this time to get access to the bolts at
the 3 and 9 o’clock positions.
12 o’clock 3 o’clock
6 o’clock 9 o’clock
