YAK 130
BVM ©2016 22 Mar. 23, 2016

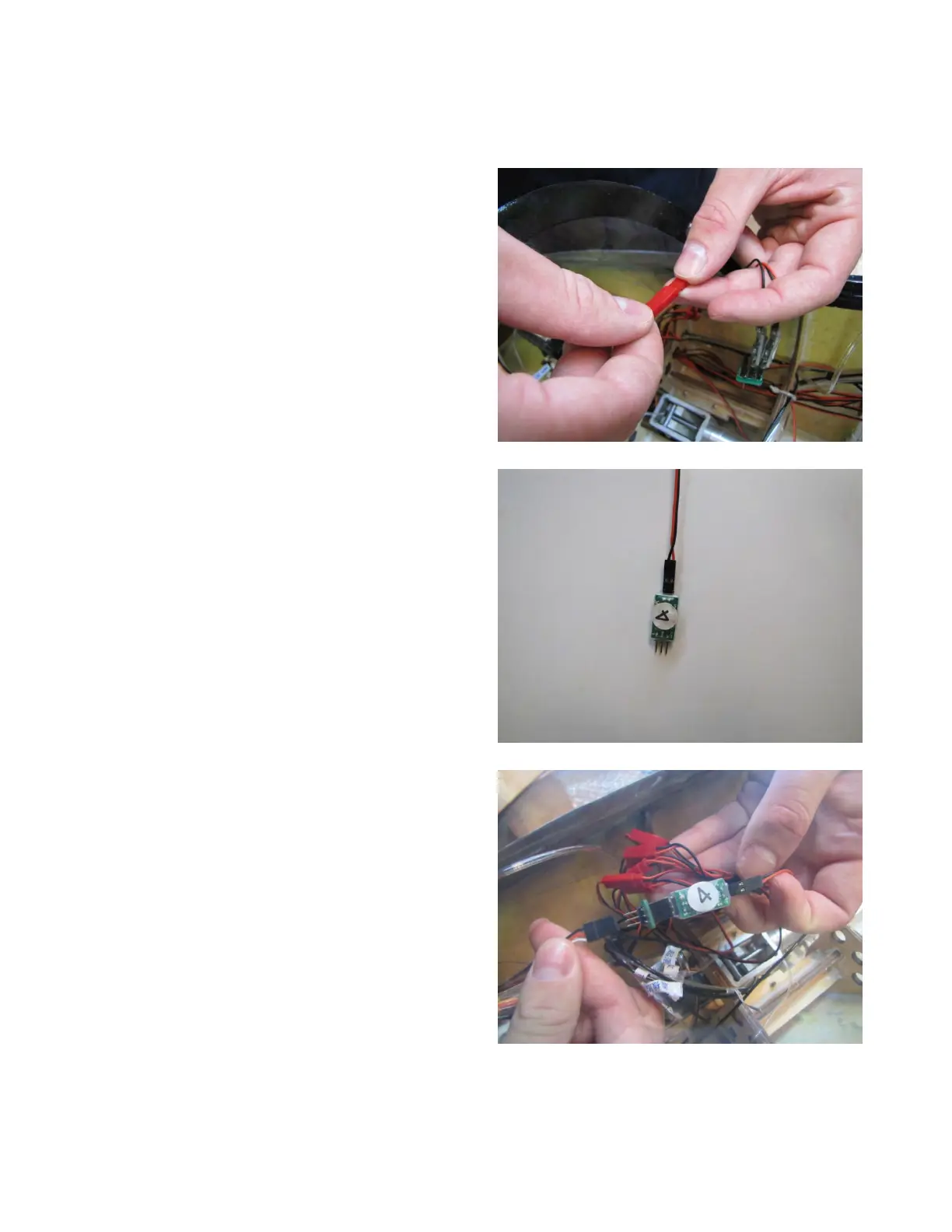

Locate and connect the Nose Gear Landing
Lights wire to the matching JST RCY
connector coming off the #2 circuit board.
Locate the single #4 circuit board and route
the wires using the same methods as the
previous wire sets.
Connect this set to the remaining(open) slot
on the common circuit board along with the
#4 and #2 bundles..
Locate the servo lead wire from the “LED”
slot on the Central Controller and connect it
to the common circuit board containing the
#2 and #4 circuit boards.
To Next Page
