Screwanutwithseal(5/4"/3/4")ontoboththeoutlet
and inlet of the Multiblock.

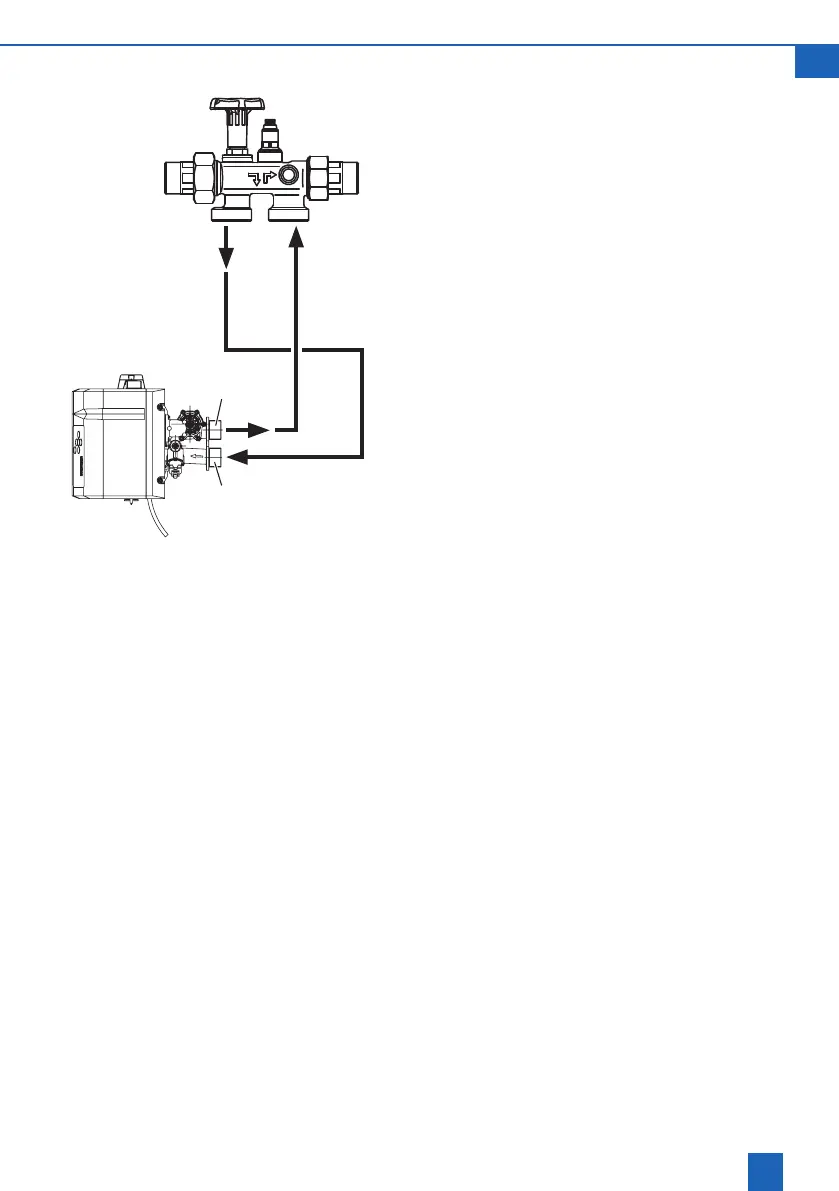

Connect the product to the multi-target lter as
shown in the schematic diagram opposite.
ConnecttheexiblehosetotheMultiblockoutlet
and then make a watertight connection to the prod-
uct water inlet (8).Observethearrowsindicating
thedirectionofow!
ConnecttheexiblehosetotheMultiblockinletand
then make a watertight connection to the product
water outlet (7).
Routetheushingwaterhosetothesewagesys-
temconnection(drain)ataninclineandsecurethe
hoseendwiththexingmaterialsupplied.Attach
theushingwatertothesewagesystemconnection
at least 20 mm above the highest possible waste
waterleveltoensureafreeow.
MultiblockX(optional)
Unltered water
to 8
Filtered water
from 7
