2.3 MINISTIL control head 1iD-6iD
The new, patented control head BWT 1iD-6iD will be mounted
to the current complete desalination cartridges BWT MINISTIL
instead of the old control systems.
The display on the 1iD-6iD control system contains intuitive
menu and program functions and an alarm indicating when
the cartridges need to be replaced.

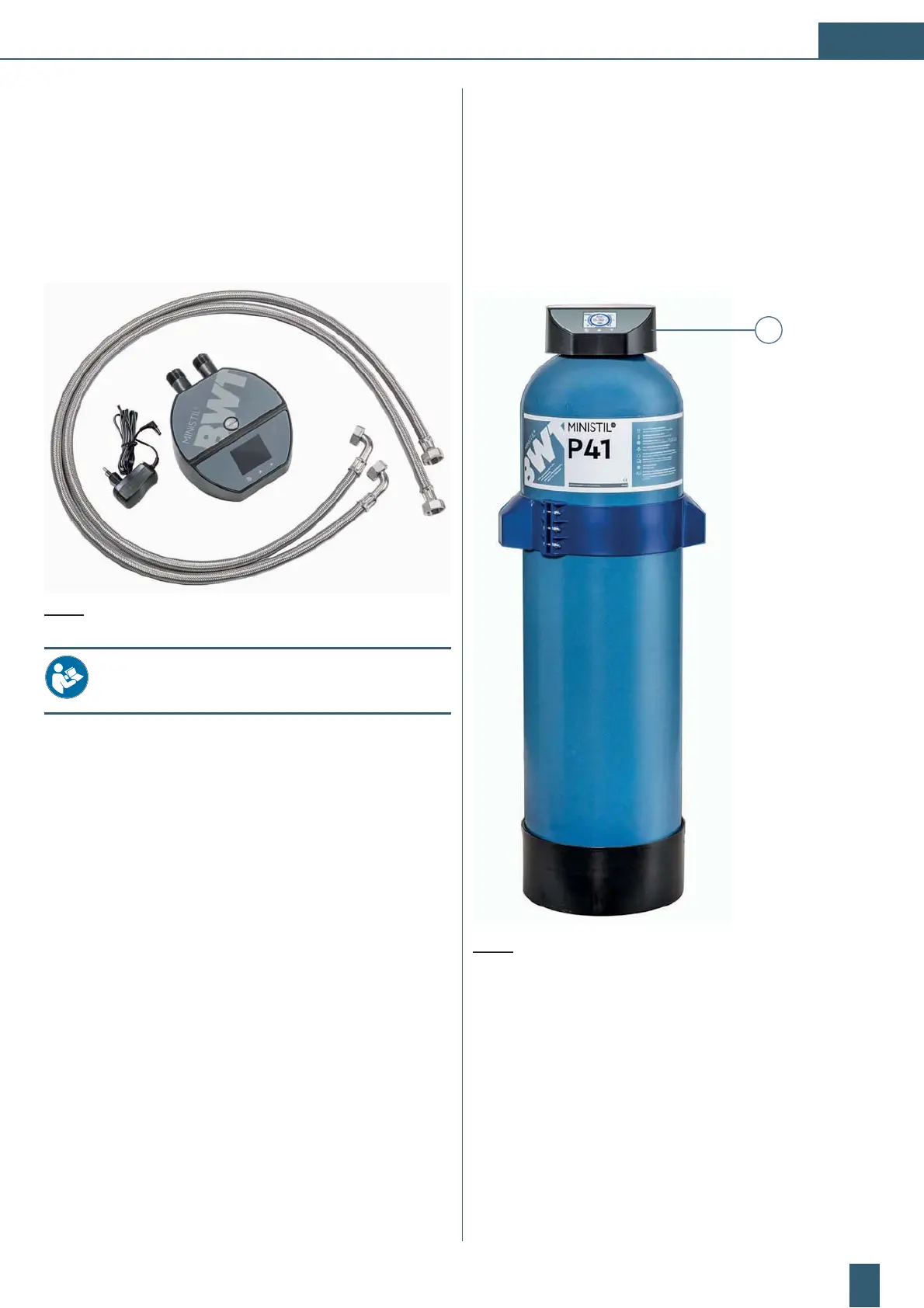

Fig. 3: Control head type 2iD
Info: Further information on the control can be
found in Part 9.1 “Basic design of the control unit“.
2.4 Scope of delivery of BWT MINISTIL
2.4.1 Scope of delivery MINISTIL connection
head type 1 iD complete
1× MINISTIL connection head with digital display
1× power adapter 9VDC
2× connection hoses with screw connections 3/4 “× 1000 mm
1× check valve
1× installation and operating instructions (IOM)
2.4.2 Scope of delivery MINISTIL connection
head type 2 iD complete
1× MINISTIL connection head with digital display
1× power adapter 9VDC
2× connection hoses with screw connections 3/4 “× 1000 mm
1× check valve
1× solenoid valve
1× installation and operating instructions (IOM)
2.4.3 Scope of delivery MINISTIL connection
head type 3, 5 and 6 iD
1× MINISTIL connection head with digital display
1× power adapter 24VDC
2× connection hoses with screw connections 3/4 “× 1000 mm
1× check valve
1× cable outlet 3 m, for potential-free changeover contact
1× installation and operating instructions (IOM)
1
Fig. 4: Control head mounted on MINISTIL cartridge P41
