6.4 Assembly of the pluggable connection
angle on a plastic cartridge
1
4
3
1
2

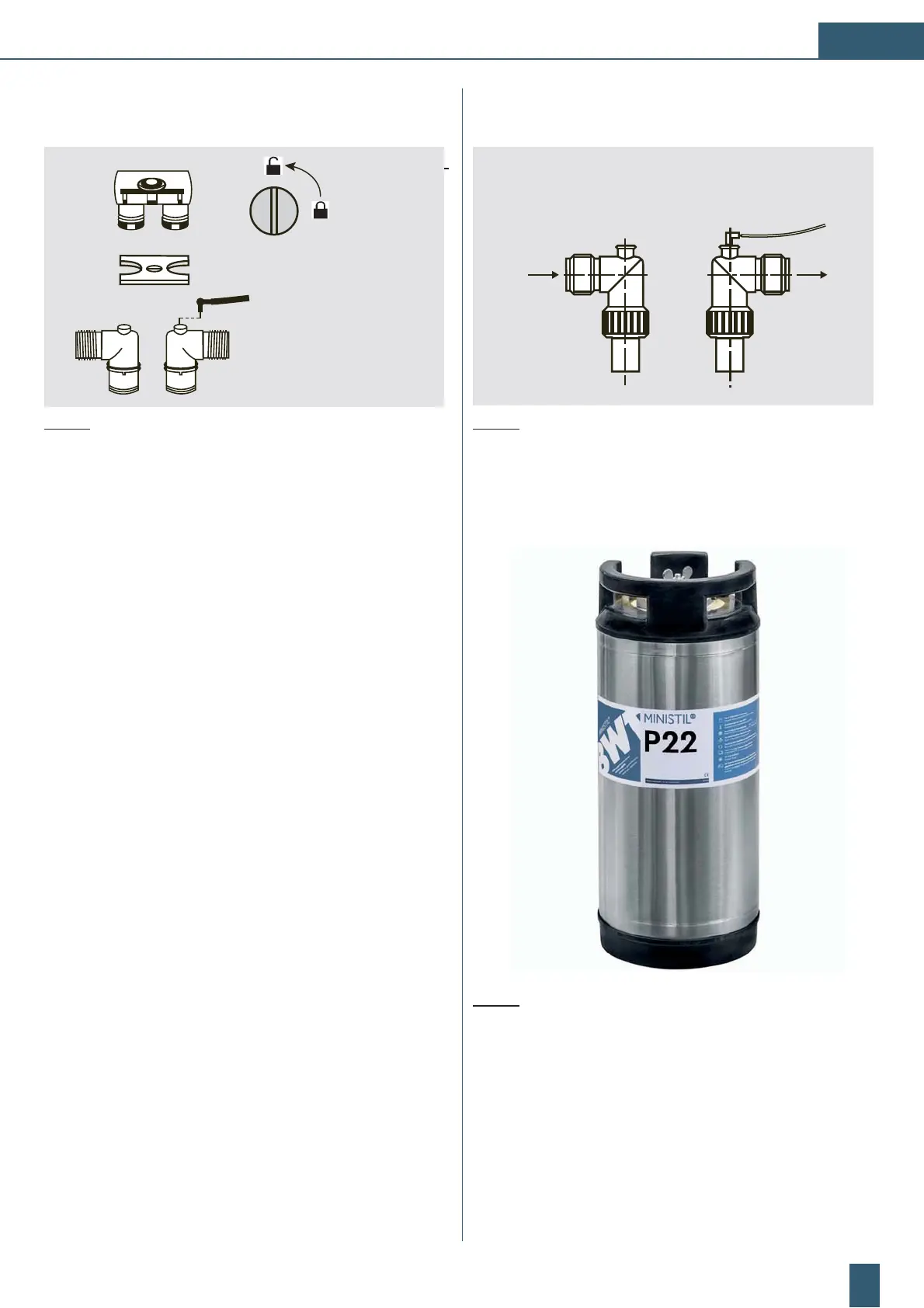

Fig. 13: Pluggable connection angle on cartridge
˳Unlock the transport lock (1) by turning the locking
screw (2) a quarter turn (with a screwdriver or a coin) to
the left.
˳Remove the transport lock.
˳Grease the O-rings of the connection fitting by rubbing
a little Vaseline (if the device is used in the purified water
area, this step is not necessary).
˳Insert the connection fitting (3) into the connection
sleeves of the bottle (the fitting with the conductivity
measuring electrode must always be installed in the
purified water outlet; note the arrow indicating the
direction of flow).
˳Mount the retaining plate (4)
˳Lock the retaining plate and thus the connection fitting
by turning the locking screw a quarter turn to the right.
6.5 Assembly of the screwable connection
angle on a stainless steel cartridge
Cable for digital
conductivity meter
Pure
water
Raw
water
Fig. 14: Screwable connection angle on cartridge
˳Screw on the connection fitting (the fitting with the
conductivity measuring electrode must always be
installed in the purified water outlet).
Fig. 15: Stainless steel cartridge
