BWT MINISTIL P-21 - Hydraulic Connection Details; Hydraulic Connection MINISTIL Connection Head Type 3 iD, 5 iD and 6 iD; Mounting the Connection Head on a Plastic Cartridge

EN
74
6.2.3 Hydraulic connection MINISTIL
connection head type 3iD, 5iD and 6iD

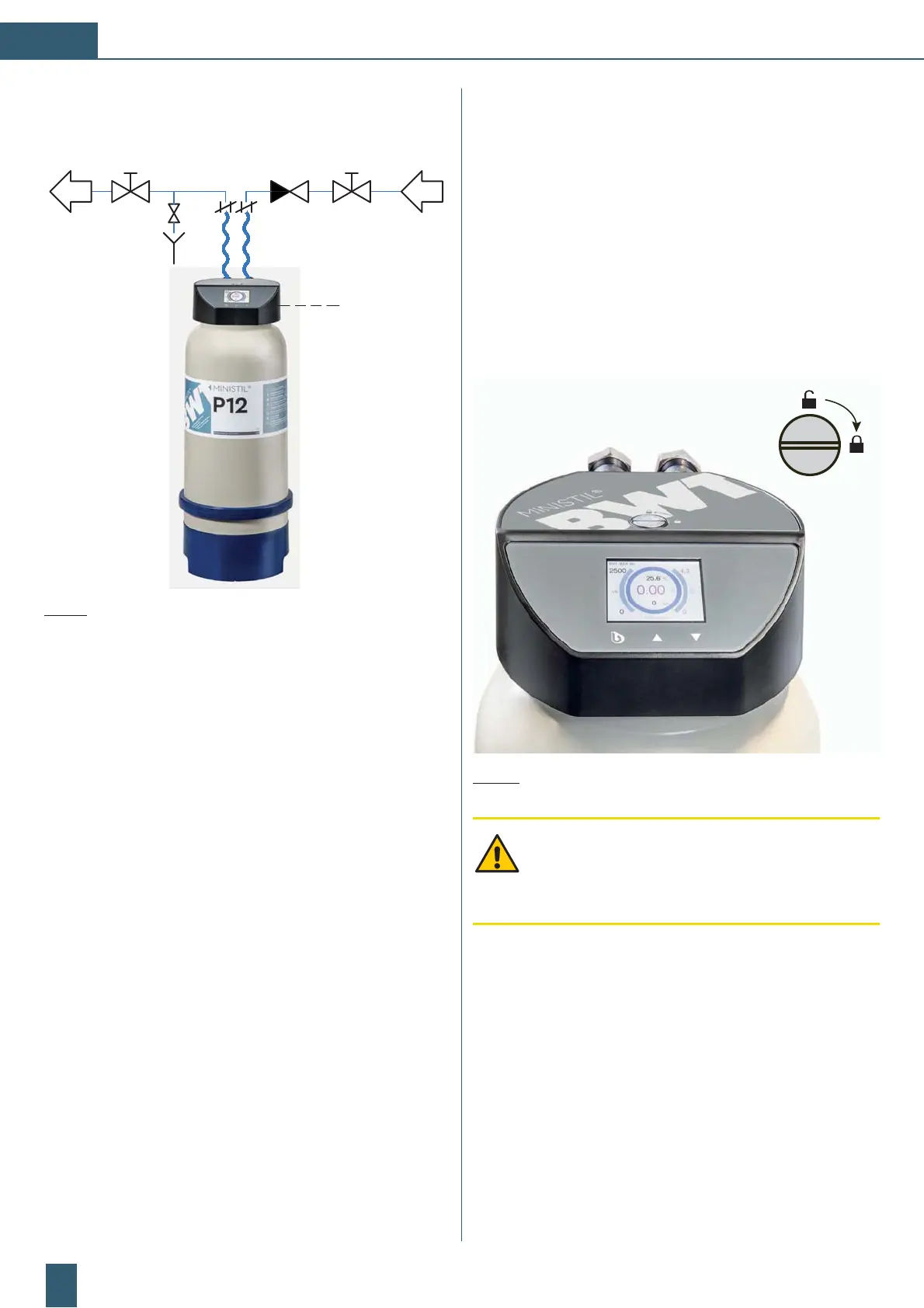

Fig. 11: Installation of connection heads type 3iD, 5iD and 6iD
(1) Vanne d‘arrêt manuelle
(2) Clapet anti-retour
(3) Flexible fabric reinforced connection hose
(4)
Vent valve
(5) Connection head
(6) Manual shut-off valve
(7) Total deionisation cartridge
(8) Electrical connection 9 V DC via mains adapter
6.3 Mounting the connection head on a
plastic cartridge
˳Unlock the transport lock by turning the locking screw a
quarter turn (with a screwdriver or a coin) to the left.
˳Remove the transport lock.
˳Grease the O-rings of the plug connection by rubbing
a little Vaseline on the adapter (if the device is used in
the purified water area, this step is not necessary).
˳Place the adapter on the bottle and press down.
˳Lock the adapter by turning the locking screw a quarter
turn to the right.
Fig. 12: Locking- and unlocking screw
CAUTION: To disassemble/assemble, turn the lock
in the “open/closed” direction.´When making
adjustments, please always work carefully with a
CHF/EUR 2 coin.
9V DC
via adapter
