PRELIMINARY
Document type: Title: Revision date: Revision:
User's Manual (MUT) N1471 4 Channel Programmable HV Power Supply 24/03/2010 1
NPO: Filename: Number of pages: Page:
00112/07:N1471.MUTx/01 N1471_REV1.DOC 38 14
2.5. Rear panel connections
2.5.1. HV Channel Output

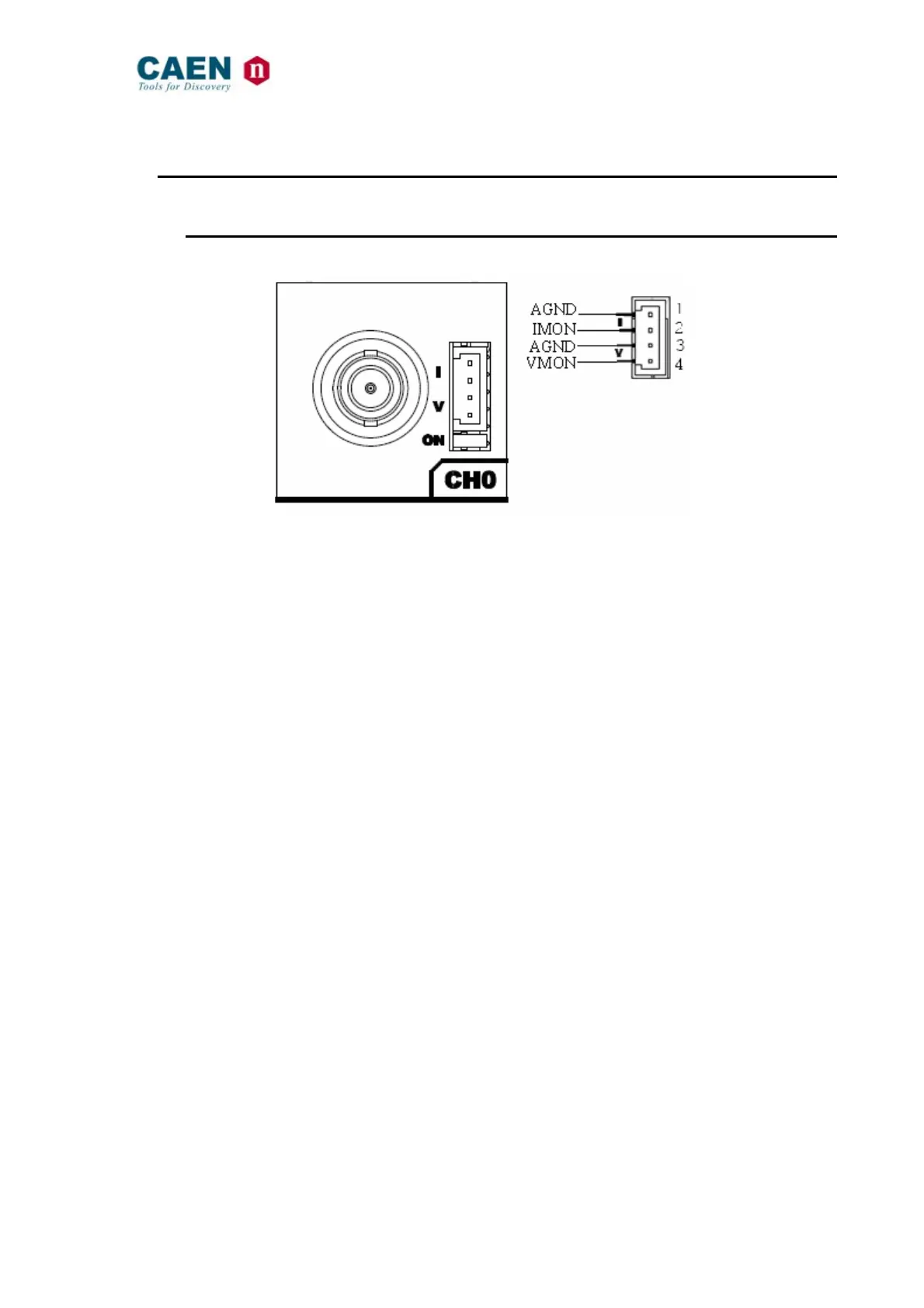

Fig. 2.9: HV Channel panel and test point electrical scheme
NAME: TYPE: FUNCTION:
MON AMP 280371-2
Vout/Iout Test point
OUT
SHV
HV Channel Output
The test points allow to monitor the Channel Output Voltage and Current according to the
following conversion:
VMON: Voltage level (1V = 1.5 kV ±1% readout; same polarity as channel)
IMON: Voltage level (1V = 66 µA ±3% readout; positive, 0÷5 V range)
