3.2.3. Channel settings
In order to operate Output Channel settings:
Turn the TUNE ROTARY SWITCH until the channel number to be set is displayed in the
left upper row (for example Channel 0)
Push the TUNE ROTARY SWITCH: at this point the frame of the left upper row (channel
number) becomes red and the channel is selected

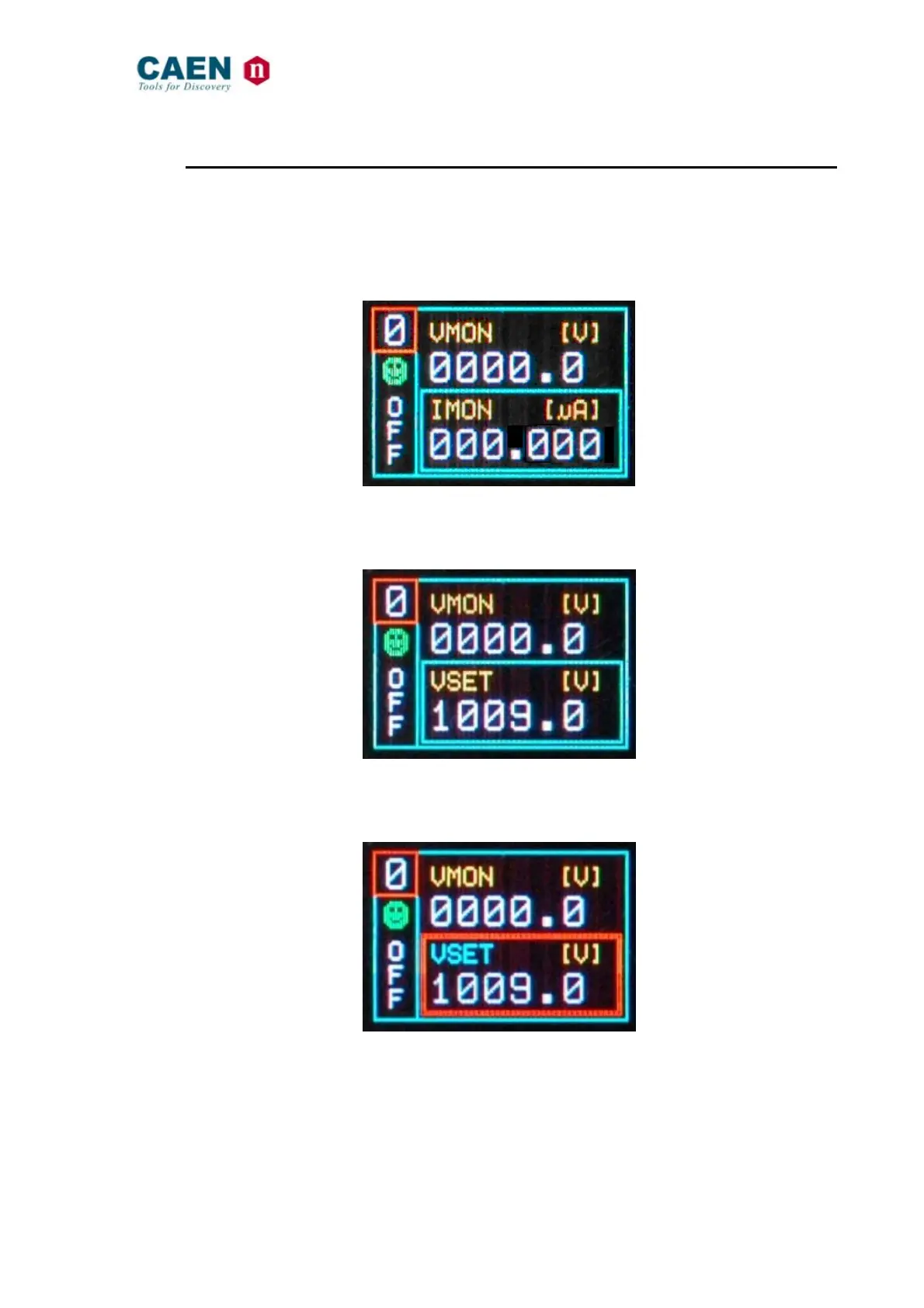

Fig. 3.8: Channel settings edit screen
Turn the TUNE ROTARY SWITCH until the parameter to be set (for example VSET) is
displayed in the right lower row
Fig. 3.9: Channel VSET select screen
Push the TUNE ROTARY SWITCH: at this point the parameter is selected, its frame is
shown in red and its name in blue; it is now possible to change the parameters value
Fig. 3.10: Channel VSET access screen
Turn the TUNE ROTARY SWITCH until the value digit to be edited is shown in blue, the
parameter name in yellow
