3. Operating modes
Module control can take place either locally, or remotely, via USB or RS485 (see § 3.3).
3.1. Programmable parameters
3.1.1. Boards parameters
General board parameters (CONTROL can be operated both in LOCAL and REMOTE mode;
other monitor and settings are
allowed in LOCAL mode only; see § 3.2.2) include:

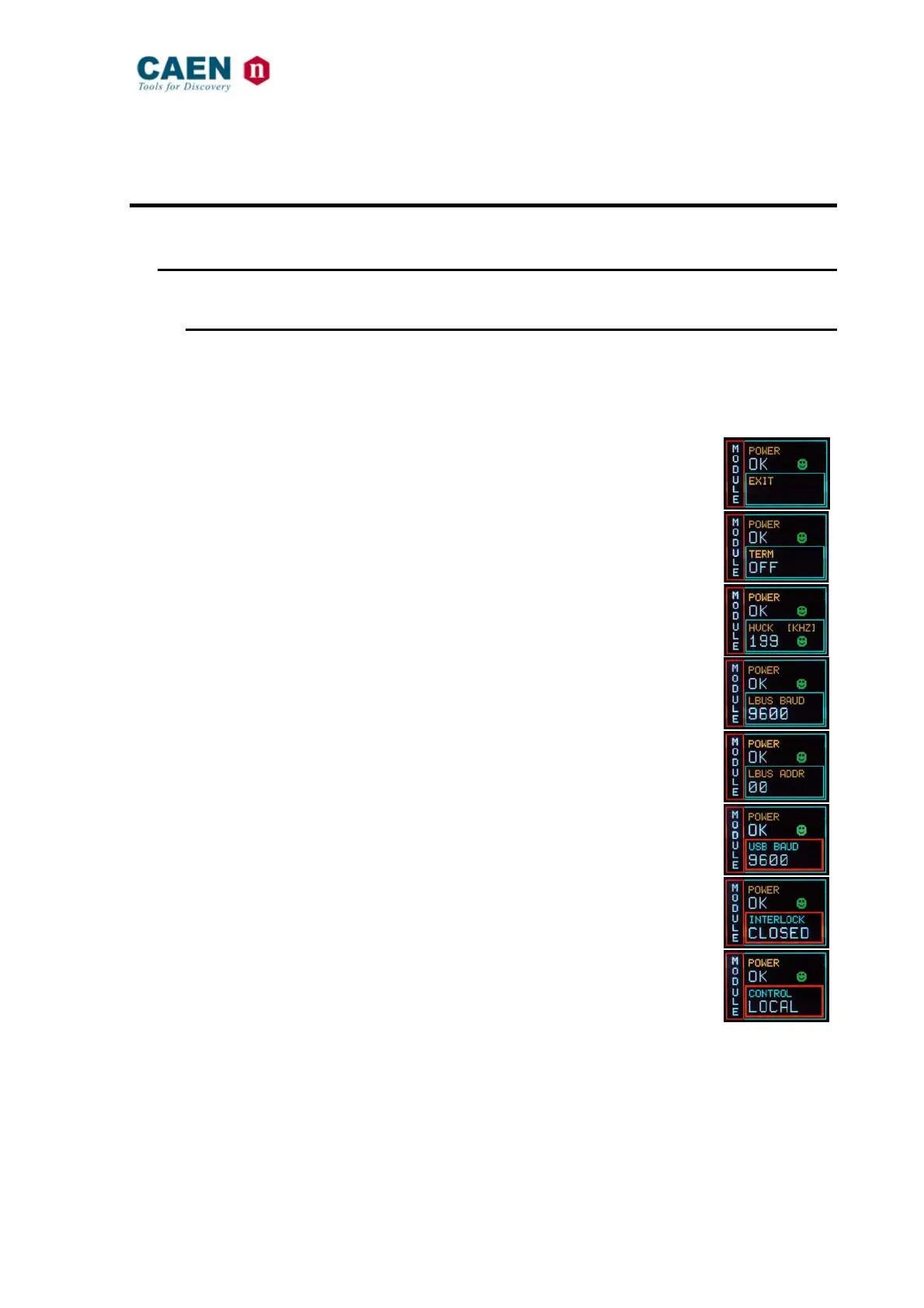

Parameter: Function: Display:
Power
(Monitor)
Module power supply status
Termination
(Monitor)
Local Bus termination status (ON/OFF)
HV Clock
(Monitor)
Sync clock frequency (200±10 kHz correct value)
Local Bus
Baud Rate
(Monitor/Set)
9600, 19200. 38400, 57600, 115200 Baud
Local Bus
Address
(Monitor/Set)
Local Bus address for remote communication (0÷31)
USB Baud
Rate
(Monitor/Set)
9600, 19200, 38400, 57600, 115200 Baud
INTERLOCK
(Monitor/Set)
CLOSED / OPEN OPERATION (see § 2.4.3.2)
CONTROL
(Monitor/Set)
REMOTE: the module is controlled remotely; local monitor is allowed;
LOCAL/REMOTE switch is enabled
LOCAL: the module is controlled locally; remote monitor is allowed
