Installing the E5-400 Fan Tray
Installing the Fan Tray Filter
The installation kit includes a replaceable fan tray filter that must be inserted into the fan tray
module, in the space directly to the right of the fans.
Note: The fan tray filter is designed for use in indoor or office environments. For remote
cabinet mounting, the fan tray filter must be removed.
Note: Install the fan tray filter before installing the fan tray into the E5-400.
To install the fan tray filter
1. Remove the filter from its packaging.
2. Insert the filter into its slot on the right side of the fan tray housing. Push the filter firmly

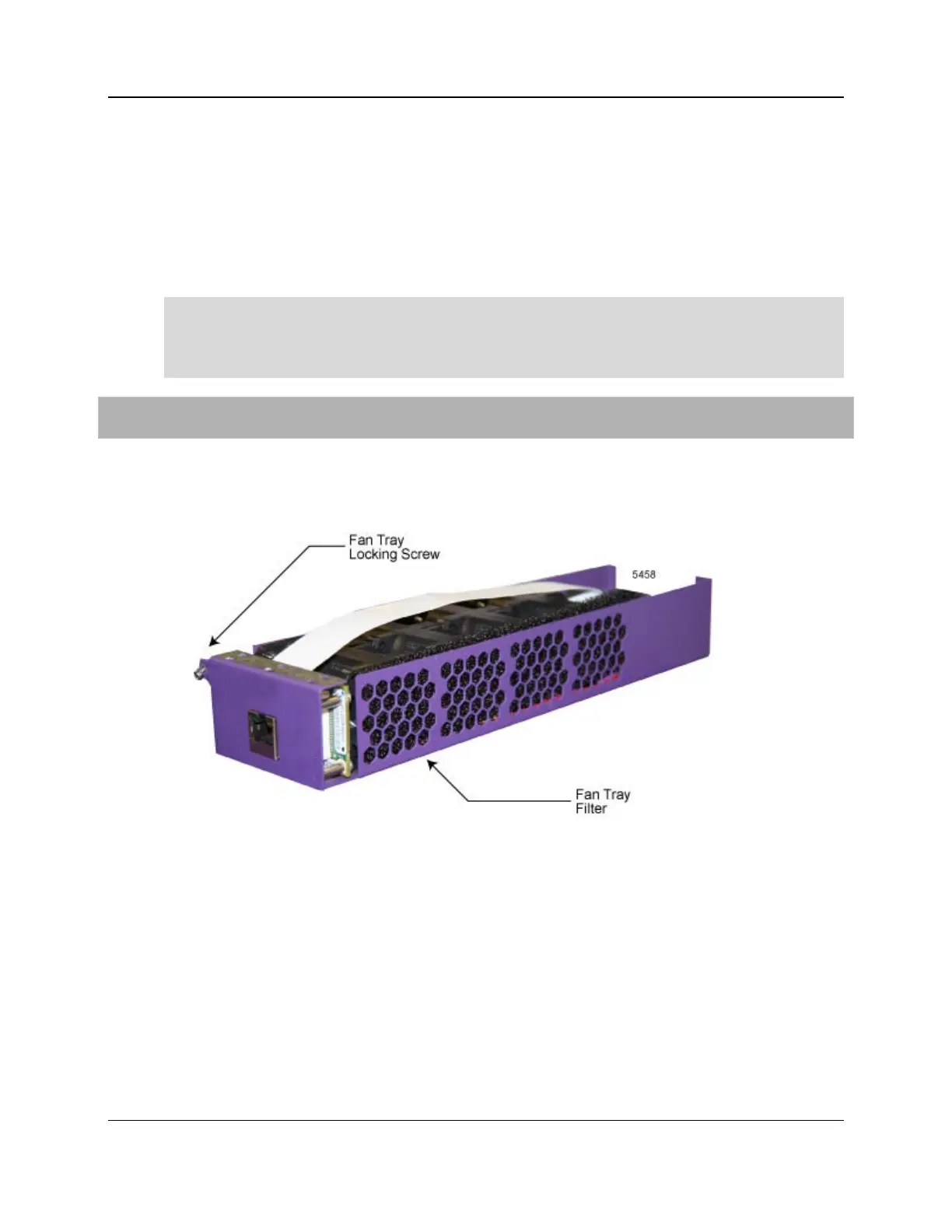

to seat it. See the illustration below for filter location.

Calix E5-400 Specifications

General

Model	E5-400
Type	Network Router
Max Throughput	4 Gbps
Wireless	No
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Management	SNMP
Ports	4 x 10/100/1000 Mbps Ethernet
Humidity	5% to 95% non-condensing
