Introducing the Calix E5-400
The Calix E5-400 Ethernet transport and aggregation platform is an environmentally
hardened, small form factor (SFF) product that aggregates IP/Ethernet-based services onto
1x Gigabit-Ethernet (1GE) or 10GE network links.
Equipped with (4) 10GE and (12) GE Ethernet ports, each E5-400 unit can aggregate up to
64 Gbps of traffic and can be deployed in co-located pairs for path and service redundancy.

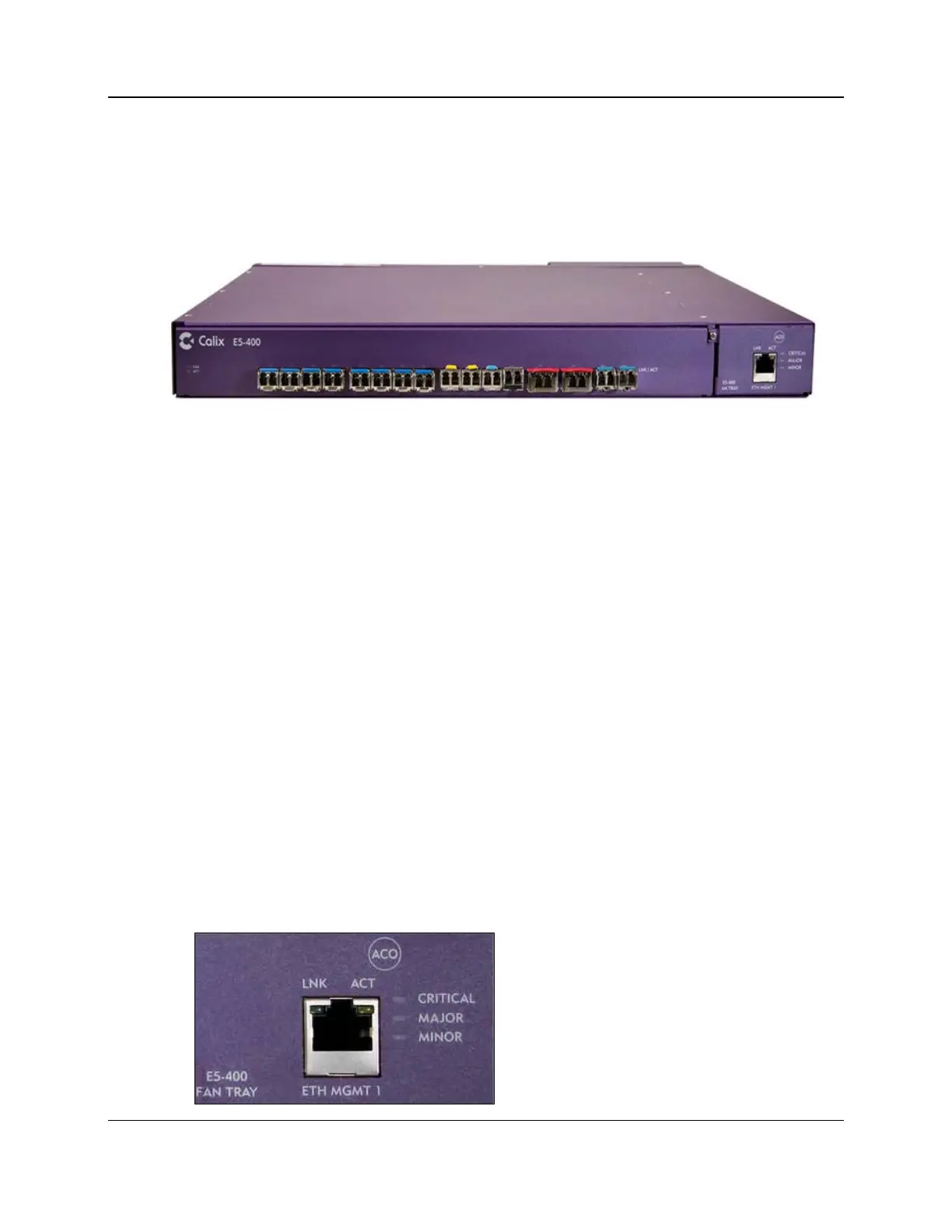

The Calix E5-400 front panel
The E5-400 front panel is equipped with the following Ethernet line interfaces:
(12) GE Small Form-Factor Pluggable (SFP) ports (SFP1 to SFP12)
(2) 10GE SFP+ ports (SFP+1 and SFP+2)
(2) 10GE XFP ports (XFP1 and XFP2)
Each port (copper or optical) includes a single LED to indicate an established link and data
traffic activity.
Fan tray assembly
The E5-400 unit is equipped with a fan tray assembly that slides into the front of the chassis.
The fan tray consists of the following controls and indicators:
10/100 Fast Ethernet management port with LNK and ACT LEDs
LEDs displaying Critical, Major, and Minor alarm conditions
Alarm Cut-Off button (ACO) for disabling the alarm signal wired out to an external
audible alarm (buzzer or horn).
