Calix E5-400 Dimensions

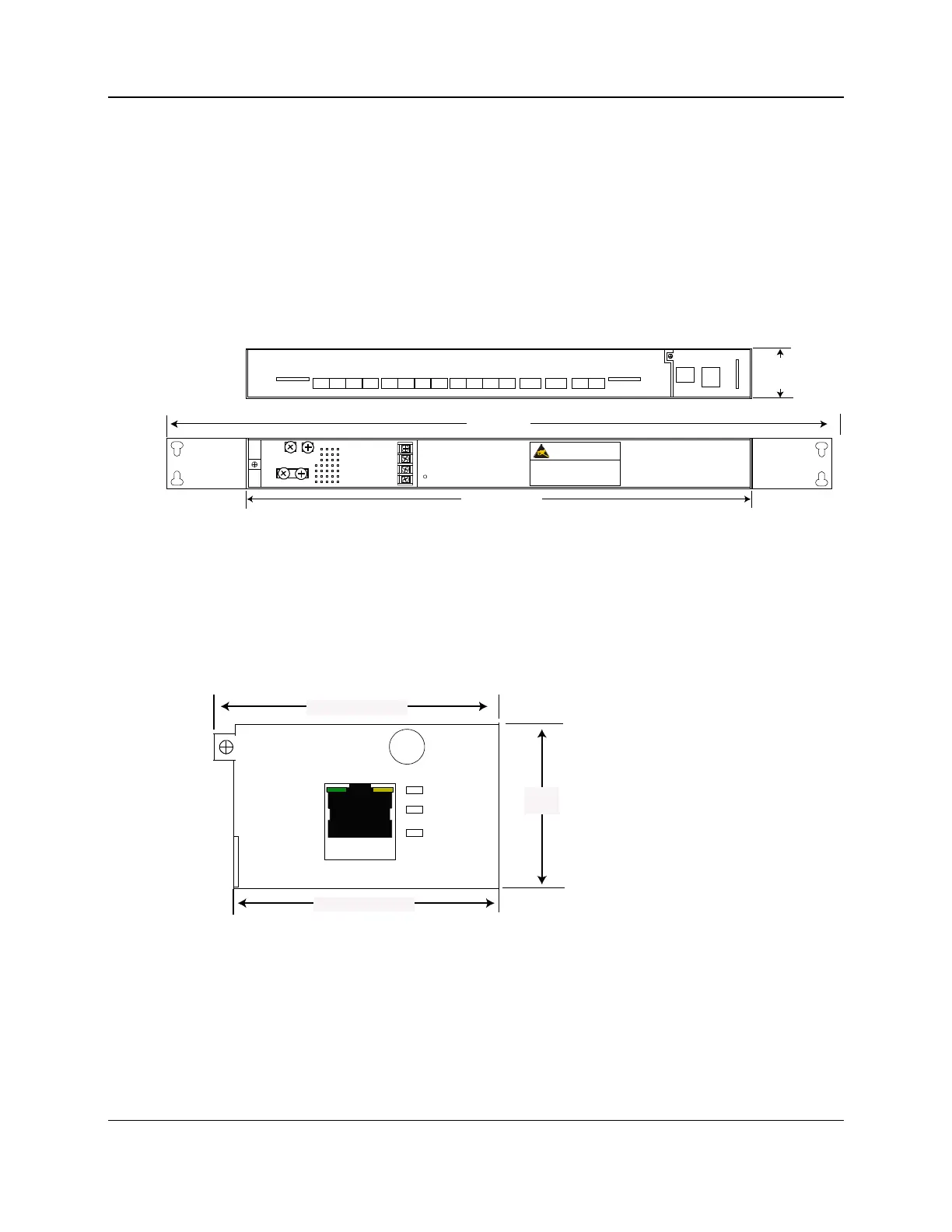

Chassis Dimensions
The Calix E5-400 has the following exterior dimensions:
 Height: 1.75-inches (4.4 cm)
 Width: 17.5-inches (44.5 cm)
 Depth: 11.25-inches (28.6 cm)
1.75-inches
(1RU)
ATTENTION
OBSE RVE PRECAUTIONS FOR HANDLING
ELEC TRO S TAT IC SENSIT IVE DEVICES
CLASS 1 LASER PRODUCT
Invi sable l aser r adiation. D o not look i nto beam
or vi ew i t direct ly w ith opti cal inst rum ents
Complies with 21 C FR1040.10 and 1040. 11 exce pt for deviati ons
pursuant to Laser Noti ce No. 50, dated July 26, 2001.
23-inches
or
19-inches
-48V RTN A
-48V A
-48V RTN B
-48V B
17.5-inches
5447
Fan Tray Dimensions
The Calix E5-400 fan tray module has the following exterior dimensions:
 Height: 1.625-inches (4.2 cm)
 Width: 2.625-inches (6.7 cm)
 Depth: 10.5-inches (26.7 cm)
LNK ACT
ETH MGMT 1
CRITICAL
MAJOR
MINOR
E5-400
FAN TRAY
ACO
5464
1.625-inches
2.875-inches
2.625-inches

Calix E5-400 Specifications

General

Brand	Calix
Model	E5-400
Category	Network Router
Language	English
