Calix ODC-10 Installation Guide
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.
Cross connections between equipment and subscriber pairs
Cabinets ordered with the integrated cross-connect option ship with the equipment
cabling terminated to the center column of connection blocks in the cross-connect panel.
The 2 outside columns of connection blocks are wired and terminated to the subscriber
cables for a 2:1 configuration. (2 subscriber pairs for each equipment pair)
Install jumper wires from the center column of equipment connection blocks to subscriber
connection blocks in either outside column.

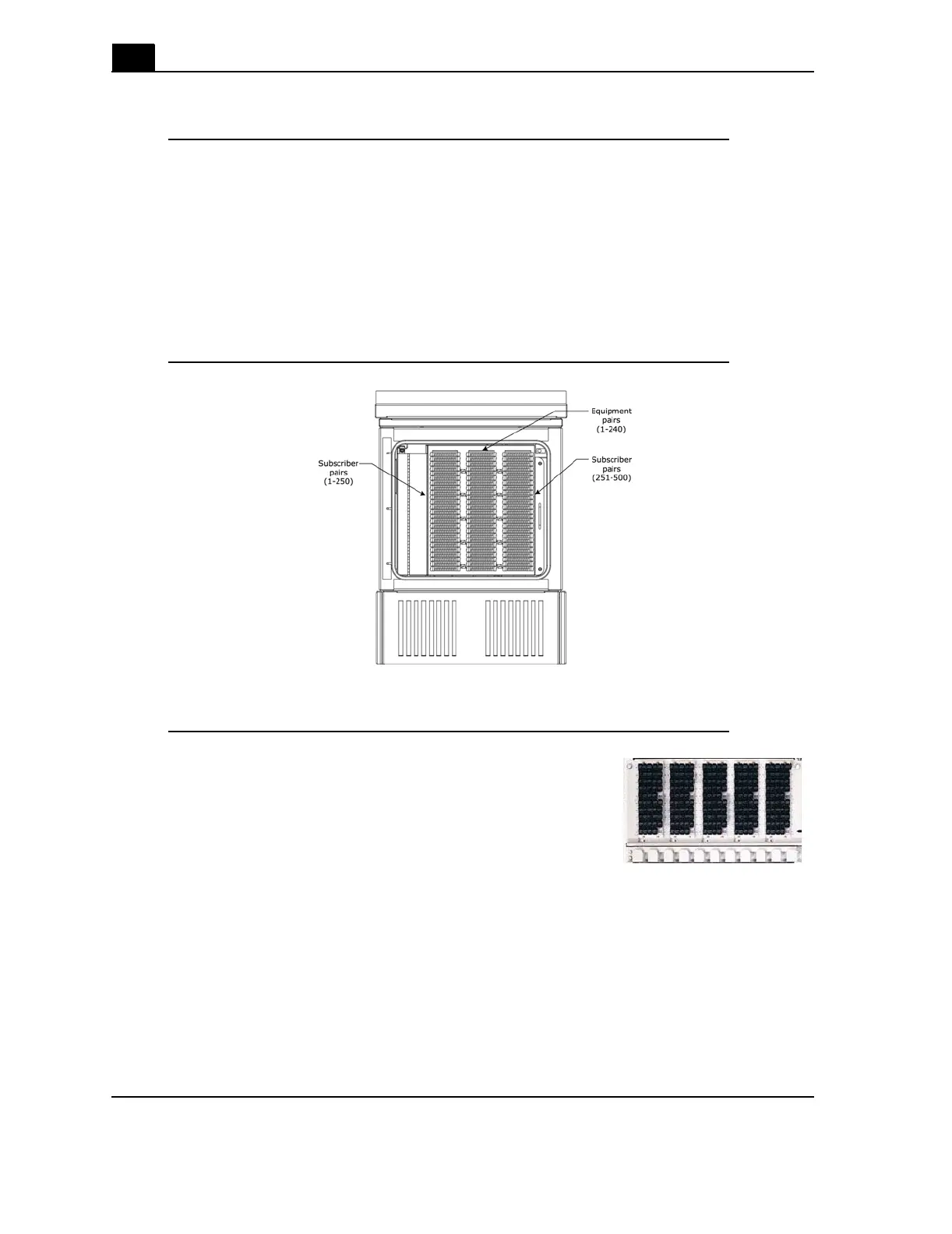

View of the integrated cross-connect panel
Install copper protection modules
In the rear compartment, install copper protection modules
for all slots corresponding to your configuration.
The sample image shows 240 modules installed in the
copper protection panel. Your configuration may differ.
