15 - Manual FA01869-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

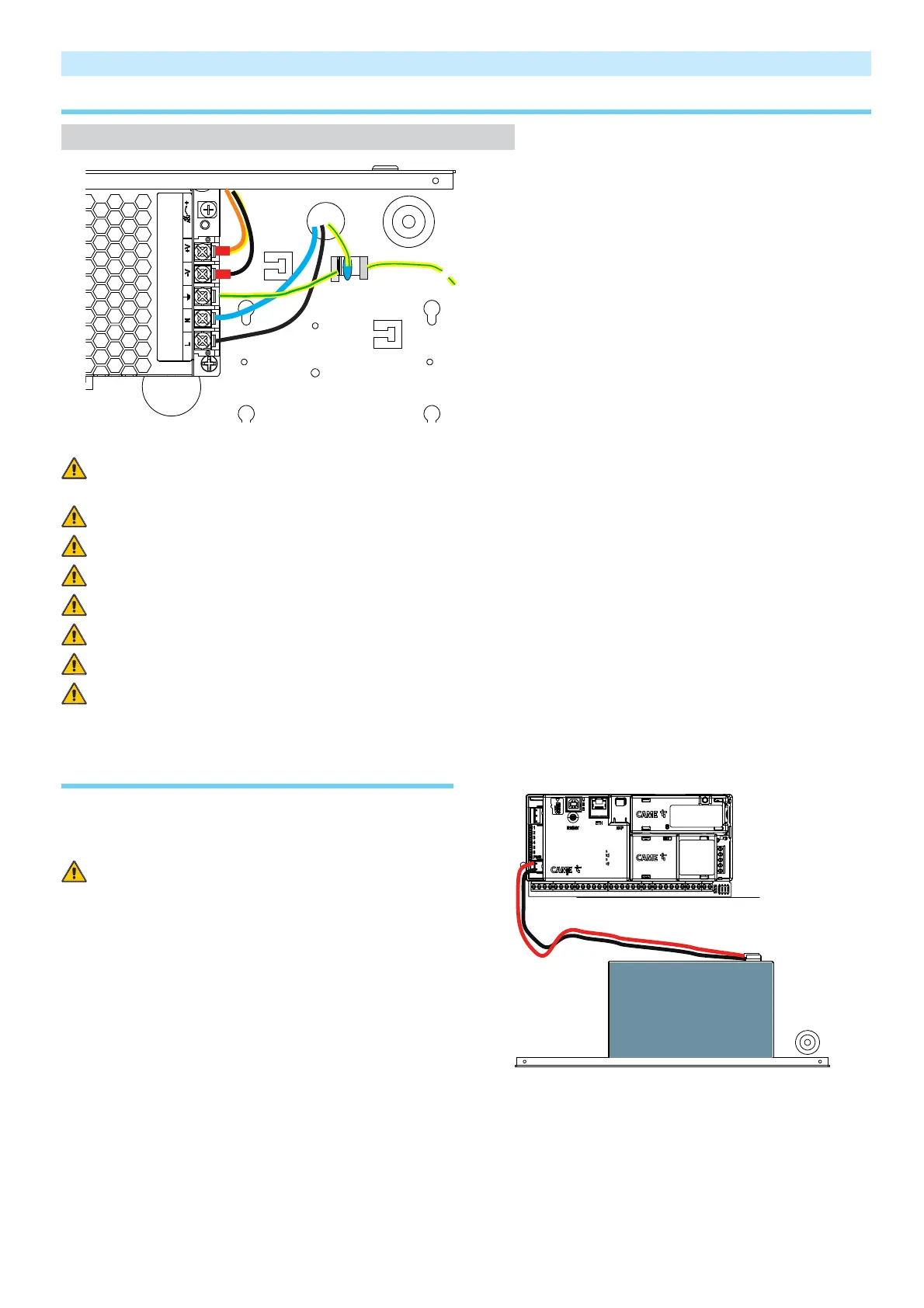

Cabling
230 VAC
PCX2-32/64/212
PE
Disconnect the magneto thermal switch associated with the control unit, before cabling the 230 Vac network and for the entire time that
the control unit is open.
Handling 230 Vac cables is dangerous; danger of death by electrocution. Connect the earth via a Faston to the corresponding connector.
Connecting the earth must be done according to current regulations.
Connect the 230 Vac Line and Neutral cable to the transformer terminals.
Lock the 230 Vac power cable to the casing so that it cannot move even if the terminals are disconnected.
Before closing the control unit, always check that all of the metal parts are connected to earth (control unit and cover).
Reconnect the magneto thermal switch associated to the control unit only once the cabling inside it are finished.
A suitable double-pole disconnection device must be installed for the installation to be to standard. This device must be outside the con-
trol unit and easily accessible, and the distance between contacts must be at least 3 mm. This is so as to comply with current standards. An
example device is a double-pole circuit breaker.
BATTERY
The battery is the secondary power source for the security alarm
control unit.
CAUTION! THERE IS DANGER OF THE BATTERY EXPLODING IF
IT IS REPLACED WITH THE WRONG TYPE.
DISPOSE OF THE USED BATTERIES FOLLOWING THE INSTRUC-
TIONS.
Respect the polar-
ities of the battery
when connecting.
