4 x ø 8,5
108
640
24
4 x ø 9
50
50
180 180180
18
STYLO-BD
Page
9 - Manual FA01806-EN - 01/2024 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Translated original instructions
STYLO-BD

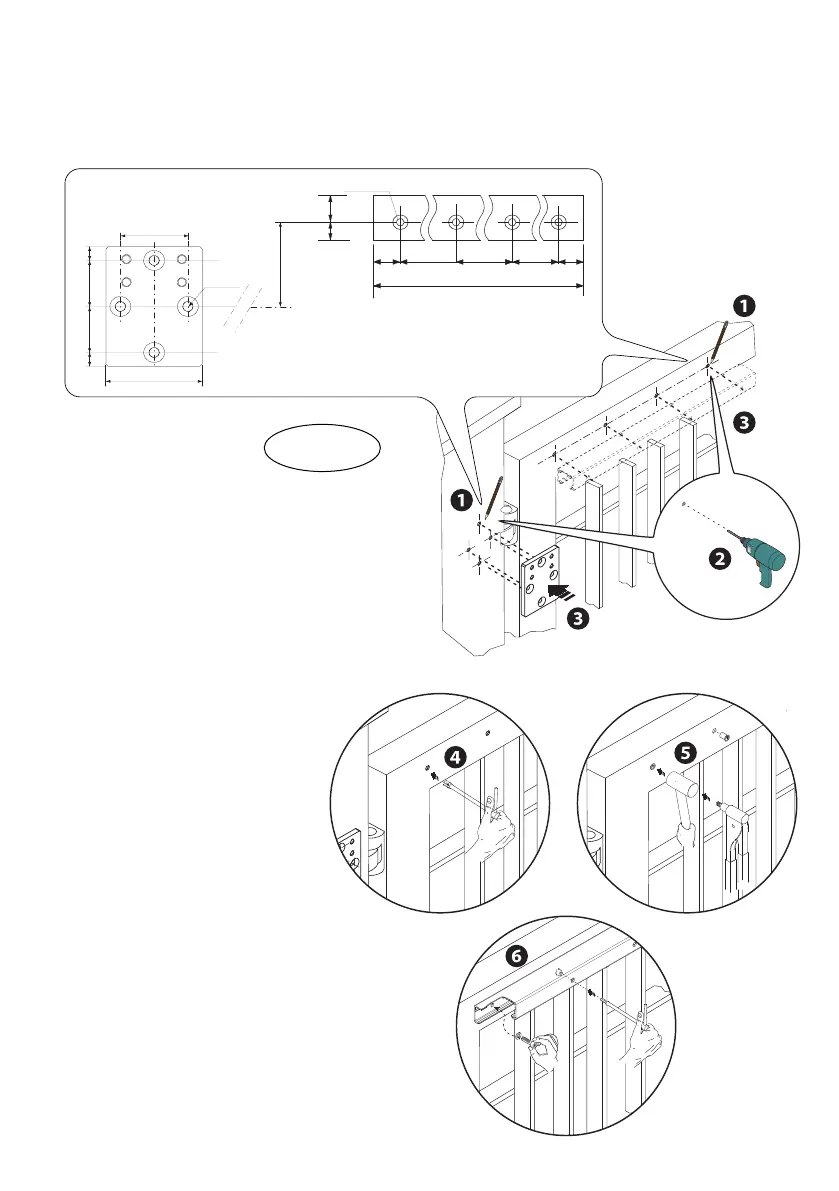

Trace all axes and dimensions, respecting the levels shown in the drawing , drill the marked points , then secure the
gearmotor mounting bracket to the wall or post and the slide rail .
Note: the illustrations are mere examples, it is up to the install to choose the most suitable solution depending on gate leaf
type and thickness.
Drill the holes using an M8 male piece
or use the M8 threaded inserts or suitable
materials for securing the rail .
Note: the illustrations are mere examples,
it is up to the install to choose the most
suitable solution depending on gate leaf
type and thickness.
Position the slide rail in the holes and secure it using
threaded cylinder head screws .
To Next Page
