Ø 3,5 x 9,5
UNI 6593 Ø 6x18
UNI 5739 Ø 6x10
Ø 10x39
UNI 5739 Ø 10x14
UNI 6592
Ø 12x24
UNI 6593
Ø 6x18
UNI 5739
M6x10
O-Ring 4100
Page
10
10 - Manual FA01806-EN - 01/2024 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Translated original instructions

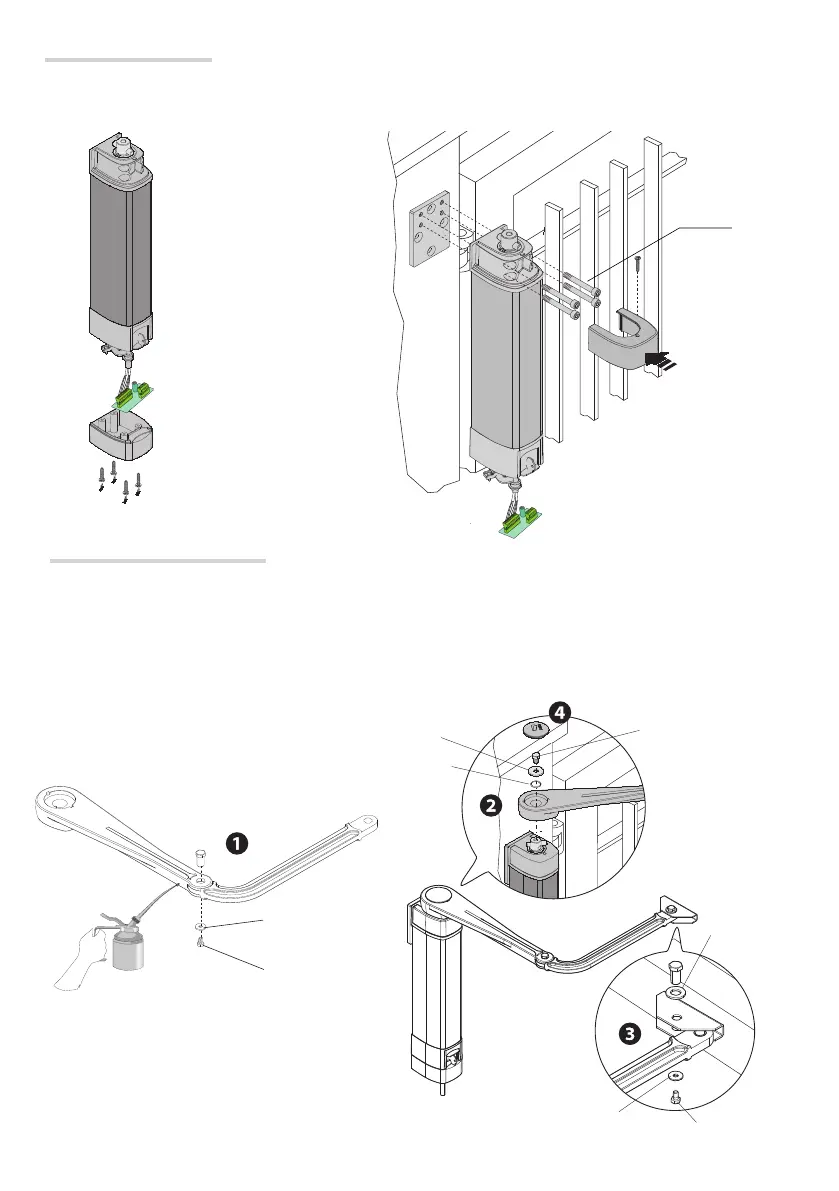

Remove the lower cap from the gearmotor. Secure the gearmotor to the fl ange using the four bolts supplied.
Secure the upper cap.
STYLO-BS
Assemble the hinged arm by joining the two half-arms with nuts and bolts. Lubricate the rotation pins
.
Insert the hinged arm onto the gearmotor shaft and secure it using the screw and washer
.
Release the gearmotor, open the gate leaf and hook the arm using the nuts and bolts
.
Cover the hole using the cap
.
Securing the transmission arm
Securing the gearmotor
