CAME STYLO - Securing the Transmission Arm (STYLO-BD)

UNI 6954 Ø 3,9 x 9,5
O-Ring 2012
Page
11
11 - Manual FA01806-EN - 01/2024 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Translated original instructions
STYLO-BD

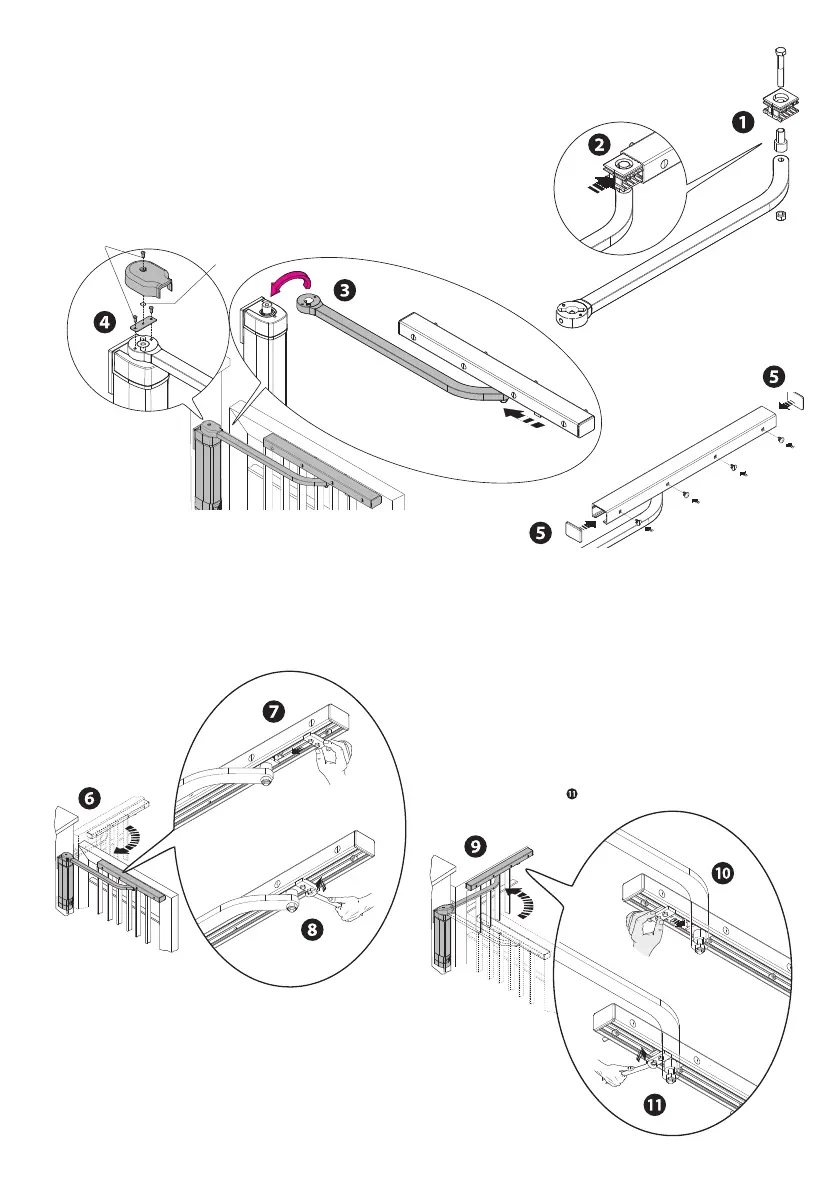

Assemble the slide guide to the transmission arm as shown in the drawing.
Insert the guide into the rail .
Assemble the straight arm onto the gearmotor shaft
. Cover the hole with the
cap and secure it using the supplied screws .
Insert the end caps of the rail and the hole covers .
Fully close the gate leaf  and position the closing
mechanical stop so that it coincides with the slide guide 
and then secure it .
Release the gearmotor (see paragraph on manual release). Fully
open the gate leaf  and position the mechanical stop so that it
coincides with the slide guide  and then secure it .
