2.1 Intended use
1 Legend
This symbol indicates sections to be read with particular care.
This symbol indicates sections concernig safety.
This symbol indicates notes to communicate to users.
2 Destination and limits of use
The V700 automated kit is designed to power sectional and overhead doors installed in condominiums and residential homes.
The use of this product for purposes other than as described above and installation executed in a manner other than as instructed in
this technical manual are prohibited.
IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
CAUTION: IMPROPER INSTALLATION MAY CAUSE SERIOUS DAMAGE, FOLLOW ALL INSTALLATION INSTRUCTIONS CAREFULLY
THIS MANUAL IS ONLY FOR PROFESSIONAL INSTALLERS OR QUALIFIED PERSONS
2.2 Limits to use
24V (d.c.) gearmotor with lifting force of up to 850N for:
Counterweighted overhead doors up to 2.40m in height
Spring-balanced overhead doors up to 3.25m in height
Sectional doors up to 3.20m in height
V700 was designed and manufactured by CAME CANCELLI AUTOMATICI S.p.A. and is compliant with the safety regulations in force.
The automation is mainly made up of an engine block, a transmission rail - with either a belt or chain transmission system - and a
transmission arm. Inside the ABS container which features a window for the courtesy light, we fi nd: the 24V gearmotor, the control
panel, the run-limiter unit and the transformer.
The gearmotor is made up of an aluminium die cast casing, which houses a worm-screw and helical-crown gear irreversible reduction
system, lubricated by permanent fl uid grease.
The transmission guide is made of cold-pressed galvanised sheeting. At the front end there is belt/chain tension device; fastened to the
other end is an ABS support to hold up the gear motor.
Inside the transmission guide runs the traction slide which includes the emergency release mechanism and the bracket for fastening to
the transmission arm.
The transmission arm is available in several sizes and shapes depending on the type of garage door.

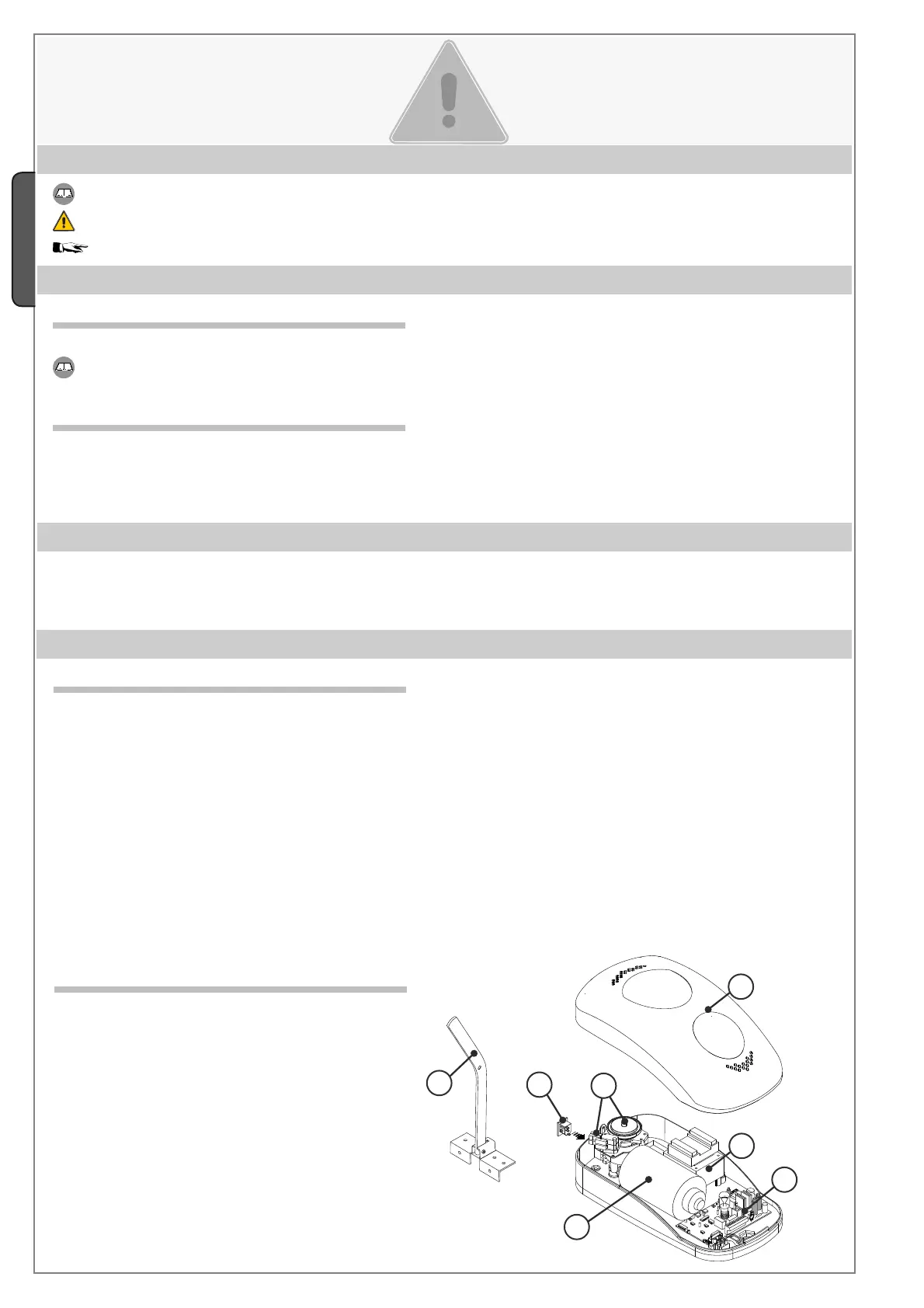

4.2 Description of the parts
GEARMOTOR SECTION
1 - Protective cover
2 - Gearmotor
3 - Transformer
4 - ZL55 circuit board
5 - Standard transmission arm
6 - The run-limiter unit
7 - Power socket
4.1 Automation
4 Description
3 Reference standards
Came Cancelli Automatici is ISO 9001 and ISO 14001 Quality and Environmentally certified. Came entirely designs and manufactures its
products in Italy.
The product in question compliant to the following legislation: see Declaration of Compliance.
