Pag.
10 - Manual code:
119ES 87 ver.
2 01/2013 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
6.1 General description
6 lectronic control panel
The control card is powered by 230V, through the power socket and has a 50/60Hz frequency.
The command devices and accessories run on 24V. Moreover, the total accessories cannot run on more than 40W.
The card controls a duty light and possibly also a courtesy lamp, which, works in synchrony with the duty lamp to illuminate the drive
way in proximity of the door; at each opening it stays on for 2 minutes and 30 seconds.
The V0670 card may be connected to operate the automation kit with emergency batteries (see the technical documentation attached).
The card automatically controls the following functions:
1) amperometric detection of obstructions during opening, closing and during slow down phases (with adjustable sensitivity);
2) automatic closing (adjustable);
3) working cycle (80”);
4) open-stop-close-stop command, open-close or only open;
5) reopening dueing the closing phase of the photocells;
6) obstruction detection when motor is not running;
7) maintained action;
8) pre-flashing upon opening and closing.
in the opening phase: door stops, and
subsequently closes automatically.
LAMPADE
Service E14 24V 25W
Courtesy 24V 25W
FUSES
Protection Fuse type
Motor 10A
Circuit board (line) 1,6A
Accessories 3,15A
Command devices (control unit) 315mA

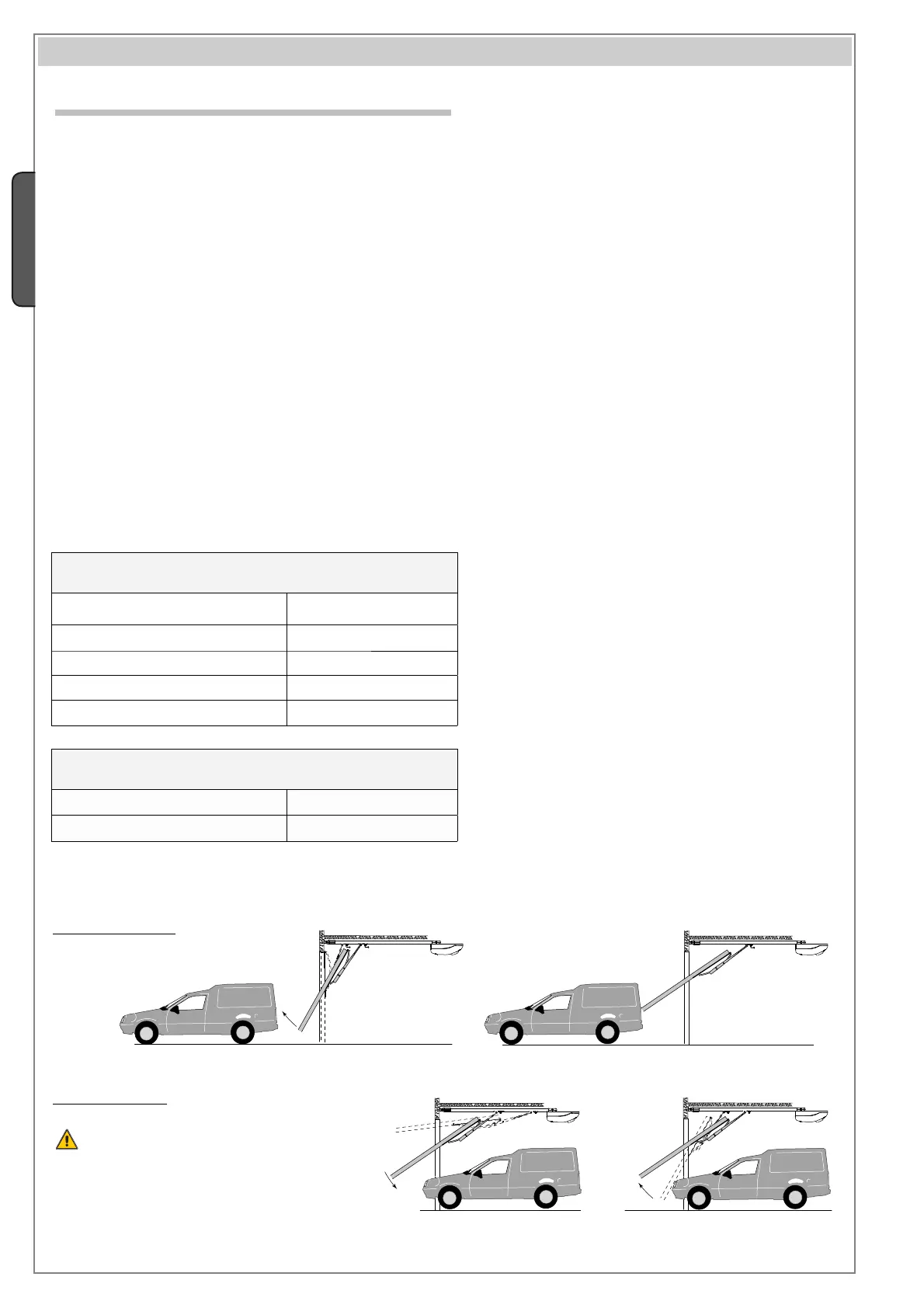

Detail of the amperometric detection of obstructions:
in the closing phase: invert the direction of movement until
completely opened;
Warning! After three, consecutive inverted cycles,
the door will stay open excluding automatic closing
function: to close the door, use the remote control or a
command button.
