ENGLISH
-To clean the photocells use a water dampened cloth. Do not use solvents or other chemical products which may ruin the devices.

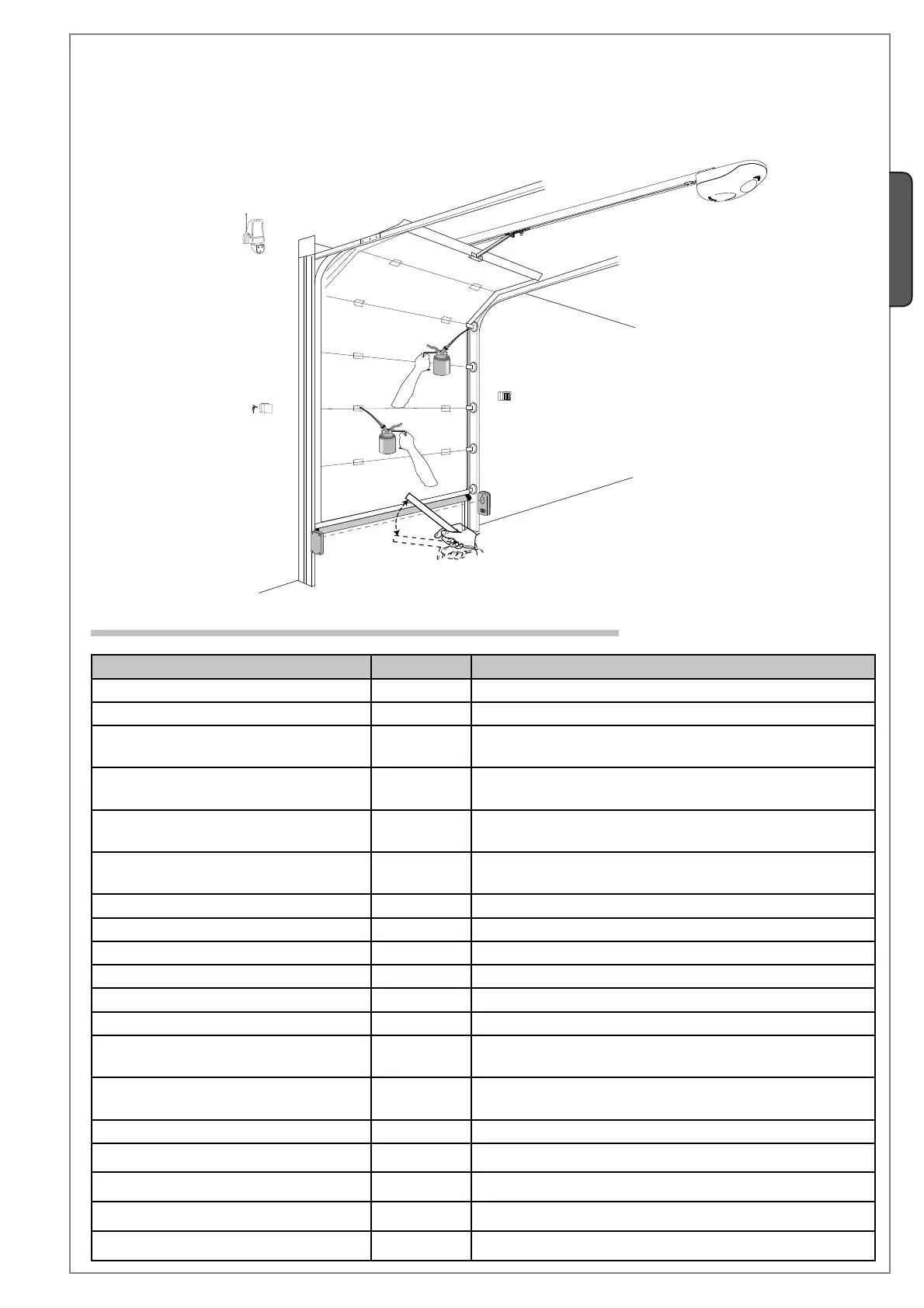

-In the event of any strange vibrations or squeaking, lubricate the joints with grease, as shown in the diagram.
-Make sure there are no plants within the photocell’s beam, and that the heavy door motion is free of any obstacles.
10.2 Problem solving
MALFUNCTIONS REFERENCES CHECKS
The automation does not open nor close 1-2-3 1 - Deactivate the maintained action by using the dipswitch
The automation opens but does not close 4-10-23 2 - Check the power supply and the line fuses
The automation closes but does not open 5-23 3 - The safety contacts (1-2) and the opening run-limiter micro
switch (N.C.) are open
The automation does not automatically close 9-10-11 4 - The safety contacts (2-C1) and the opening run-limiter micro
switch (N.C.) are open
The remote control does not work 1-12-14 5 - The safety contacts closing run-limiter micro switch (N.C.) are
open
The automation exerts too much force 16 6 - Deactivate the obstruction detection function using the dip-
switches
The automation exerts too little force 16-17-23-24 9 - Activate function “automatic closing”
The automation inverts the direction of movement 16-17-23-24 10 - Check the proper direction of motion
Only one remote control works 18 11 - N.C. command button instead of N.O.
The photocell does not work 4-19 12 - Check the fuse bridge on AF43S, remove/put power back on
The led indicator flashes quickly 3-4 14 - Memorise the radio code again
The led indicator stays on 11 16 - Ad just the sensitivity using the TRIMMER SENS
The automation does not work with the
emergency batteries
6-21-22 17 - Eliminating mechanical friction
The automation inverts the direction of
movement at the end of the cycle
10-17-23 18 - Insert (or duplicate) the same code in all the remote controls
The automation starts slowly 17-23-24 19 - Check the proper functioning of the photocell
21 - Check the batteries
22 - Respect the polarity of the photocells and accessories
23 - Checking the balancing of the overhead door
24 - Checking the tension of the belt/chain
