CAME V700 Installation Manual

1
2
2
1
Pag.
3
3 -
Manual code
:
119ES87
119ES 87 ver.
2
2 01/2013
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
Duty cycle: 50 %
Protection level: IP40
Weight: 5,9 kg
Insulation class:
Working temperature: -20°/+55°

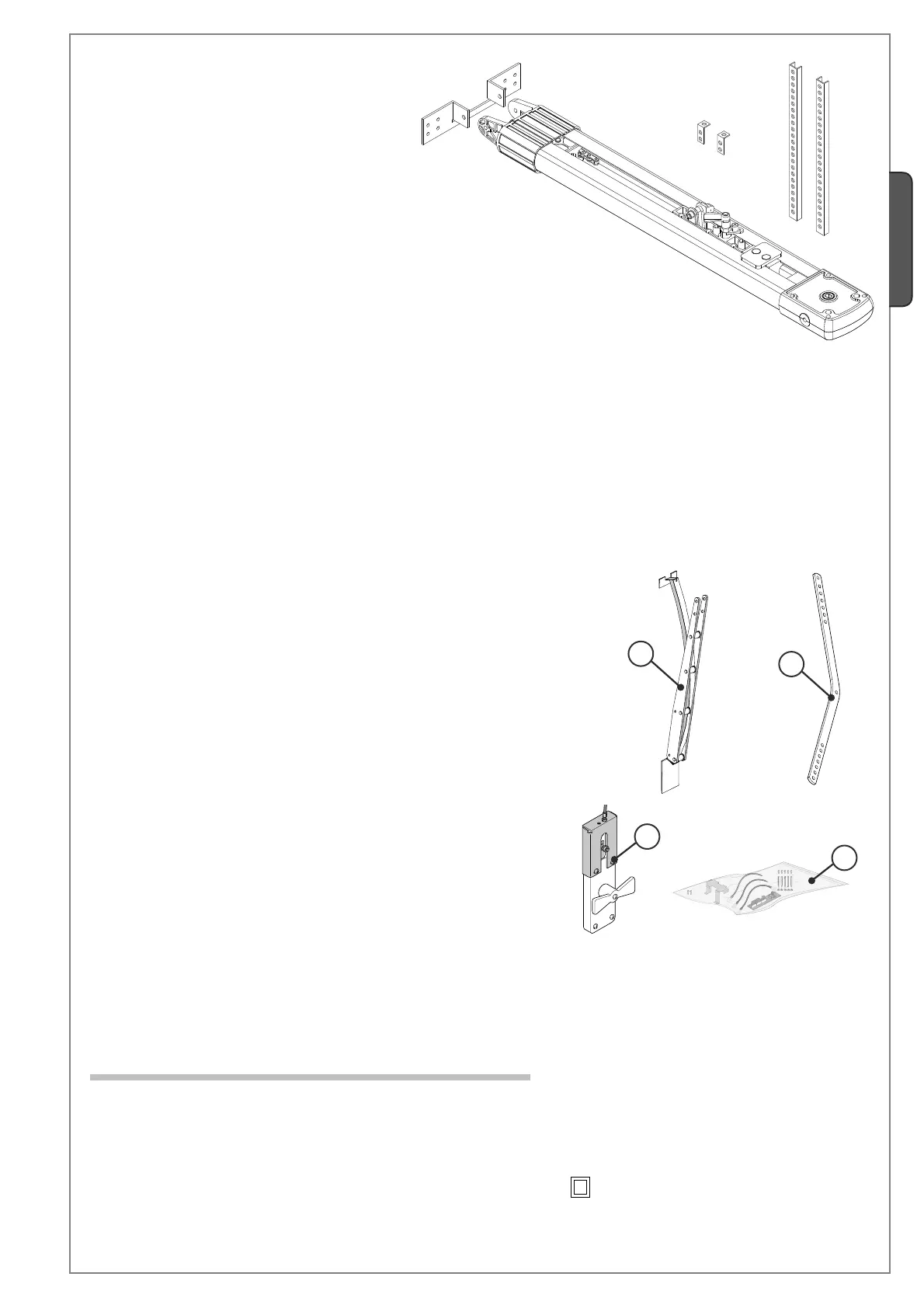

GEARMOTOR V700
Power supply: 230V A.C. 50/60Hz
Motor power supply: 24V D.C. 50/60Hz
Motor absorption.: 11A
Max power: 260W
Lifting force: 850Nm
Average speed: 6m/min
TRANSMISSION GUIDES
V0679 - Chain guide unit L= 3.02 m
V0684 - the same as the V0679 but two parts need
assembling
- counterweighted overhead doors up to 2.40 m in
height;
- Spring balanced overhead doors up to 2.25 m in height;
- sectional doors* up to 2.20 m in height.
V0682 - Chain guide unit L= 3.52 m
- Spring balanced overhead doors up to 2,75 m in height;
- sectional doors* up to 2.70 m in height.
V0683 - Chain guide unit L= 4.02 m
- Spring balanced overhead doors up to 3.25 m in height;
- sectional doors* up to 3.20 m in height.
V0685 - Belt guide unit L= 3.02 m
V0687 - the same as the V0685 but two parts need assembling
- counterweighted overhead doors up to 2.40 m in height;
- spring balanced overhead doors up to 2.25 m in height;
- sectional doors* up to 2.20 in height.
V0686 - Belt guide unit L= 3.52 m
- spring balanced overhead doors up to 2.75 m in height;
- sectional doors* up to 2.70 m in height.
V0688 - Belt guide unit L= 4.02 m
- spring balanced overhead doors up to 3.25 m in height;
- sectional doors* up to 3.20 m in height.
* see page 5.
OPTIONAL TRANSMISSION ARMS
1) 001V201 - Transmission arm for counterweighted overhead garage
doors.
2) 001V122 - Extra-strength transmission arm for sectional garage doors;
OPTIONAL ACCESSORIES
1001V121 - Pull-string release mechanism to affix onto the handle;
001V0670 - Emergency battery start-up card, houses 2 (12V-1,2Ah not
included) batteries;
Important! Check that the safety equipment and accessories are CAME originals; this is a guarantee that also makes the system easy
to set up and upkeep.
4.3 Technical specifications
