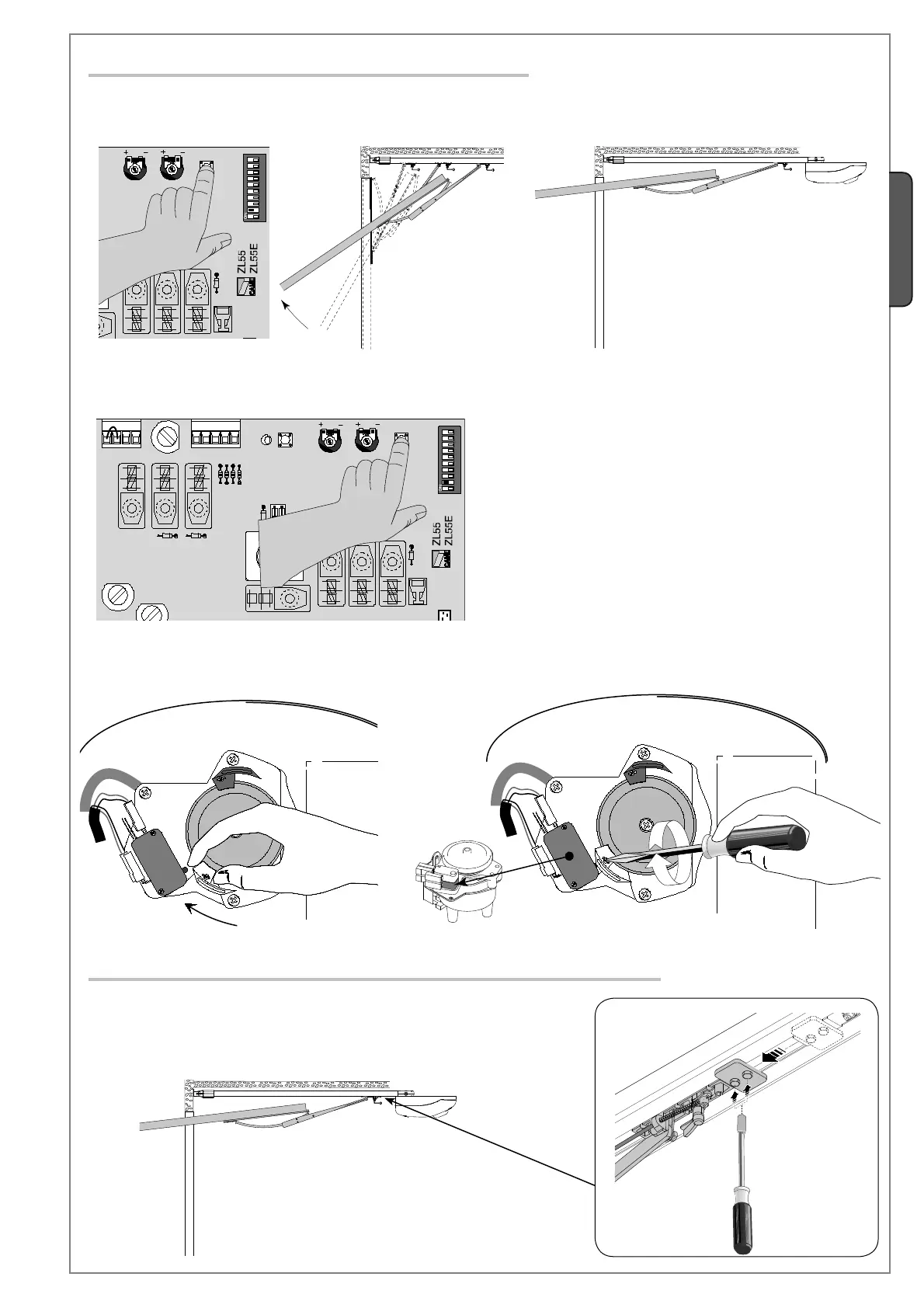

1) Briefl y press the “AP/CH” button. When the up-and-over door is fully opened…
3) Turn the white cam clockwise until the micro switch is activated. Block the cam with the screw in that position.
Adjusting the opening run-limiter
2)…briefl y press the same button again.
Adjusting the mechanical stop in the opening cycle
- When the door is fully opened, fasten the mechanical stop to the traction slide.
