Camus Hydronics Avenger Series - 6.2 CONFIGURE MENU

38

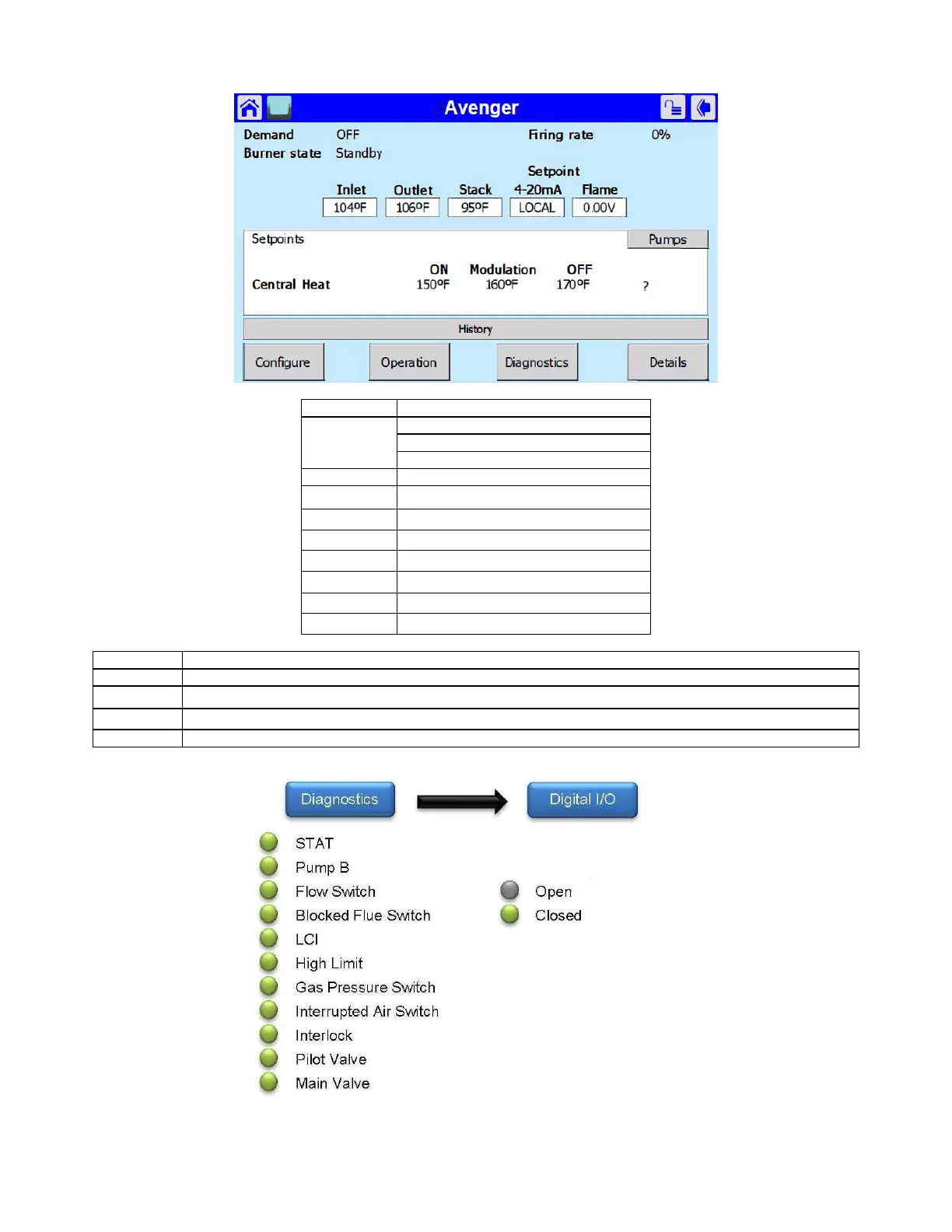

Figure 28: Home Screen
Parameter
Description
Demand
Central Heating (ARH)
Domestic Hot Water (ARW)
Lead Lag
Burner State
Current Status of Avenger
Firing Rate Target Firing Rate
Inlet
Inlet Water Temperature [°F]
Outlet
Outlet Water Temperature [°F]
Stack
Stack Temperature [°F]
DHW
DHW Temperature [°F], if equipped
Header
Header Temperature [°F], if equipped
Outdoor
Outdoor Temperature [°F], if equipped
Button
Description
Configure
Access Avenger parameters (CH Parameters, DHW Parameters, Outdoor Reset, Pump Configuration etc.)
Operation Details of Boiler Operation (Set point, Firing Rate, Pump Status, Safety Circuit)
Diagnostics
Manual Firing Rate, Analog/Digital Status
Details
History, Pump Status, Outlet Temperature
Sequence of Operation
Flow Switch: Flow Switch, Water Pressure Switch (12 PSIG), Low Water Cut Off (if equipped)
Gas Pressure Switch: Low Gas Pressure Switch (4.5” w.c., N/O), High Gas Pressure Switch (14” w.c, N/C)
Interrupted Air Switch: Air Proving Switch (N/O)
Pump B: Avenger
™
Pump
Pilot Valve: (AR3000 – AR4000)
