Camus Hydronics Avenger Series - Page 45

40

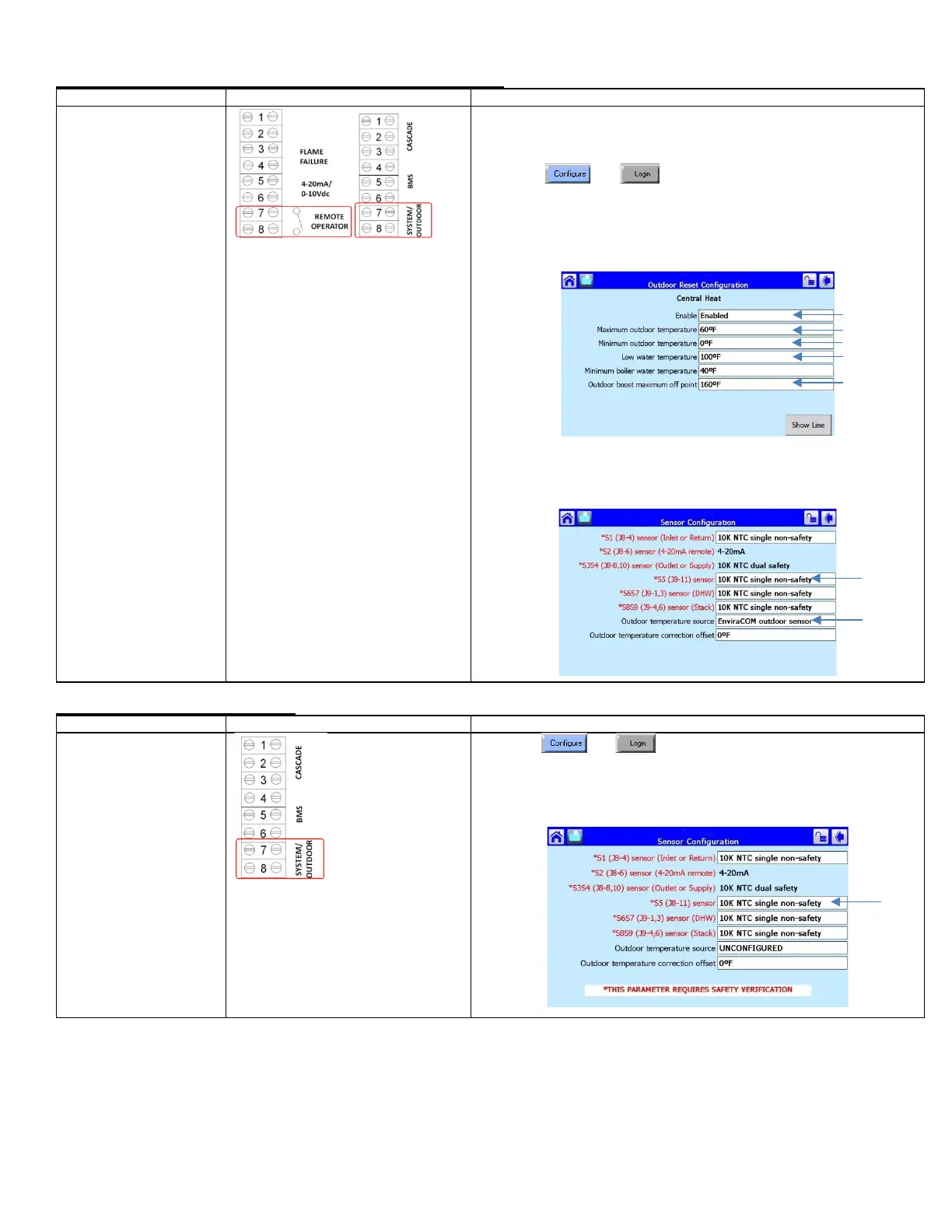

Modulation: System Sensor, Outdoor Reset Operation (Standalone) NOTE: Outdoor Reset Module required (PN: W8735S1000)
Description
Electrical Connection(s)
Programming Instructions
• Boiler operates with
variable setpoint
determined by outdoor
reset curve
• Modulates on system
sensor
• Heat demand is
generated when system
temperature drops
below setpoint minus
on hysteresis
1) Connect Remote Operator
2) Connect System sensor to System/Outdoor contacts
3) Connect Outdoor Sensor to J3 ECOM connector
4) Place toggle switch in LOCAL
5) Press and
6) Press Outdoor Reset Configuration
7) Select Enable: Enable
8) Select Maximum outdoor temperature (WWSD)
9) Select Minimum outdoor temperature (Outdoor Design)
10) Select Low Water Temperature (Min. Water Temp.)
11) Select Outdoor boost maximum off point (Design Max.)
12) Press [Show Line] to confirm reset curve
13) Press Sensor Configuration
14) Selet S5 (J8-11) sensor: 10K NTC single non-safety
15) Select Outdoor temperature source = EnviraCOM outdoor sensor
16) Place toggle switch to REMOTE for remote enable operation (if required)
System Sensor Enable (Standalone)
Description
Electrical Connection(s)
Programming Instructions
• Method to enable
system sensor for
Standalone applications
1) Press and
2) Press [Sensor Configuration]
3) Select S5 (J8-11) Sensor: 10K NTC Single Non-Safety
4) The control will proceed into a Lockout 2 condition
5) Press [Verify] > [Begin] > [Yes]
6) Press the reset button on the ignition control within the alotted time
