Media take-up unit

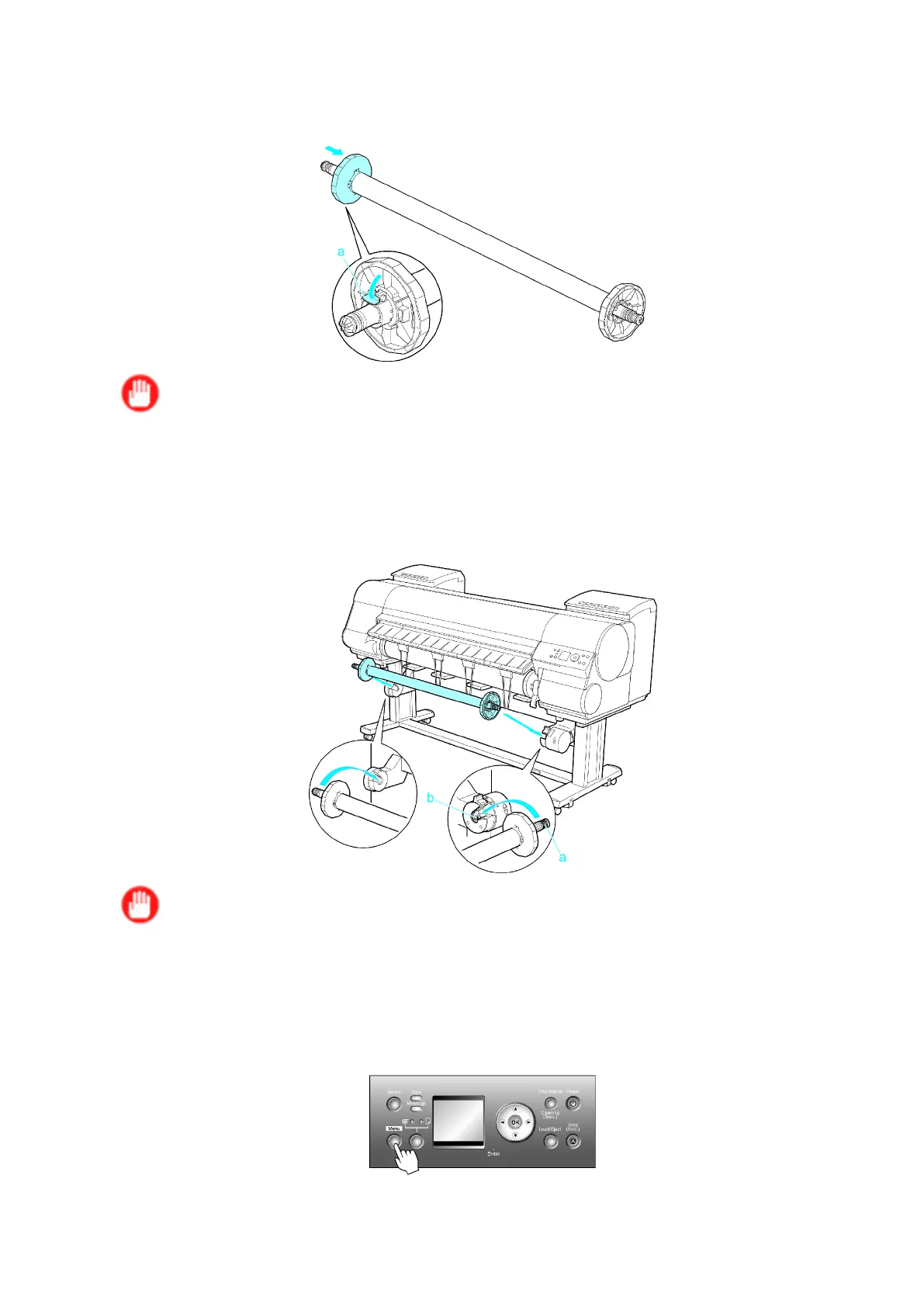

5. Push the anges in rmly until the paper core is secured in place and push down the lever
(a) toward the shaft.
Important
• After pushing in the anges rmly , make sure the paper core is secure and does not move around.
Move the paper core left and right. If there is a gap between the anges and paper core, repeat
steps 2-4.
6. Load the Rewind Spool on the Media T ake-up Unit so that the gear of the Rewind Spool (a)
meshes with the gear of the Right Media T ake-up Unit (b).
Important
• If you attempt to load the Rewind Spool with the left and right ends inverted by mistake, the Media
T ake-up Unit cannot be turned on.
• If the gear of the Rewind Spool (a) does not mesh with the gear of the Right Media T ake-up Unit (b),
the Media T ake-up Unit cannot be turned on.
7. Press the Menu button to display MAIN MENU .
8. Press ▲ or ▼ to select Media Menu , and then press the ► button.
168 Handling Paper
To Next Page
