Printer parts
Back

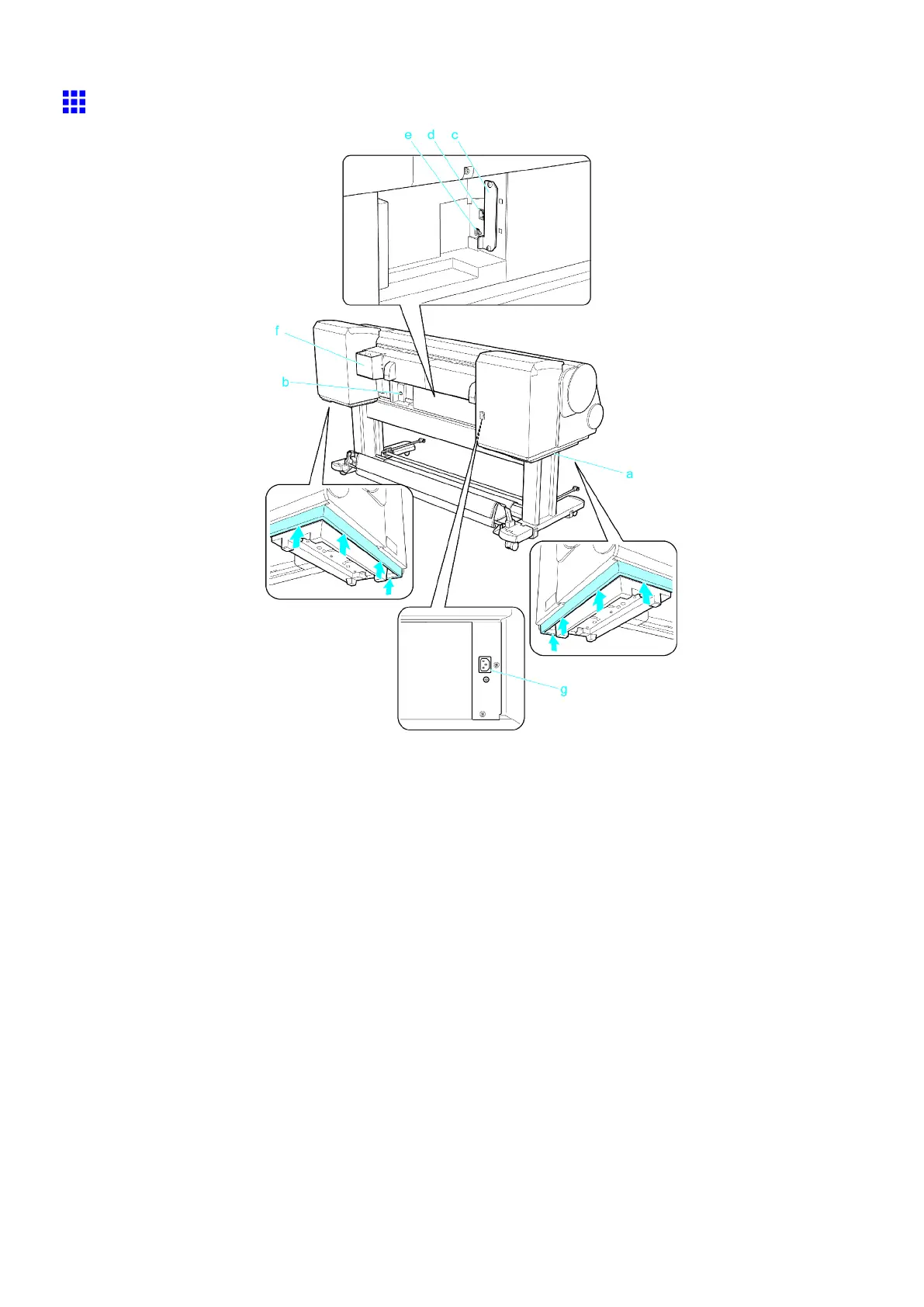

a. Carrying Handles
When carrying the printer , have four people hold it by these handles under both sides.
b. Media T ake-up Unit Power Inlet
Connect the power cord of the optional Media T ake-up Unit here.
c. Expansion Board Slots
Install an optional IEEE 1394 (FireWire) expansion board, as desired.
d. Ethernet Port
Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly
and communication is possible between the computer and printer .
e. USB Port
Connect a USB cable to this port. This port is compatible with USB 2.0 High Speed mode.
f. Accessory Pocket
Holds printer manuals, assembly tools, and other items.
g. Power Supply Connector
Connect the power cord to this connector .
Printer Parts 15
