Printer parts

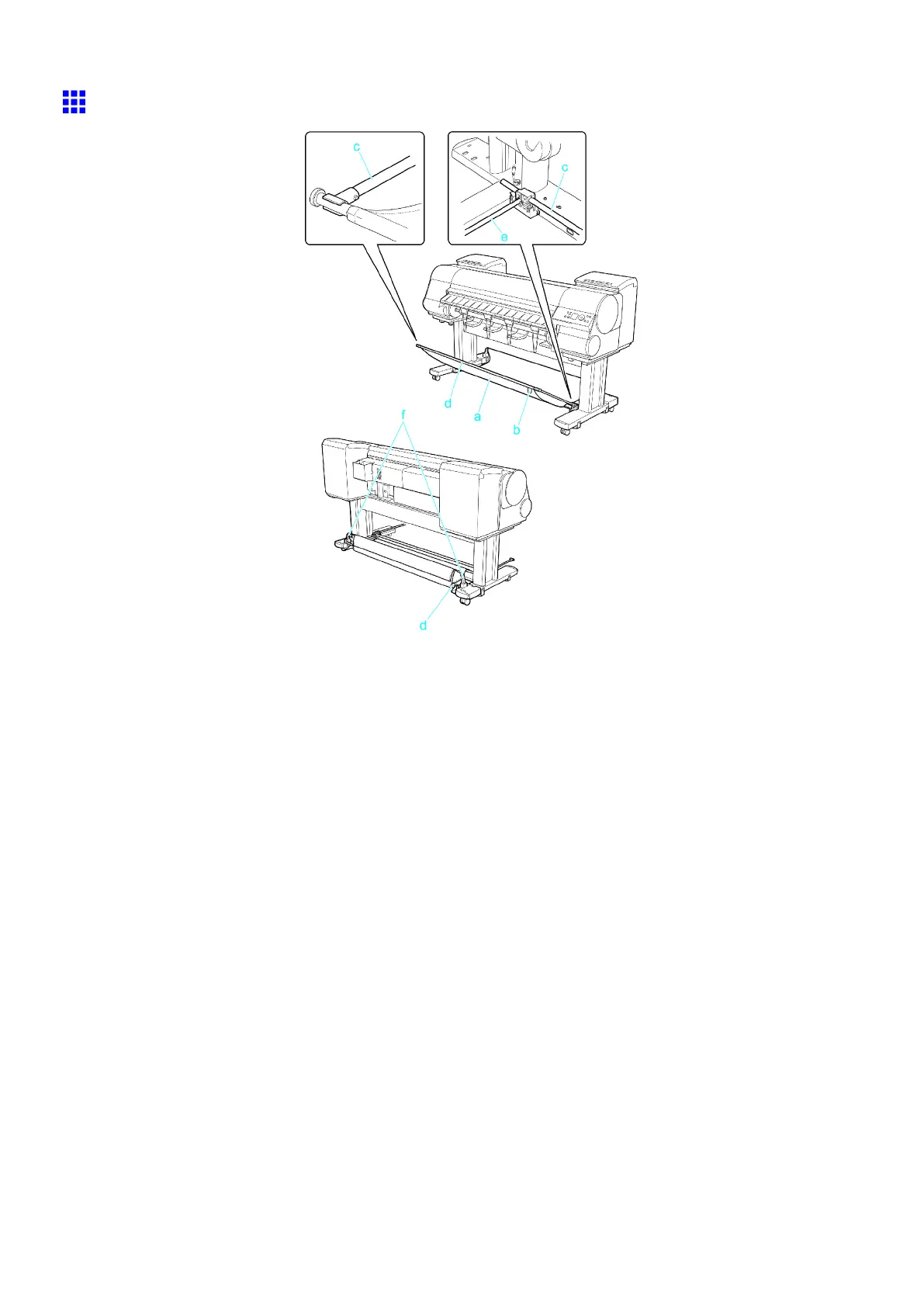

Output Stacker
a. Output Stacker
A cloth tray that catches ejected documents.
b. White tag
A point of reference for attaching the Output Stacker in the right direction.
c. Basket Arm R and Basket Arm L
Holds the Basket Rod (tag side) attached to the Output Stacker . When the Output Stacker is not
used, push it down and store it next to the Stand Leg .
d. Basket Rod (tag side) and Basket Rod (cord side)
Holds the cloth Output Stacker securely in specic positions.
e. Basket Rod
Keeps Basket Arm R and Basket Arm L at the same angle.
f. Rod Holder
Holds the middle of the Basket Rod (cord side).
( → P .157 )
