Media take-up unit

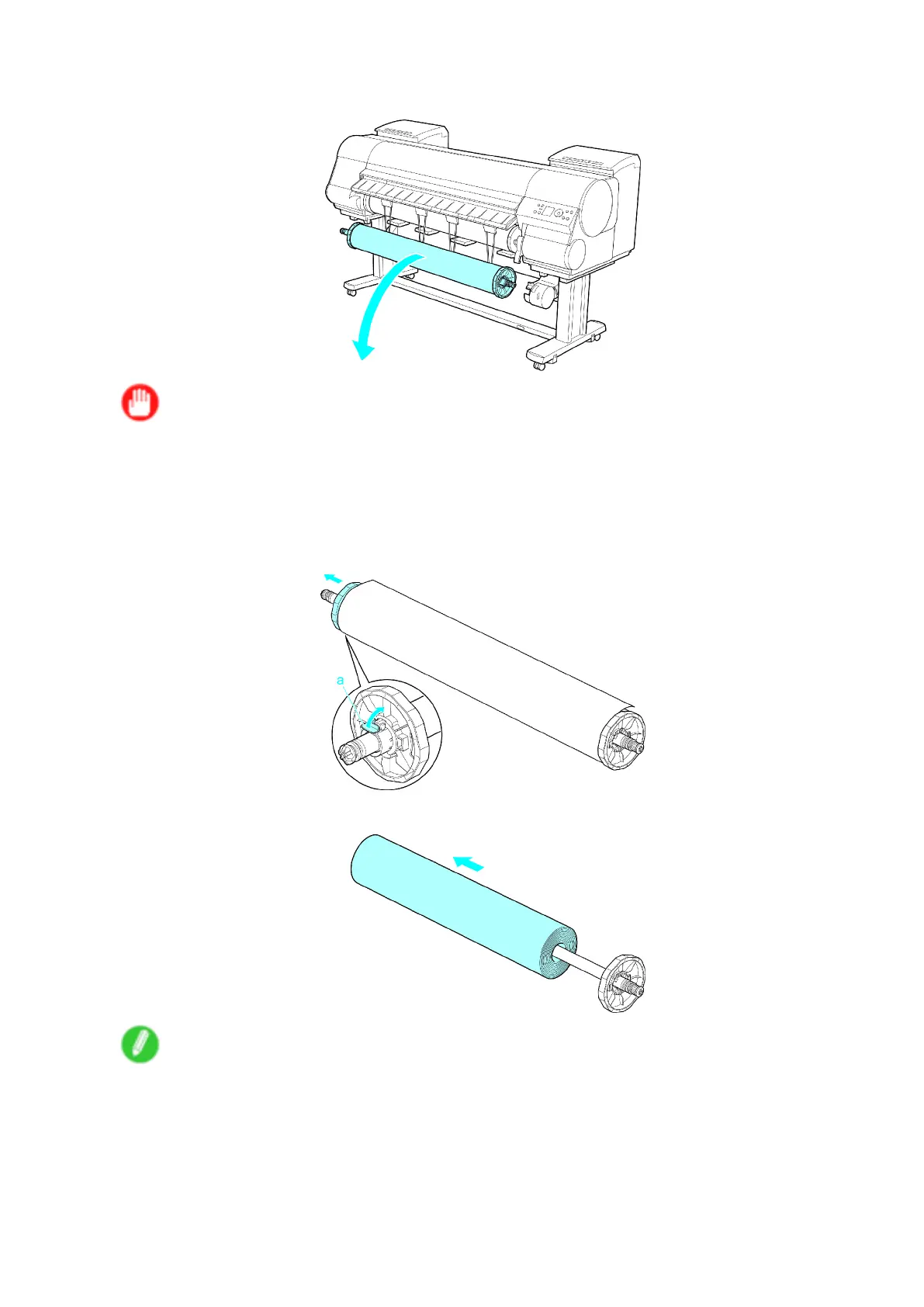

9. Remove the Rewind Spool from the Media T ake-up Unit .
Important
• Always turn of f the Media T ake-up Unit before removing the Rewind Spool . The Media T ake-up Unit
may be damaged if you do not turn it of f rst.
• Remove the Rewind Spool , pulling of f both ends from the Media T ake-up Unit at once.
10. Unlock the ange on the left side of the Rewind Spool by lifting the lever (a) from the shaft
side. Remove the ange.
1 1. Remove the entire paper core with the rewound printed documents from the Rewind Spool .
Note
• Y ou can leave the Rewind Spool on the Media T ake-up Unit even when it is not used for rewinding
rolls.
Handling Paper 175
