Printing CAD Drawings

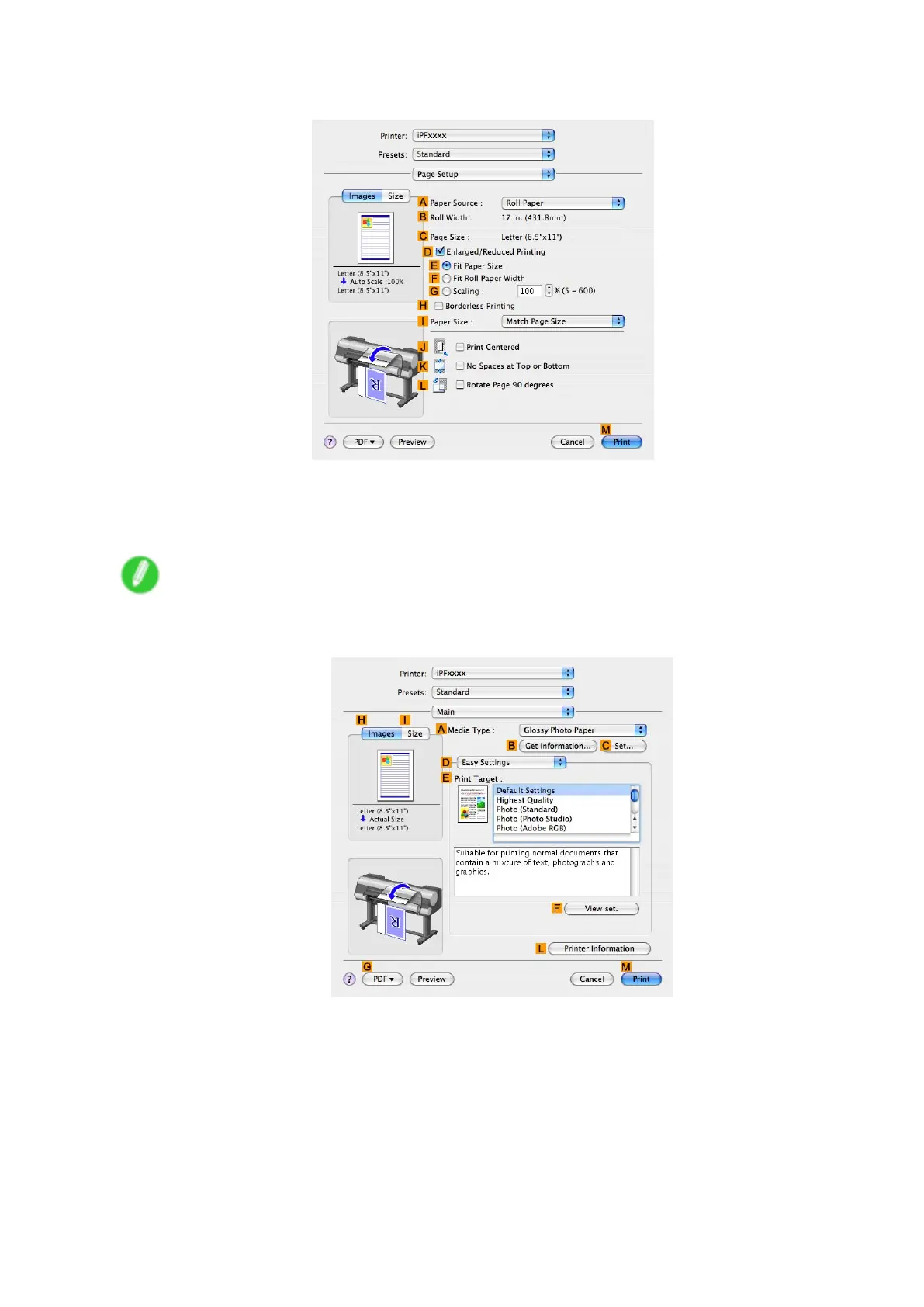

9. Access the Page Setup pane.
10. Click Roll Paper in the A Paper Source list.
1 1. Make sure the width of the loaded roll is displayed in the B Roll W idth list-in this case, ISO
A2/A3 (420.0mm) .
Note
• If the width of the loaded roll is not displayed in B Roll W idth , click L Printer Information on the
Main pane and update the printer information.
220 W orking With V arious Print Jobs
