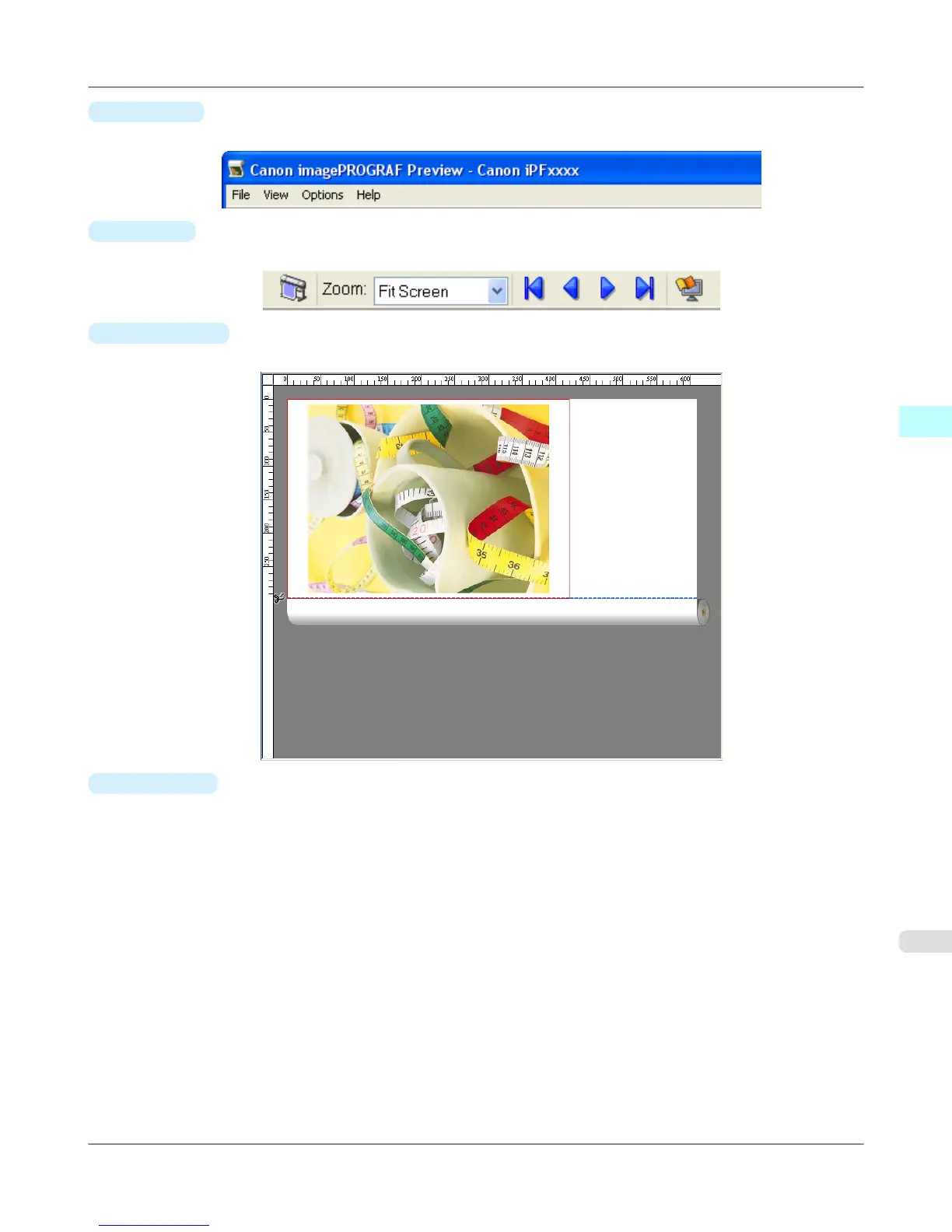

Menu Bar

This allows you to select menus required for operations.

•

Tool Bar

This allows you to select tool buttons required for major operations.

•

Preview Area

You can check the settings you made in this area.

•

Dialog Area

This allows you to set the print conditions and perform a print job.

Windows Software

Preview

iPF6300S Preview Main Window

251
