Free Layout Main Window

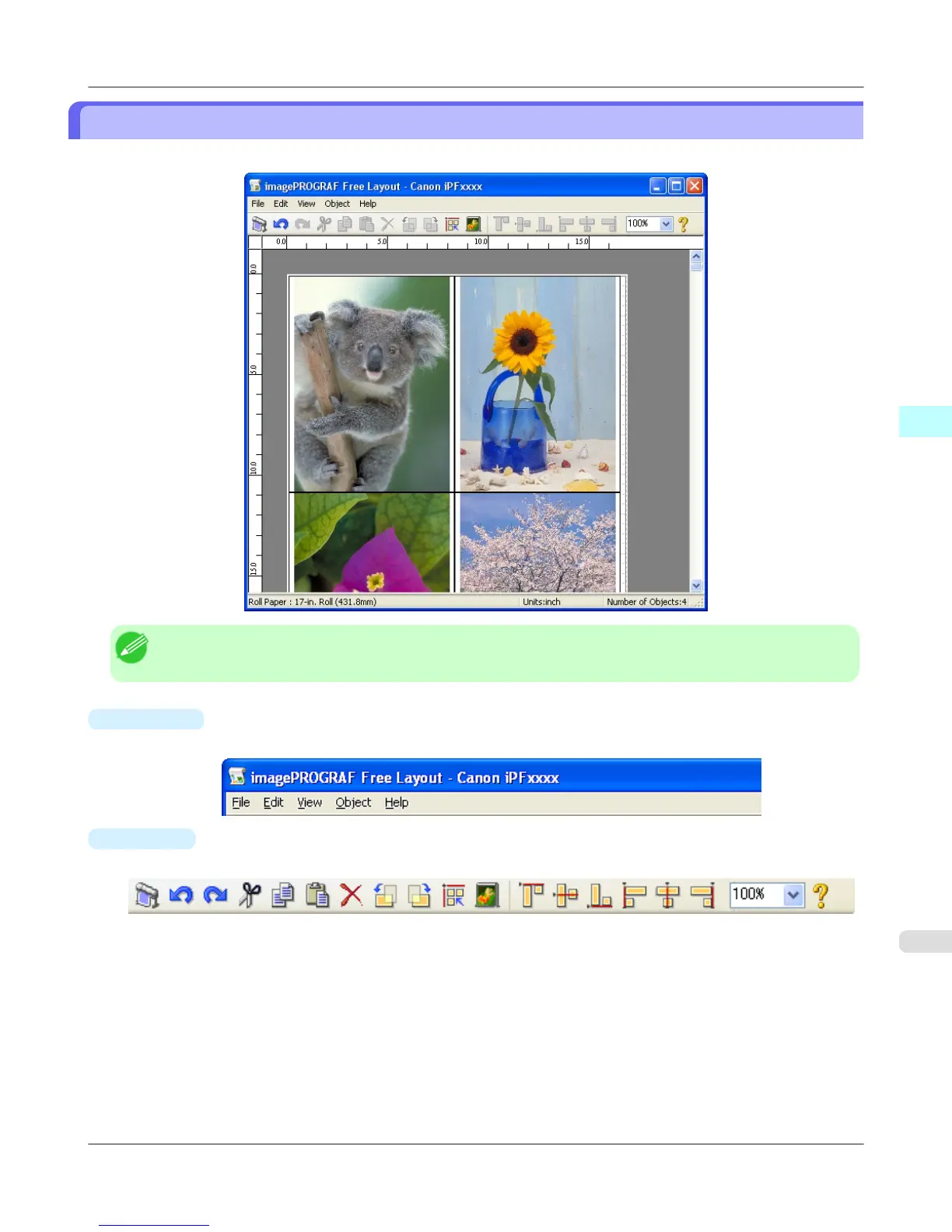

The Free Layout main window consists of the menu and tool bars, layout area and status bar.

Note

• You can use the View menu to show or hide the tool and status bar.

•

Menu Bar

This allows you to select menus required for operations.

•

Tool Bar

This allows you to select tool buttons required for major operations.

Windows Software

Free Layout

iPF6300S Free Layout Main Window

265
