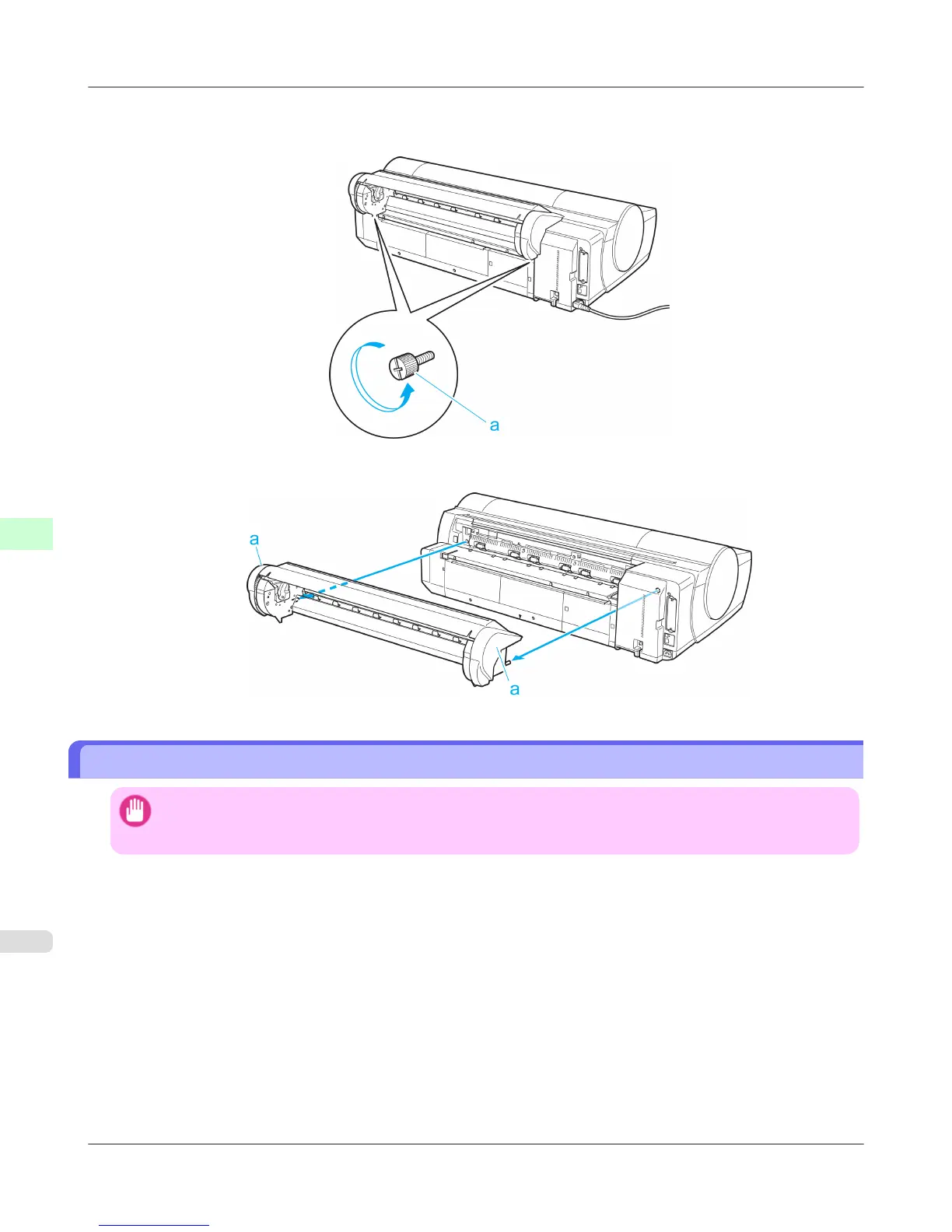

2. Use a coin or screwdriver to loosen the screws (a) on both sides of the back of the Roll Feed Unit, and remove the

screws.

3. Holding the Carrying Handles (a) of the Roll Feed Unit, remove the Roll Feed Unit from the printer.

Installing the Roll Feed Unit

Important

• Always turn off the printer before attaching the Roll Feed Unit. The printer may be damaged if you do not

turn it off first.

Handling Paper

Handling rolls

Installing the Roll Feed Unit iPF6300S

806
