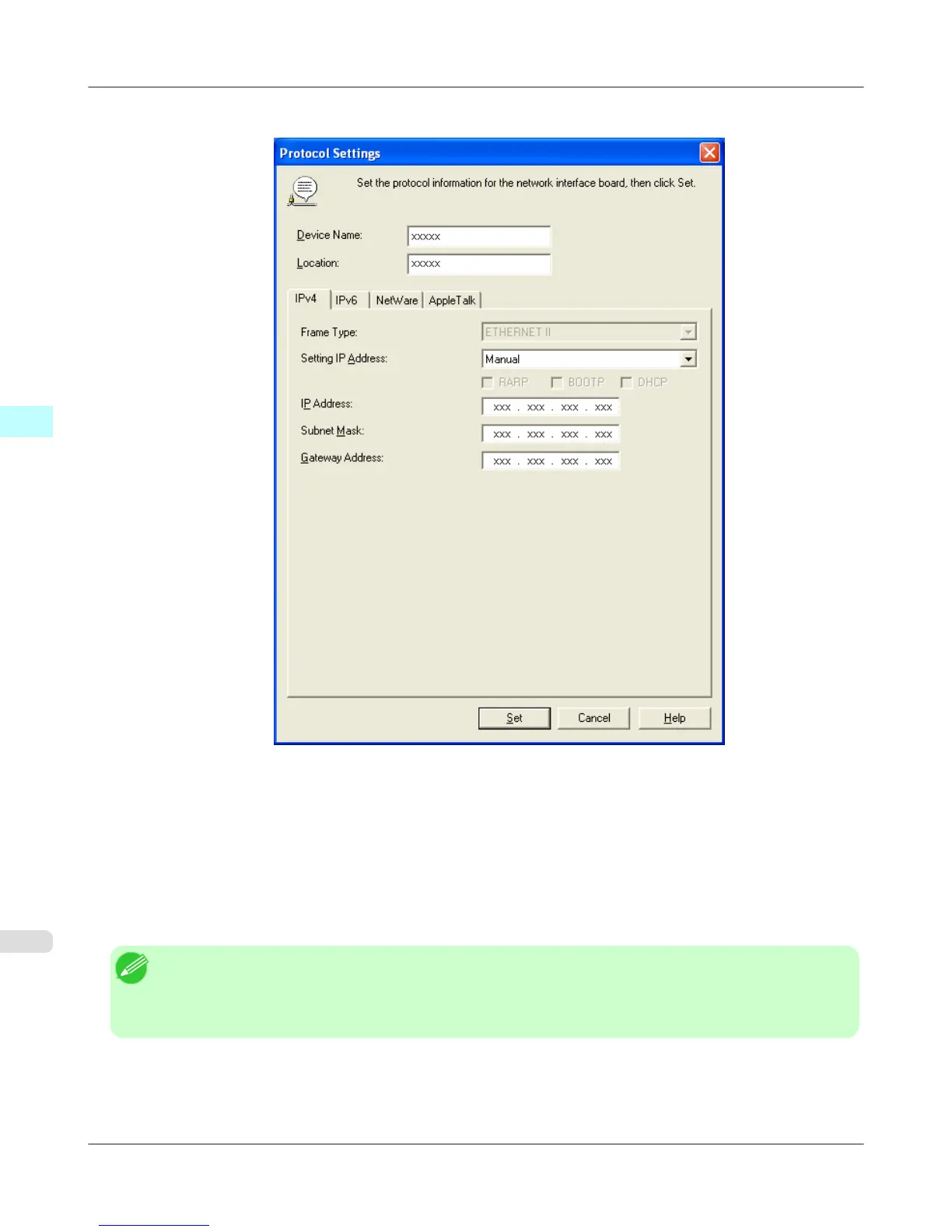

4. Select the IPv4 tab.

5. In the Setting IP Address list, choose Manual.

6. Enter the IP address assigned to the printer and click the Set button.

7. Click OK after the Confirmation message is displayed.

8. Exit imagePROGRAF Device Setup Utility.

Note

• To configure the IP address automatically, choose Auto in the Setting IP Address list and select DHCP,

BOOTP, or RARP.

• You can also specify the subnet mask and default gateway.

Windows Software

Device Setup Utility

Configuring the IP Address Using imagePROGRAF Device Setup Utility iPF6300S

444
