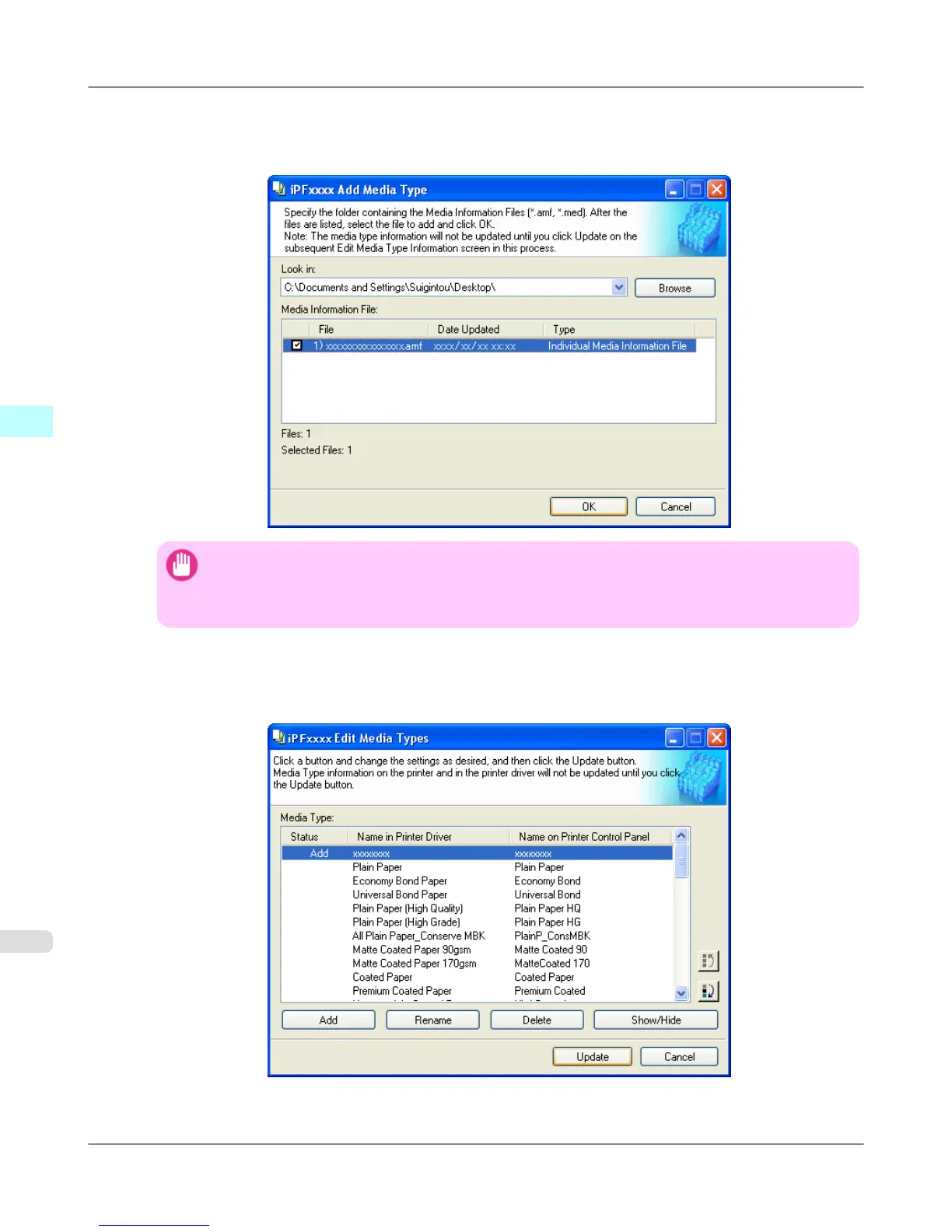

4. The names of media information files in the folder you selected in the Browse for Folder dialog box are displayed

under Media Information File in the Add Media Type dialog box. Select the check boxes of paper to add and click

the OK button.

Important

• If Master Media Information File is displayed as the Type of the Media Information File, the me-

dia type display order and media type display/non-display settings are initialized. Reconfigure these

after added the master media information file.

5. Click OK when the confirmation message is displayed.

6. In the Edit Media Types dialog box, click the Update button.

Windows Software

Media Configuration Tool

Adding Media Types iPF6300S

456
