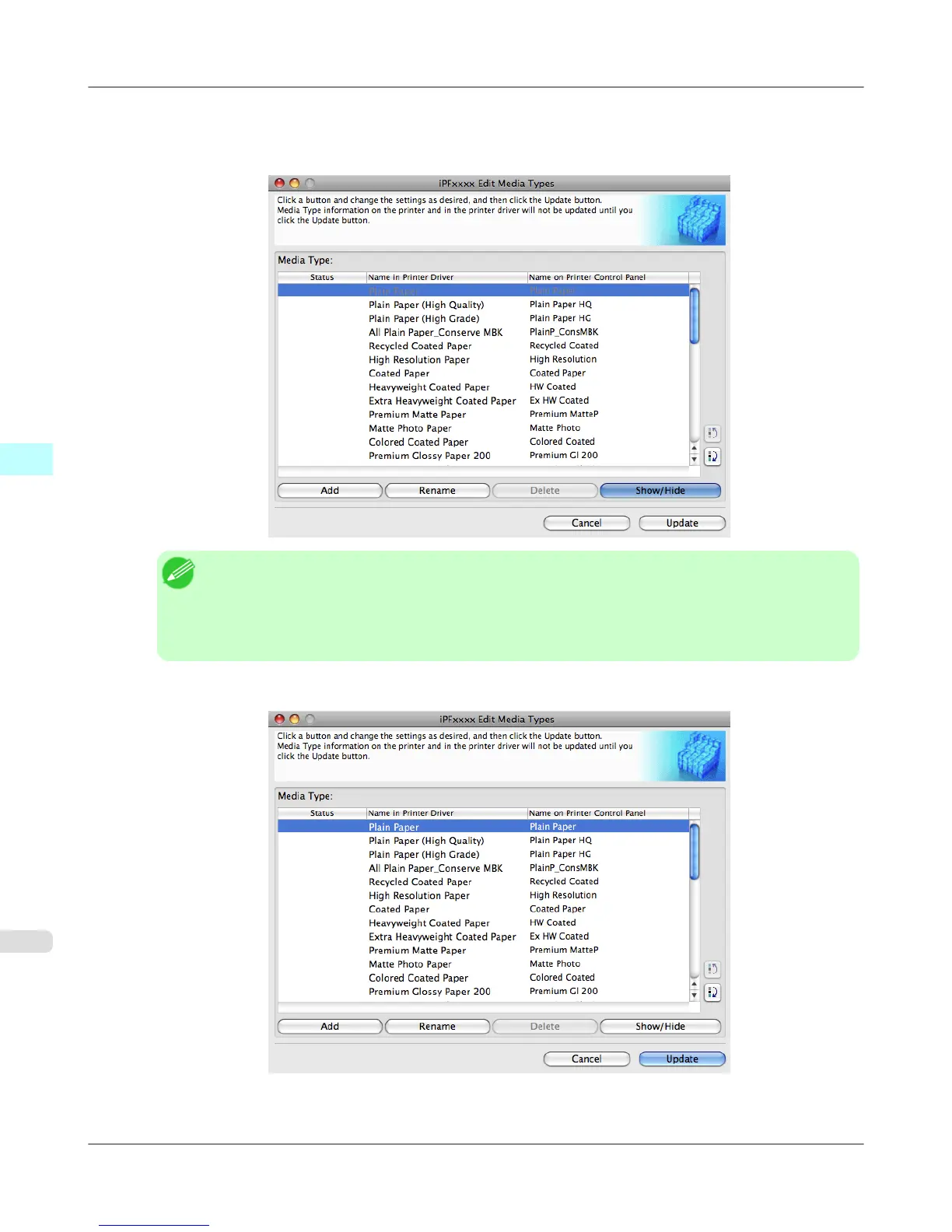

2. In the Media Type list, select the name of the media to switch off or on for display.

Click the Show/Hide button.

The selected paper is alternately shown or hidden.

Note

• The names of media switched for non-display appear grayed out in the Media Type list.

• Each time you click the Show/Hide button, the display mode cycles from showing both the printer

driver and printer panel, to hiding both the printer driver and printer panel, and then to showing only

the printer panel.

3. In the Edit Media Types dialog box, click the Update button.

Mac OS X Software

Media Configuration Tool

Switching Media Types Display Show/Hide iPF6300S

694
