Note

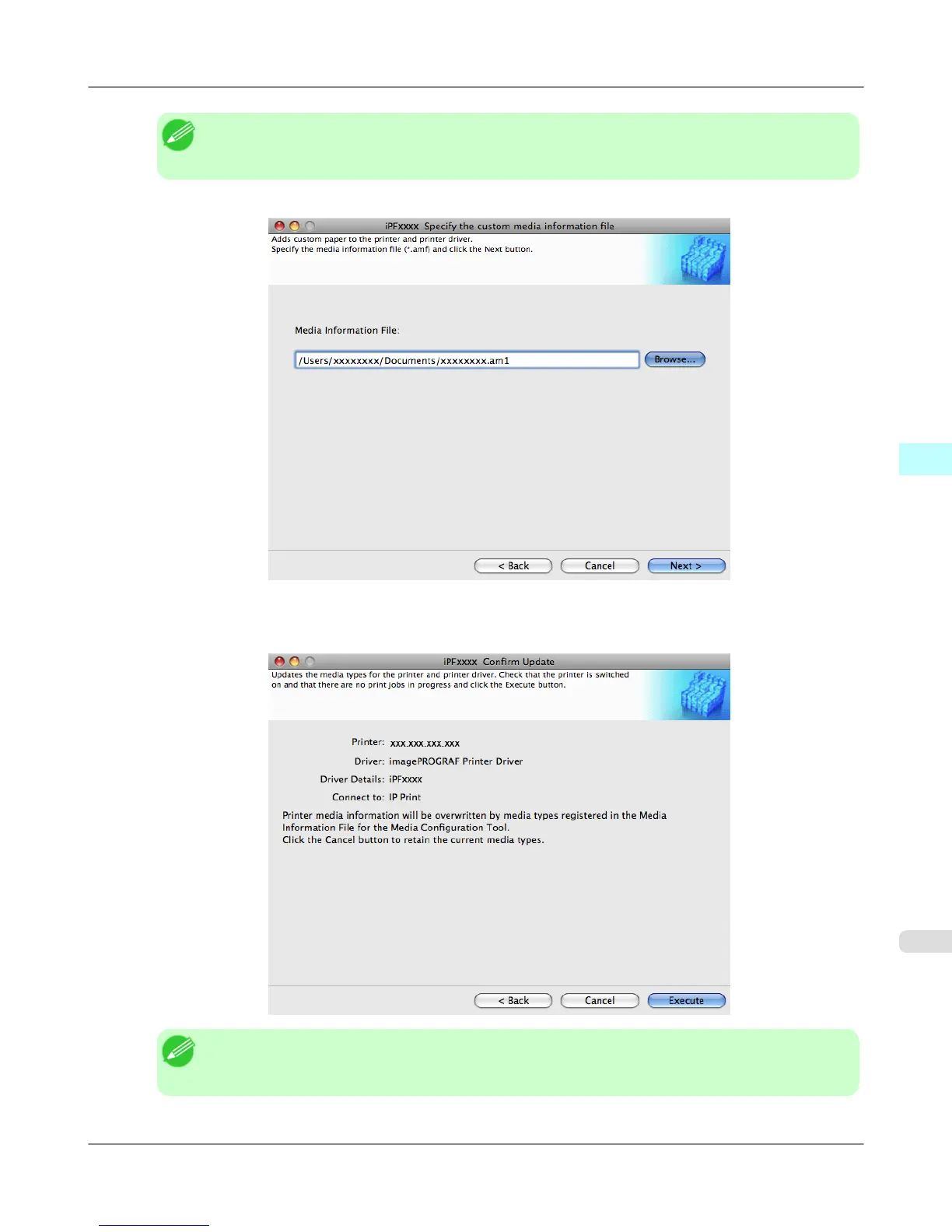

• Double-click Custom Media Information File to start the Media Configuration Tool and display this

screen.

4. Select the Custom Media Information File (.am1 file) to import.

5. The Confirm Update dialog box opens.

Click the Execute button.

Note

• If the authentication screen is displayed, input the administrator name and passowrd and click the OK

button.

Mac OS X Software

Media Configuration Tool

iPF6300S Import Custom Media Information

715
