Case 845B VHP - Swing; Circle Turn Gear Box; Windshield Washer Reservoir (Optional)

CHAPTER 6 – LUBRICATION / FILTERS / FLUIDS
6-40
SWING / CIRCLE TURN GEAR BOX

Circle Turn Gear Housing Rell Capacity .................................................................................... 2,8 liters (0.75 US gal)
Type of oil ............................................................................................................................ See “Fluids and Lubricants”
Oil check interval .................................................................................................................................... each 250 hours
Oil change interval ................................................................................................................................ each 1000 hours
Checking Circle Turn Gear Box Oil
Check each 250 hours

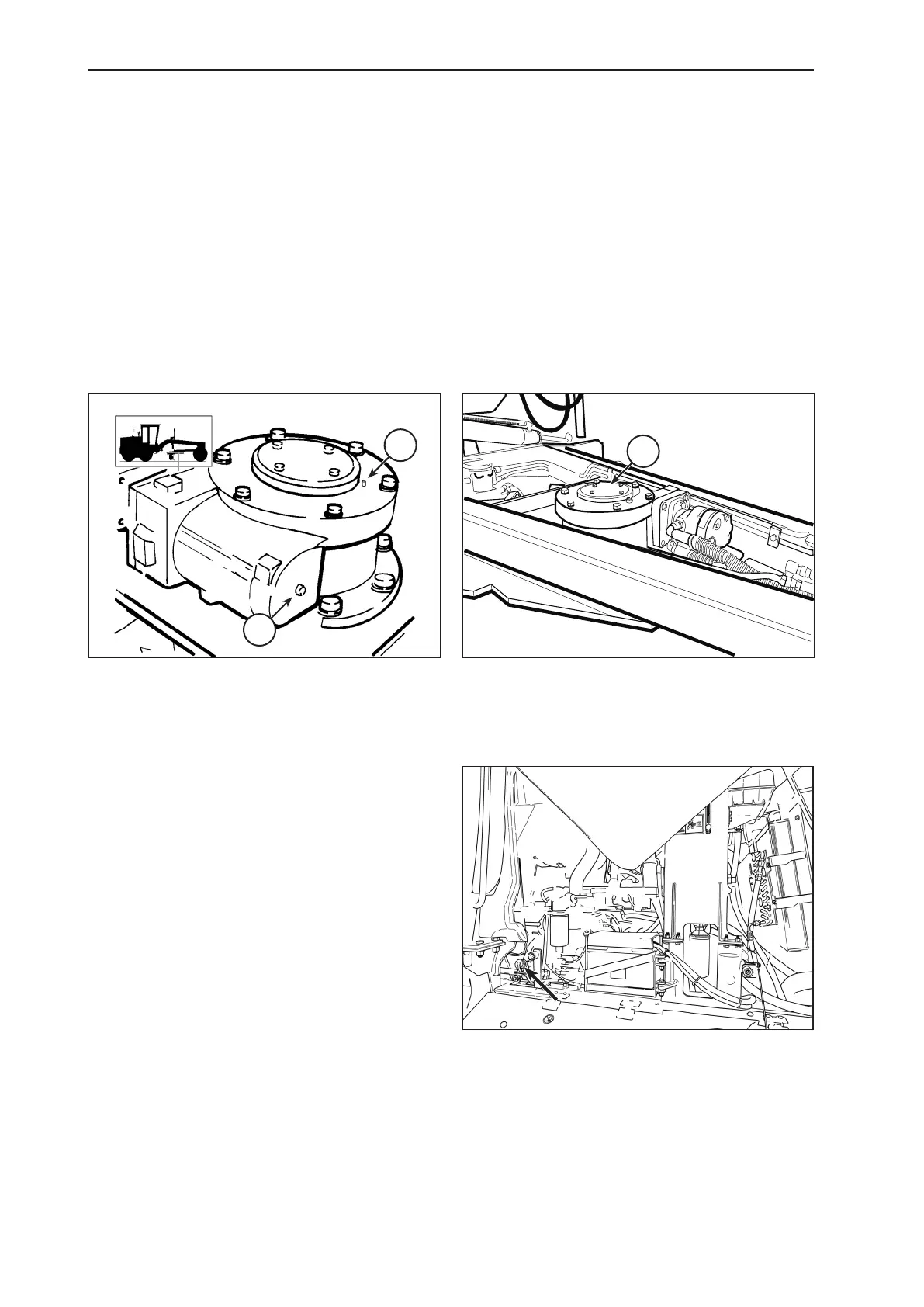

Remove oil level plug “2”. If the oil does not drain from the hole, remove the ller plug “1” and add oil until it comes out
of the level plug hole “2”. Then install level plug and ller plug.
2
1
FILLER PLUG1.
LEVEL PLUG2.
3
CIRCLE TURN GEAR BOX3.
WINDSHIELD WASHER RESERVOIR (OPTIONAL)
The windshield washer reservoir is located on the right
side of the cab, as shown above.
To add washer uid, pull the cap up.
IMPORTANT: When the ambient temperature decreases
to 0°C (32°F) and below, always use an antifreeze type
washer solution, mixture of 50% water and 50% solution.
FILLING NECK OF THE
WINDSHIELD WASHER LIQUID RESERVOIR
