Case 845B VHP - RADIO Wiring Diagram

CHAPTER 8 – ELECTRICAL SYSTEM
8-13

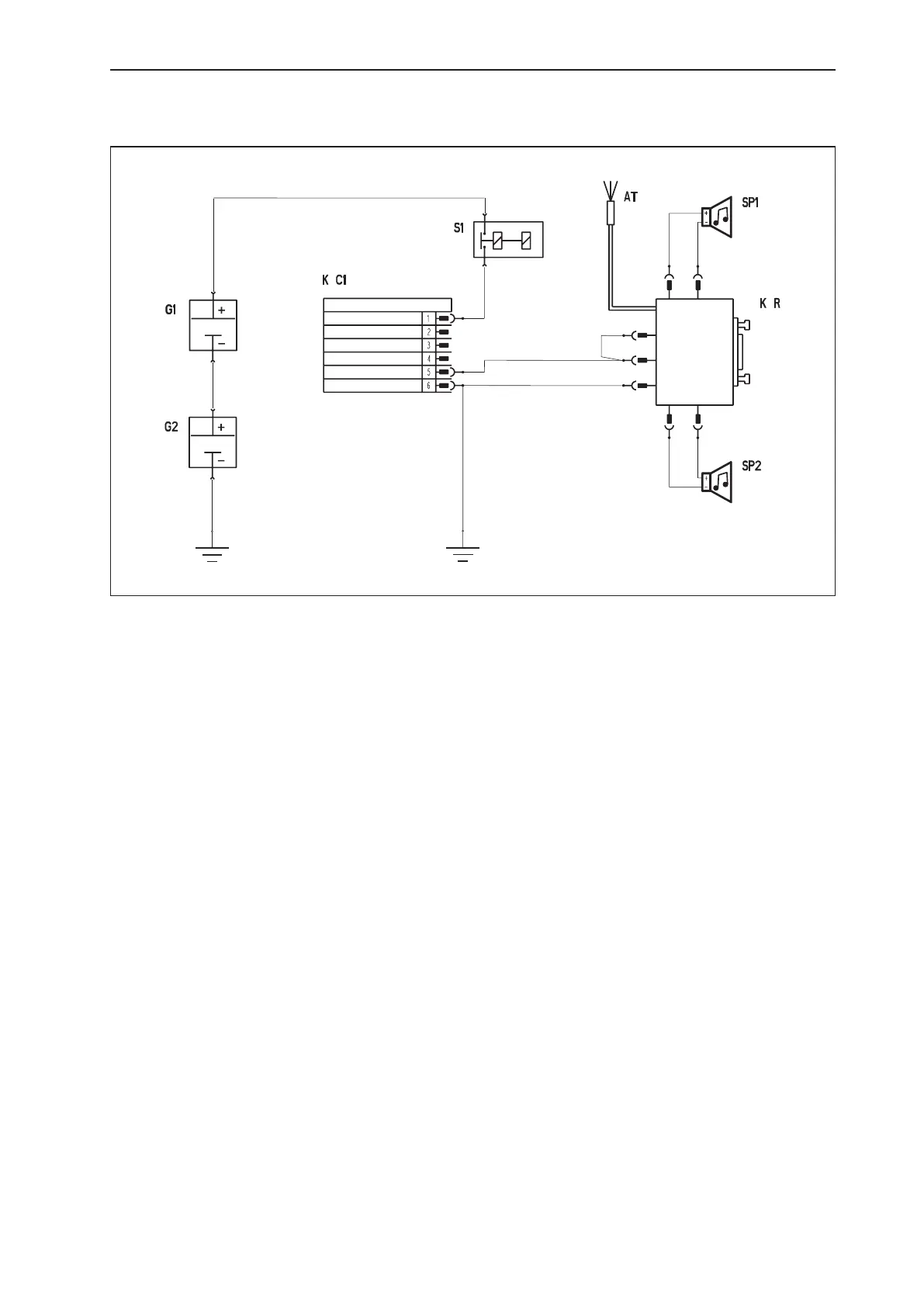

RADIO
The radio supply power is 12V, obtained through a converter that transforms the 24V electric system of the machine.
Radio
IGN
24V to 12V
+ 12 volts
Ground (Optional)
+ 24 volts
BAT
Ground
AT ANTENNA RADIO
G1 BATTERY 12V
G2 BATTERY 12V
K C1 CONVERTER VOLTAGE TO RADIO AND CIGARETTE LIGHTER 24/12 VOLTS
KR RADIO 12 VOLTS
S1 MASTER SWITCH
SP1 SPEAKER LH
SP2 SPEAKER RH
