CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-42
AIR CONDITIONING, HEATING AND AIR
CIRCULATING SYSTEM

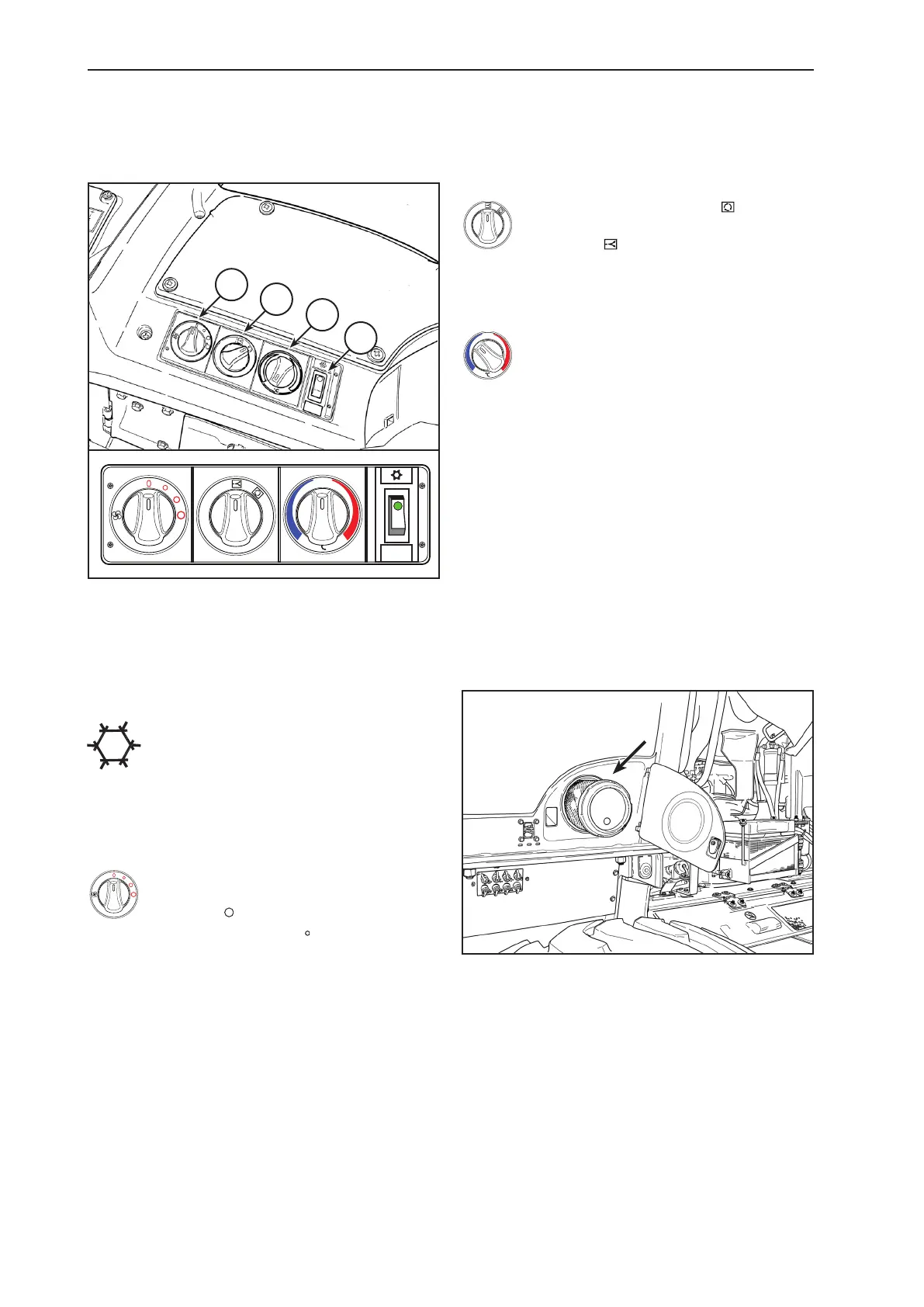

Air Conditioning Control
2
3
4
1
ON / OFF SWITCH (OPTIONAL)1.
VENTILATION SELECTOR (OPTIONAL)2.
RECIRCULATION / FRESH AIR SELECTOR (OPTIONAL)3.
TEMPERATURE CONTROL SELECTOR (OPTIONAL)4.
1. ON / OFF SWITCH (OPTIONAL)
Press this switch and select one of the 3 ven-
tilation speeds in order to activate the air con-
ditioning system. Press again this switch to
turn off the air conditioning system. When the
system is running, a blue light on the switch
will turn on.
VENTILATION SELECTOR (OPTIONAL):2.
The ventilation selector has 4 positions: OFF
and speeds 1, 2 and 3. Turn the selector to
positiono “ ” to obtain maximum speed ven-
tilation and to position “ ” to obtain minimum
speed ventilation. When the selector is turned
to OFF position, the air conditioning system is
turned off automatically
RECIRCULATION / FRESH AIR SELECTOR 3.
(OPTIONAL):
Turn the selector to position “ ” to recircu-
late the air inside the cabin. Turn the selector
to position “ ” to allow the fresh air entrance
inside the cabin
TEMPERATURE CONTROL SELECTOR 4.
(OPTIONAL):
Turn the temperature control selector counter-
clockwise to obtain cold air inside the cabin.
Turn the temperature control selector clock-
wise to obtain hot air inside the cabin. Adjust
the temperature control selector and the ven-
tilation selector to the desired positions, to ob-
tain maximum thermal comfort.
Make sure the heater water input is totally open
when desiring to obtain hot air in the cabin.
Maintenance
The air conditioning and heating system maintenance is
limited to three components:
Evaporation case air lter.a.
Air compressorb.
Condenserc.
EVAPORATION CASE AIR FILTER
The evaporation case air lter cleaning must be perfor-
med whenever necessary or every 250 hours.
